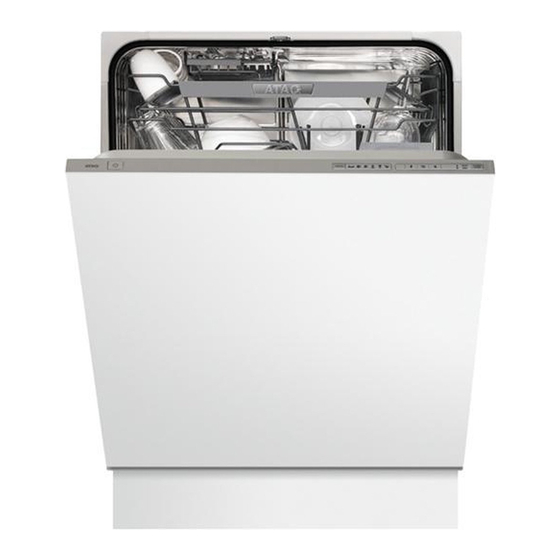

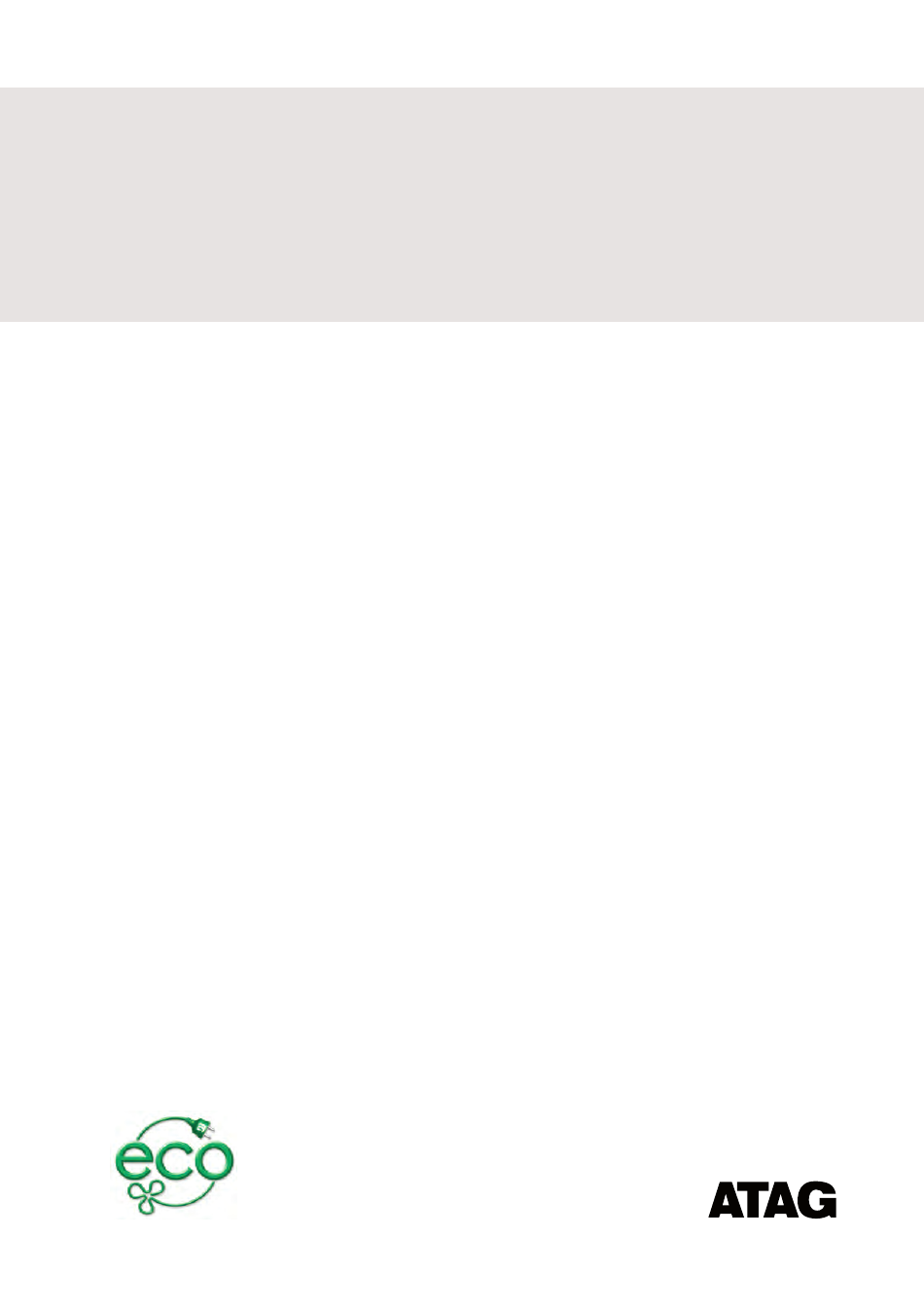

- Page 1 Use & Care Guide Dishwasher ATAG VA9611ST...
-
Page 2: Table Of Contents
Contents Page Before doing your first wash Troubleshooting Safety Performance information Child safety Installation instructions Parts of the dishwasher Service & guarantee Technical information Quick Guide Baskets Control panel Dispenser Basic Course Eco-dishwashing Fragile dishes Program description Status light Cleaning Rinse aid Salt Settings... -
Page 3: Before Doing Your First Wash
Before doing your first wash Read the directions of use Read the directions of use before starting to use your machine, especially the Safety, Child Safety and Basic Course sections. Take care with certain materials Read the section ‘Fragile dishes’ before wash- ing china with unglazed decoration or other household goods made of plastic, wood or crys- tal requiring careful treatment. -
Page 4: Safety
Safety General Overfill protection • Read and keep the directions for use! The overfill protector starts pumping out water • Installation of water, drainage and electricity and closes off the water intake if the machine’s must be carried out by a qualified professional. water level exceeds the normal level. -
Page 5: Child Safety
Child Safety! Child-safe button lock Child-safe dishwashing To prevent children starting the machine, you • Use the knife basket, or knife holder, for all can activate a button lock. long/sharp items. Proceed as follows: 1. Switch off the dishwasher with the main •... -
Page 6: Parts Of The Dishwasher
Parts of the dishwasher* 1. Knife basket 8. Program panel 2. Upper basket 9. Rinse aid dispenser 3. Middle basket 10. Filter 4. Cutlery basket 11. Status light 5. Lower basket 12. Spray arms 6. Main switch 13. Type plate 7. -
Page 7: Baskets
Baskets* Upper basket 1. Wine glass shelf 2. Knife stop 3. Upper spray arm 4. Locking handle for upper basket 5. Catch Raising/lowering the upper basket 1. Pull out the upper basket. 2. Pull out the catches (5) on either side of the upper basket and lower the upper basket at the same time. - Page 8 Baskets* Lower basket Knife basket Cutlery basket Cutlery basket with cover *Details may differ depending on the model and market!
- Page 9 Baskets* Positioning the cutlery basket cover The cover for the cutlery basket can be removed and used, for example, as an extra cutlery basket in the upper basket (see illustrations below). *Details may differ depending on the model and market!
-
Page 10: Control Panel
Control panel 1. Program selector 9. Higher temperature 2. Auto wash 10. Delayed start 3. Heavy wash 11. Extra dry 4. Normal wash 12. Time saver 5. Delicate wash 13. Rinse aid indicator 6. Quick wash 14. Salt indicator 7. Rinse & Hold 15. -
Page 11: Basic Course
Basic Course Do not put cutlery made of different mater ials, Below are step by step instructions to help you achieve the best possible dishwashing results. e.g. silver and stainless steel, in the same com- partment (risk of stains). Check that the spray arms are able to move Load the baskets correctly! freely. - Page 12 Basic Course Press the main power switch Quick wash Select Quick Wash if the dishes are very lightly soiled. This program is used for very lightly soiled glass and china, e.g. coffee Select program cups. Select a program by pressing the program selector one or more times until the required program is displayed.
- Page 13 Basic Course Select options Time saver An option that shortens the program time To select an option, press one of the option ut- tons. but uses more water and energy to clean the dishes. Can be used with Heavy Wash and Normal Wash.
- Page 14 Basic Course Press Start/Stop After dishwashing The dishwasher will now start. It manages the Once the machine has finished, it only draws entire wash automatically. Ensure that the door standby current. Turn off the water faucet if the is properly closed or the machine will not start. machine is not to be used for an extended pe- riod, such as during vacations, for example.
-
Page 15: Eco-Dishwashing
Eco-dishwashing Only wash with a full load Waiting to run the wash until the machine is full saves energy. Wash at a lower temperature If the load is only lightly soiled, you can lower the temperature. Select program with Eco drying To save energy, select Economy dry. -
Page 16: Fragile Dishes
Fragile dishes Aluminium A number of household goods are not suitable for machine washing. There can be many rea- Aluminium can be dulled by machine washing. sons for this. Certain materials cannot withstand However, good quality aluminium saucepans intense heat, others can be damaged by the can be machine washed, although a reduction in dishwasher detergent. -
Page 17: Program Description
Program Description Programs Auto Heavy Normal Delicate Quick Rinse & Hold Options Prewashes with SCS* Mainwash *** 55-65°C 55°C 65°C 50°C 60°C Number of 2-3, 1 rinse rinses Last rinse Last Last Last Last 60°C rinse 60°C rinse 70°C rinse 50°C rinse 60°C Consumption values 1. -
Page 18: Status Light
Status light The status light at the bottom on the machine provides information by means of 3 different colours. Indications Indications Blue - indicates that the program has started and it is still possible to load more dishes - indicates that there is detergent in the machine and it is not recommended to load more dishes (risk of poor dishwashing result) Flashing Red... -
Page 19: Cleaning
Cleaning The dishwasher tub is made of stainless steel and is kept clean through normal use.However, if you have hard water, limescale deposits may form in the machine. If this happens, run a normal wash program with two tablespoons of citric acid in the dishwasher detergent compartment. - Page 20 Cleaning Drain pump NOTE! Do not forget to reinstall the fitted piece. The pump can be accessed from inside the machine. 1. Cut the power to the machine by pulling out the plug! 2. Remove the coarse filter and pipe section. 3.
- Page 21 Cleaning To release the upper spray arm, the upper bas- Fit the cover securely if you are not using the ket must be removed. middle basket. 1. Pull out the basket. 2. Remove the upper spray arm by unscrewing Cover it counter-clockwise from the basket and clean it.
-
Page 22: Rinse Aid
Rinse aid Pour in rinse aid Select dosage Rinse aid, helps quicken the drying process. The dispenser is usually set at 1= soft water. However, depending on the water hardness, it Machines with indicator on the may be necessary to change the dosage. panel Open the rinse aid cover . -
Page 23: Salt
Salt Add salt Before using a dishwasher with a water soft- ening filter, you must fill the salt compartment with salt. Use coarse salt or special salt for dishwashers. It is best to fill with salt when you are about to do a wash, as the dishwasher needs to be rinsed out immediately after filling. -
Page 24: Settings
Settings Reprogramming Some of the machine’s functions can be reprogrammed. You get into the machine’s change program using the machine’s ordinary buttons as per the instructions below. The selection will be retained until the next time you reset this function. Even if the machine is turned off at the main switch or loses power for any other reason, all selections registered before the interruption of power will be retained. - Page 25 Settings Setting a signal If you want the machine to signal when the wash is complete, you can program it to do this. The machine is set without a signal by default. Switch off the dishwasher at the main switch. Hold in the Delayed start button at the same time as you press the main switch.
- Page 26 Settings Super rinse Super rinse means that two extra rinses will be addes at the end of the main dish. Cannot be used in the Quick wash and Rinse & Hold programs. Switch off the dishwasher with the main switch. Hold in the Time server button while pressing the main switch.
- Page 27 Settings Setting water hardness If you have a dishwasher with a water softener, you may need to change the setting, depending on the degree of hardness of the water. Phone your local Water Board to check the water hard- ness in your area. The dishwasher is set for low water hardness on delivery. Switch off the dishwasher with the main switch.
-
Page 28: Fault Indications
Fault indications Display Type of fault Action flashes Too much water Phone service in the dishwasher flashes Fault with water inlet Check that the water tap is open flashes Valve leakage Shut off the water tap and contact service flashes Blocked drain See ‘Possible causes’... -
Page 29: Troubleshooting
Troubleshooting Problems Possible causes Action The dishes are not clean • Lift off the arms and clean. • The spray arms are not rotat- ing. • Avoid large packs. • Old dishwasher detergent. NB! Detergent is a perishable. • Dispense according to the •... - Page 30 Troubleshooting Problems Possible causes Action Stains on stainless steel • Certain food remnants such • Rinse off food residue of this or silver as mustard, mayonnaise, type if you do not intend to lemon, vinegar, salt and start the dishwasher immedi- dressings can cause stains ately.
- Page 31 Troubleshooting Problems Possible causes Action Water remains in the • Obstruction in the drain hose. • Disconnect the drain hose where it is connected to the machine sink’s water trap. Check that no debris has become stuck. Is the cone-shaped part of the pipe cut so that the diameter is at least 16 mm? •...
-
Page 32: Performance Information
Performance information Test dosage Normal wash Main wash 5+25 gram Standard detergent. Rinse aid dosage 3. Energy labelling Europa: EN50242 Dishwasher program: Normal wash, 55°C, Economy drying. Program time: 2:50 hours:minutesr Connection: Cold water Test method noise measurement: IEC-704-3 Loading of performance test minced spinach meat... - Page 33 Performance information Utensil baskets EN50242 Technical data Height 860-910 mm Width 596 mm Depth 550 mm Weight 48 kg/51 kg Capacity* 12 place settings Water pressure 0.03-1.0 MPa (0.3–10 kp/cm Connection 1-phase, 230 V, 50Hz 10/10A** 1600 W** *In accordance with standard, EN 50242 **See type plate.
-
Page 34: Installation Instructions
Installation SAFETY INSTRUCTIONS: BEFORE STARTING THE INSTALLATION: 1. It is important that you closely follow the 1. Connection to water supply: instructions provided here. • There must be a shut off valve on the water 2. An incorrect or defective installation can lead supply pipe. - Page 35 Installation DRAINAGE WATER CONNECTION Connect drain hose Connect water supply hose ConnecUse the supplied O ring and tighten The drain hose runs to an inlet plug on the ink the connection by hand plus a quarter turn unit’s water trap. with a wrench.
- Page 36 Installation Adjustment of Status light...
-
Page 37: Service & Guarantee
Service & guarantee Service Guarantee Before calling for service, check to see whether For guarantee details, see the guarantee card. the faults is due to something that you can rec- tify yourself. See Trouble shooting. - Page 38 Own comments...
- Page 39 Own comments...
-
Page 40: Quick Guide
Quick Guide 1. Loading baskets Scrape off large food particleas before loading the machine. 2. Dispensing dishwasher detergent The detergent compartment has a small compartment for pre-wash and one for main wash. 3. Ensure that the spray arms can rotate freely 4.
