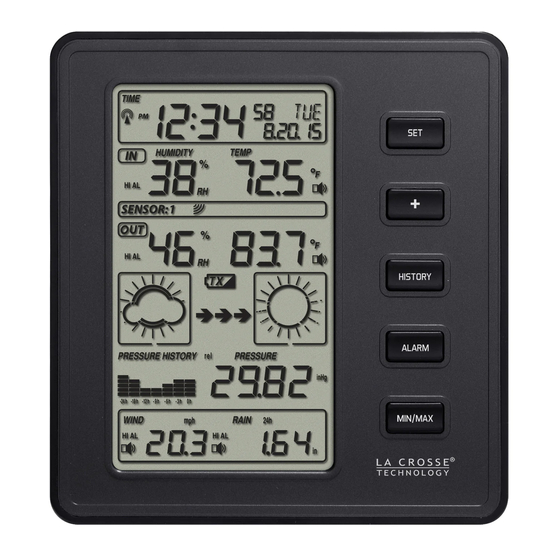

- Page 1 Model: 308-2316 Quick Setup Guide DC: 070716 PROFESSIONAL WEATHER STATION Weather Station Battery Cover Stand Model: 308-2316 www.lacrossetechnology.com/support Page | 1...
- Page 2 Wind Speed Sensor TX231W Showerproof casing for Thermo-Hygro sensor Rain Sensor TX231R Pole (NOT INCLUDED) Thermo-Hygro TX231TH Connection Ports Battery Cover U-Bolts (Included) Get Started Model: 308-2316 www.lacrossetechnology.com/support Page | 2...
- Page 3 Sensor Assembly and Placement The Wind speed/ Thermo-hygro sensor and the rain sensor may be mounted on a pole (not included) with the U-bolts (included) or mounted on a flat surface. Mount on a Pole: Model: 308-2316 www.lacrossetechnology.com/support Page | 3...
- Page 4 2. Avoid obstructions that will block wind and rain. Allow a 50 foot clearance or more from tall buildings, trees etc. When the sensors are installed next to a tall building, the wind and rain will not be accurate. Model: 308-2316 www.lacrossetechnology.com/support Page | 4...
- Page 5 14. Wind speed units (km/h, mph, m/s, knots, bft) 15. Rainfall units (mm or inch) Press the HISTORY button to exit, or wait 30 seconds without pressing buttons to return to the normal time display. Display Modes Model: 308-2316 www.lacrossetechnology.com/support Page | 5...
- Page 6 11. Hold the SET button for 3 seconds to reset all current rain readings to 0.00. Note: The MIN/MAX rainfall readings with time and date stamp will not be affected by the rain reset. Model: 308-2316 www.lacrossetechnology.com/support Page | 6...
- Page 7 3. With alarm value flashing, press the ALARM button to activate or deactivate individual alarms. 4. When active (ON) the alarm icon will show. 5. When the alarm is inactive (OFF) the alarm icon will not show. When an alarm sounds and flashes: Model: 308-2316 www.lacrossetechnology.com/support Page | 7...
- Page 8 • Dew point temperature maximum • Pressure maximum • Wind speed maximum • Gust speed maximum • 1 Hour rain maximum • 24 hour rain maximum • Week rainfall maximum • Month rainfall maximum Model: 308-2316 www.lacrossetechnology.com/support Page | 8...
- Page 9 3 hours. This warning is always active so you need to set the threshold to the highest number (9) if you do not want it to flash regularly (no sound). Model: 308-2316 www.lacrossetechnology.com/support Page | 9...
- Page 10 • The specs of this product may change without prior notice. • Improper use or unauthorized opening of housing voids warranty. • If the product is not working properly, change the batteries. Specifications Model: 308-2316 www.lacrossetechnology.com/support Page | 10...
- Page 11 (93.7 x 150.3 x 60 mm) Rain Sensor: Warranty and Support Information La Crosse Technology, Ltd. provides a 1-year limited time warranty (from date of purchase) on this product relating to manufacturing defects in materials & workmanship. View full warranty details online at: www.lacrossetechnology.com/warranty_info.pdf...
-
Page 12: Fcc Statement
For warranty work, technical support or other information contact: La Crosse Technology, Ltd 2830 South 26 La Crosse, WI 54601 Contact Support: Online Product Support: 608-782-1610 www.lacrossetechnology.com/support Product Registration: www.lacrossetechnology.com/support/register Protected under U.S. Patents: 5,978,738 | 6,076,044 | RE43903 FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
