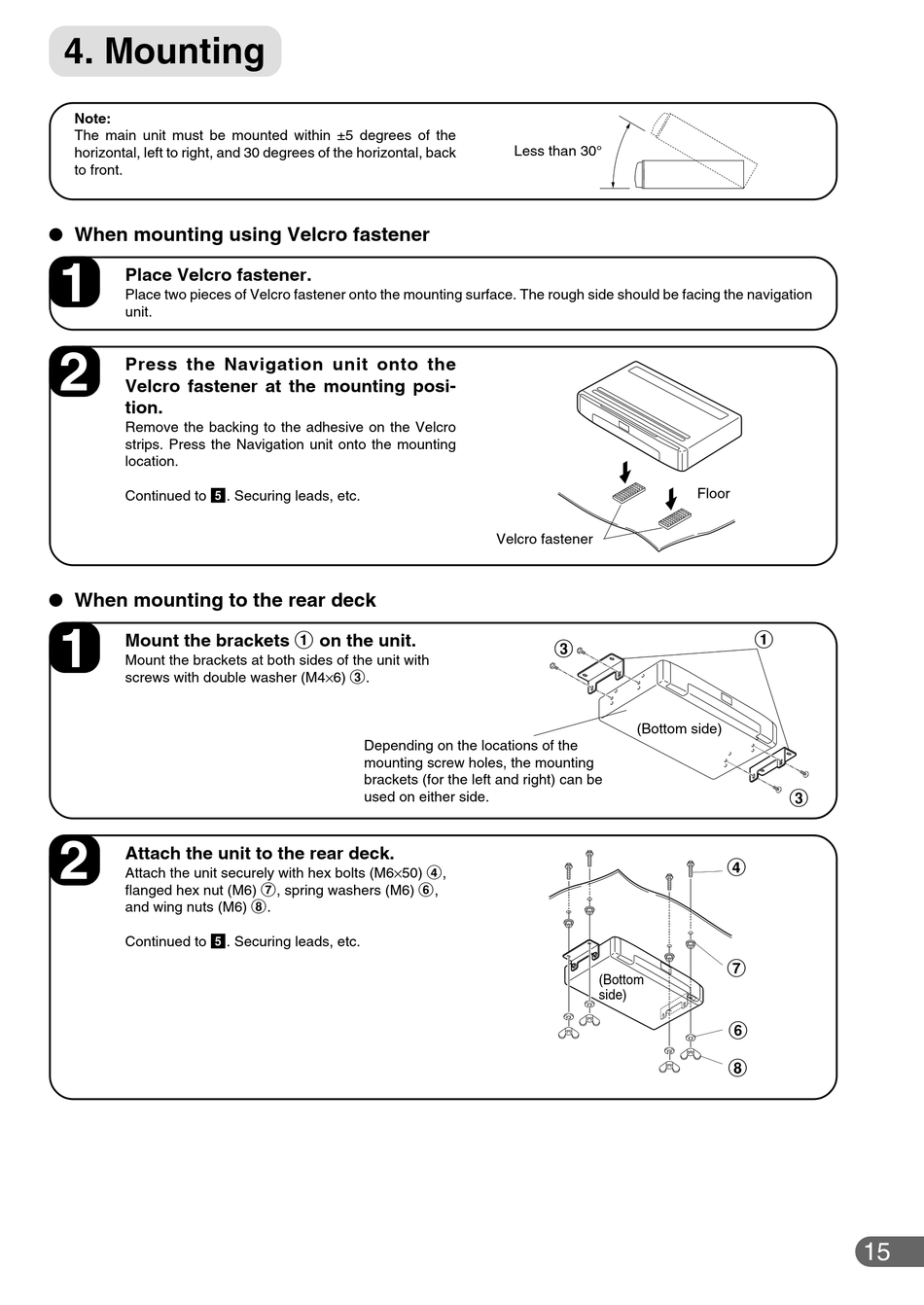

4. Mounting

Note:
The main unit must be mounted within ±5 degrees of the
horizontal, left to right, and 30 degrees of the horizontal, back
to front.
a When mounting using Velcro fastener
1
Place Velcro fastener.
Place two pieces of Velcro fastener onto the mounting surface. The rough side should be facing the navigation
unit.
2
Press the Navigation unit onto the
Velcro fastener at the mounting posi-
tion.
Remove the backing to the adhesive on the Velcro
strips. Press the Navigation unit onto the mounting
location.
Continued to 5. Securing leads, etc.
a When mounting to the rear deck
1
Mount the brackets 1 on the unit.
Mount the brackets at both sides of the unit with
screws with double washer (M4×6) 3.
2
Attach the unit to the rear deck.
Attach the unit securely with hex bolts (M6×50) 4,
flanged hex nut (M6) 7, spring washers (M6) 6,
and wing nuts (M6) 8.
Continued to 5. Securing leads, etc.
Less than 30°
Velcro fastener
Depending on the locations of the
mounting screw holes, the mounting
brackets (for the left and right) can be
used on either side.
Floor
3
(Bottom side)
4
7
(Bottom
side)
6
8
1
3
