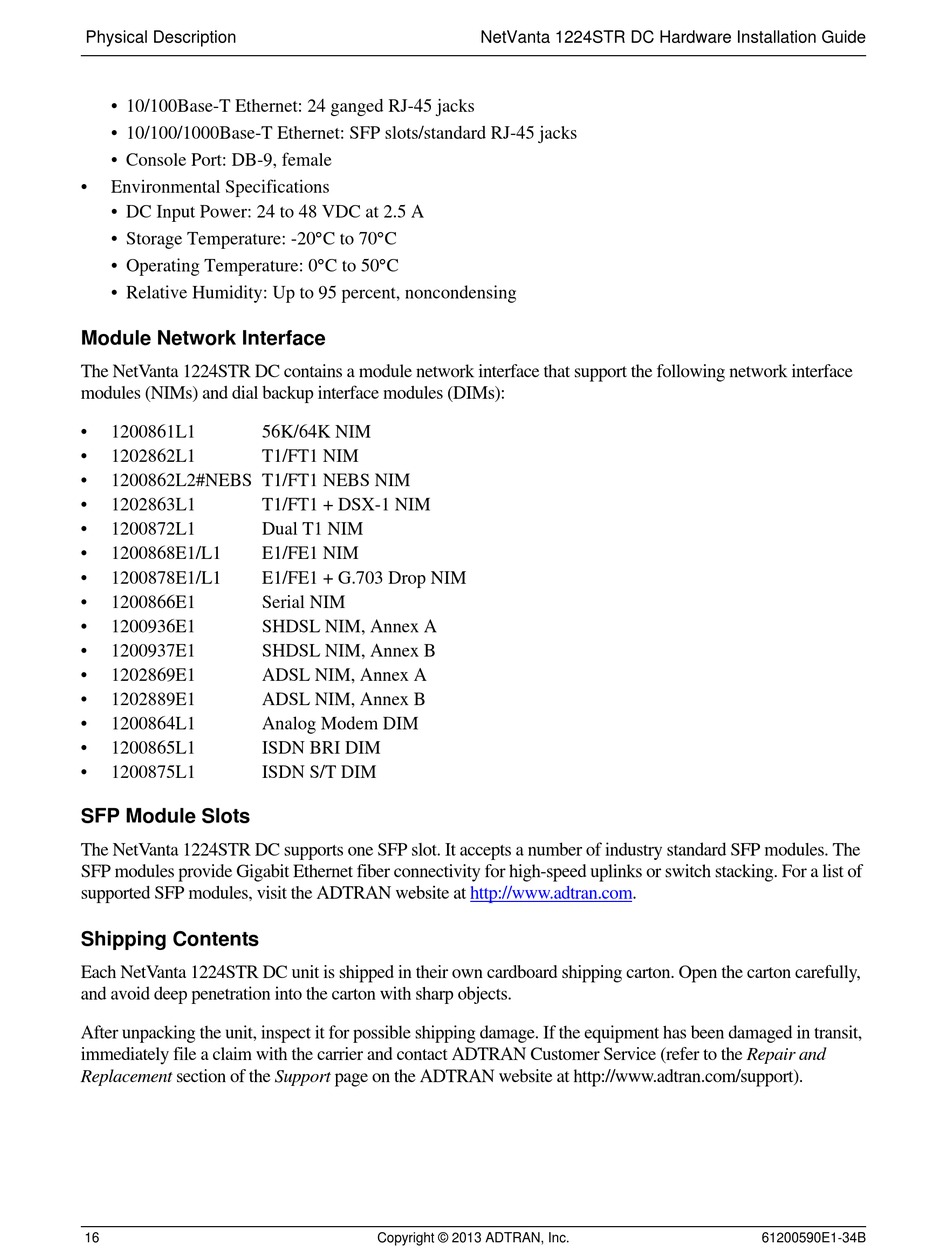

Physical Description
• 10/100Base-T Ethernet: 24 ganged RJ-45 jacks
• 10/100/1000Base-T Ethernet: SFP slots/standard RJ-45 jacks
• Console Port: DB-9, female
• Environmental Specifications
• DC Input Power: 24 to 48 VDC at 2.5 A
• Storage Temperature: -20C to 70C
• Operating Temperature: 0C to 50C
• Relative Humidity: Up to 95 percent, noncondensing

Module Network Interface

The NetVanta 1224STR DC contains a module network interface that support the following network interface
modules (NIMs) and dial backup interface modules (DIMs):
• 1200861L1
• 1202862L1
• 1200862L2#NEBS T1/FT1 NEBS NIM
• 1202863L1
• 1200872L1
• 1200868E1/L1
• 1200878E1/L1
• 1200866E1
• 1200936E1
• 1200937E1
• 1202869E1
• 1202889E1
• 1200864L1
• 1200865L1
• 1200875L1

SFP Module Slots

The NetVanta 1224STR DC supports one SFP slot. It accepts a number of industry standard SFP modules. The
SFP modules provide Gigabit Ethernet fiber connectivity for high-speed uplinks or switch stacking. For a list of
supported SFP modules, visit the ADTRAN website at http://www.adtran.com.

Shipping Contents

Each NetVanta 1224STR DC unit is shipped in their own cardboard shipping carton. Open the carton carefully,
and avoid deep penetration into the carton with sharp objects.
After unpacking the unit, inspect it for possible shipping damage. If the equipment has been damaged in transit,
immediately file a claim with the carrier and contact ADTRAN Customer Service (refer to the Repair and
Replacement section of the Support page on the ADTRAN website at http://www.adtran.com/support).
16
56K/64K NIM
T1/FT1 NIM
T1/FT1 + DSX-1 NIM
Dual T1 NIM
E1/FE1 NIM
E1/FE1 + G.703 Drop NIM
Serial NIM
SHDSL NIM, Annex A
SHDSL NIM, Annex B
ADSL NIM, Annex A
ADSL NIM, Annex B
Analog Modem DIM
ISDN BRI DIM
ISDN S/T DIM
