On the side panel
TV side panel
Connecting the mains plug

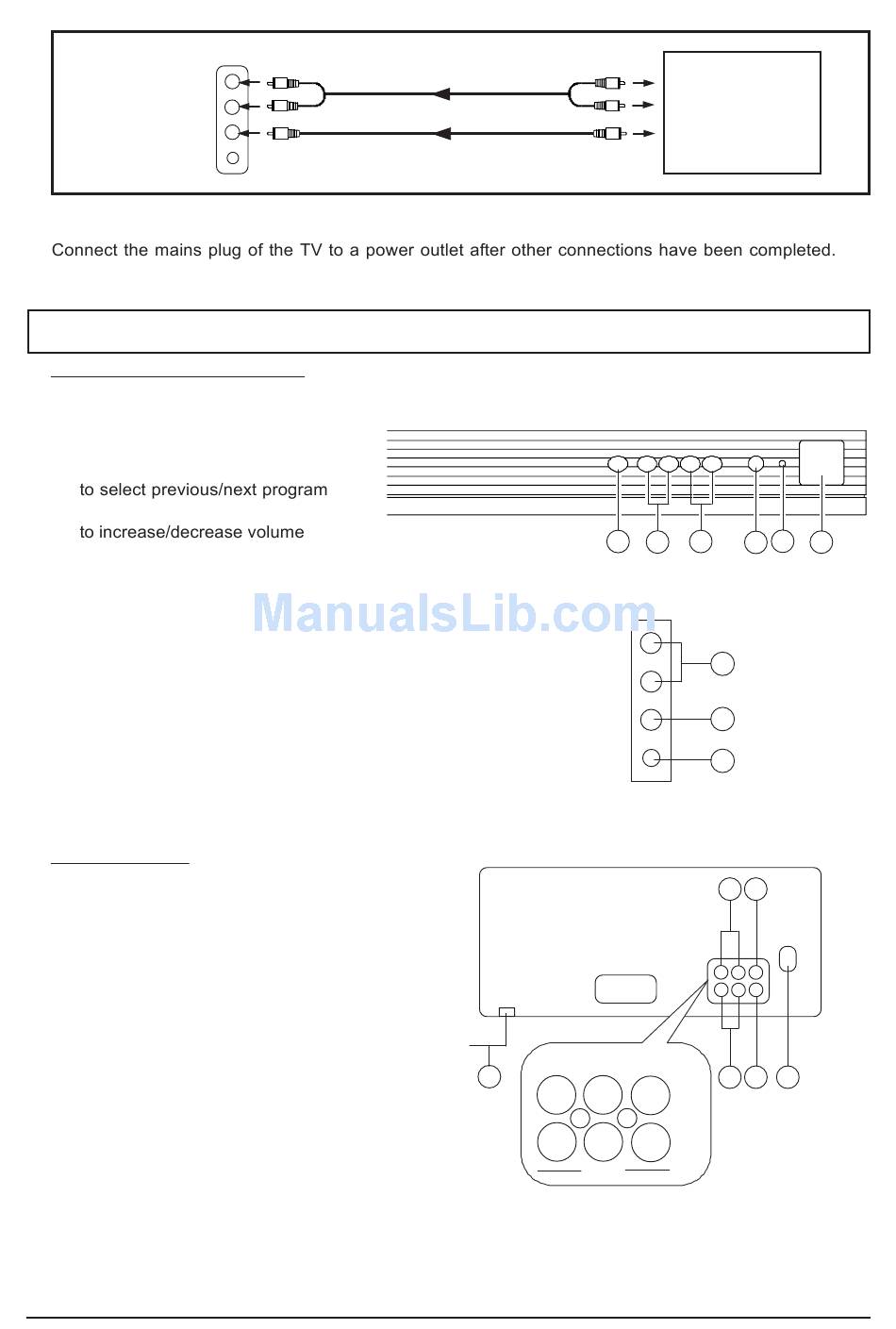

Parts identification
TV front and side panels
1. Power button
2. Power indicator
3. Remote control sensor
4. Program buttons
5. Volume controls
6. MENU(MENU/OK) button
7. AUDIO input jacks (AV2)
8. VIDEO input jack (AV2)
9. Headphones jack
TV rear panel
1. AC line
2. AUDIO input jacks (AV1)
3. VIDEO input jack (AV1)
4. Antenna jack
5. VIDEO output jack
6. AUDIO output jacks
Note:
The shape and silk of the front and rear panels
may vary according to the styles of the models.
However, the functions remain the same.
To audio input
To video input
To audio output
To video output
TV front panel
$
TV side panel
R-AUDIO-L
1
A V1
- 6 -
Handy camera,
Game device
etc.
"
#
!
%
&
'
6
5
VIDEO
2
3
4
OUT
IN
