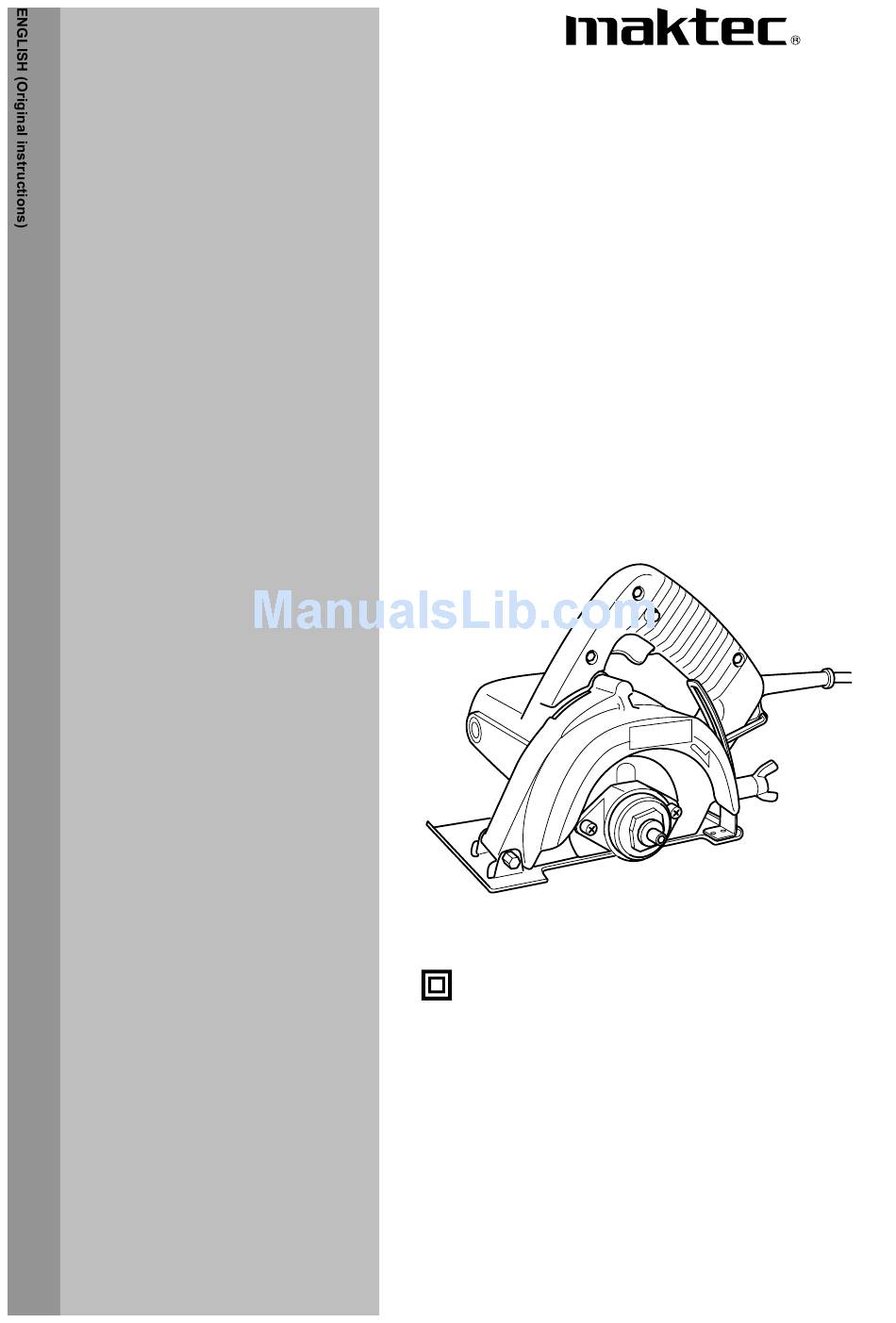

- Page 1 INSTRUCTION MANUAL Cutter MT410 001671 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MT410 Blade diameter 110 mm Hole diameter 20 mm Max. cutting capacity 32 mm No load speed (min 13,000 Overall length 226 mm Net weight 3.0 kg Safety class • Due to our continuing program of research and development, the specifications herein are subject to change without notice. - Page 3 If operating a power tool in a damp location is preventive safety measures reduce the risk of unavoidable, use a residual current device starting the power tool accidentally. (RCD) protected supply. Use of an RCD reduces 21. Store idle power tools out of the reach of the risk of electric shock.
- Page 4 Always use undamaged wheel flanges that are 14. Do not run the power tool while carrying it at of correct diameter for your selected wheel. your side. Accidental contact with the spinning Proper wheel flanges support the wheel thus wheel could snag your clothing, pulling the wheel reducing the possibility of wheel breakage.
- Page 5 Do not "jam" the wheel or apply excessive OPERATING INSTRUCTIONS pressure. attempt make excessive depth of cut. Overstressing the wheel Removing or installing diamond wheel increases the loading and susceptibility to twisting (optional accessory) or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
- Page 6 Adjusting depth of cut Sighting 1. Wing bolt 2. Base 001672 001674 Loosen the wing bolt on the depth guide and move the Align the edge of the front of the base with your cutting base up or down. At the desired depth of cut, secure the line on the workpiece.
- Page 7 your speed of advance uniform. To maintain product safety and reliability, repairs, maintenance or adjustment should be carried out by an CAUTION: Makita Authorized Service Center. This tool should only be used on horizontal surfaces. • Be sure to move the tool forward in a straight line •...
- Page 8 Makita Corporation www.makita.com 884432G7...
