The installation, use and maintenance Manual (hereinafter Manual) provides the user with information
necessary for correct and safe use of the machine (hereinafter "machine", "refrigerator" or "appliance").
The following must not be considered a long and exacting list of warnings, but rather a set of instructions suitable
for improving machine performance in every respect and, above all, preventing injury to persons and animals
and damage to property due to improper operating procedures.
All persons involved in machine transport, installation, commissioning, use and maintenance, repair and disassembly must
consult and carefully read this manual before carrying out the various operations, in order to avoid wrong and improper
actions that could compromise the machine's integrity or endanger persons. Make sure to periodically inform the appliance
user regarding the safety regulations. It is also important to instruct and update personnel authorised to operate on the
machine, regarding its use and maintenance.
The manual must be available to operators and carefully kept in the place where the machine is used, so that it is always
at hand for consultation in case of doubts or whenever required.
If, after reading this manual, there are still doubts regarding machine use, do not hesitate to contact the Manufacturer or
the authorised after-sales service centre, to receive prompt and precise assistance for better operation and maximum
efficiency of the machine.
During all stages of machine use, always respect the current regulations on safety, work hygiene and environmental
protection. It is the user's responsibility to make sure the machine is started and operated only in optimum conditions of
safety for persons, animals and property.
The manufacturer declines any liability for operations carried out on the appliance without respecting the
instructions given in this manual.
No part of this manual may be reproduced.
Foreword
28
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

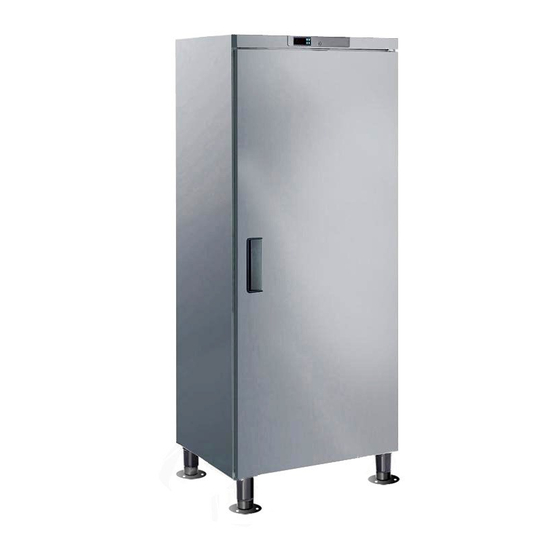

Related Manuals for Electrolux R04PVF4M
Summary of Contents for Electrolux R04PVF4M
- Page 1 Foreword The installation, use and maintenance Manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the machine (hereinafter “machine”, “refrigerator” or “appliance”). The following must not be considered a long and exacting list of warnings, but rather a set of instructions suitable for improving machine performance in every respect and, above all, preventing injury to persons and animals and damage to property due to improper operating procedures.
-
Page 2: General Information
IP21 and recognise and prevent any risks. His professionalism covers the mechanical, electrotechnical and electronics fields. Electrolux Professional SPA - Viale Treviso, 15 - 33170 Pordenone (Italy) Danger The dataplate gives the product identification and technical source of possible injury or harm to health. -
Page 3: Personal Protection Equipment
Electrolux Professional SPA declines any liability for any F.Mod. ……………………………factory description of product inaccuracies contained in the manual, if due to printing or Comm.Model ……………………... -
Page 4: Technical Data
Freezer models with fully insulated door A.2 TECHNICAL DATA Consumption kwh/24h 9.71 Temp. range in compartment °C -24/-15 A.2.1 MATERIALS AND FLUIDS USED Room temperature °C The areas in contact with the product are in non-toxic plastic Evaporating grilles (*) mm: 600x400 material for the ventilated models;... -
Page 5: Transport, Handling And Storage
• for refrigerated models with glass door ATTENTION! CLIMATIC CLASS: 4 For machine lifting, do not use movable or weak 32°C (EN 60335-2-89) parts such as: casings, electrical raceways, 30°C room temperature with 55% relative humidity (EN ISO pneumatic parts, etc. 23953). -
Page 6: Operation
B.2.3 POSITIONING ATTENTION! Install the appliance, taking all the safety precautions required When making the electrical connection, carefully for this type of operation, also respecting the relevant fire- comply with that specified on the dataplate. prevention instructions. Install the appliance in a ventilated place, away from heat The appliance works on a 230V 50Hz single-phase voltage sources such as radiators or air conditioning systems, to allow power supply. - Page 7 temperature when switched on, the appliance is already on. If - Icon indicates that a temperature alarm has occurred during appliance operation. - Icon indicates that a service alarm has occurred during “OFF” is displayed, press the button for a appliance operation.
-
Page 8: General Safety Rules
C.1.8 SWITCHING ON AND TEMPERATURE ADJUSTMENT - wait for the compartment temperature to reach that required FOR “WINE-LINE” MODELS (according to the setting); This type of appliance provides for 5 temperature areas - put back the load previously removed. designed for preserving various types of wine. This solution allows the wine to be kept for a long time and served at an C.1.11 LOADING THE PRODUCT optimum temperature. - Page 9 C.2.3 SAFETY SIGNS TO BE PLACED ON THE MACHINE C.2.6 REASONABLY FORESEEABLE IMPROPER USE Improper use is any use different from that specified in this OR NEAR ITS AREA manual. During machine operation, other types of work or activities deemed improper and that in general can involve risks for the safety of operators and damage to the appliance PROHIBITION MEANING...
-
Page 10: Normal Machine Use
carried out on the appliance without respecting these C.3 NORMAL MACHINE USE instructions. C.3.1 CHARACTERISTICS OF PERSONNEL TRAINED FOR D.1.1.2 Cleaning the cabinet and accessories NORMAL MACHINE USE Disconnect the power supply before cleaning the appliance. The Customer must make sure the personnel for normal Before using the appliance, clean all the inside parts and machine use are adequately trained and skilled in their duties, accessories with lukewarm water and neutral soap or products... - Page 11 ATTENTION: The condenser is located on the back, behind the D.1.2.6 Reversing opening of models with glass door and cabinet. “Wine-line” models The condenser must be cleaned periodically to ensure the The cabinets are normally supplied with right hinging. To efficient operation of the appliance and its continued high reverse opening, carry out as follows: performance over time.
-
Page 12: Maintenance Intervals
D.1.3 MAINTENANCE INTERVALS D.1.4 DISASSEMBLY The inspection and maintenance intervals depend on the If the appliance has to be disassembled and then reassembled, actual machine operation conditions and ambient conditions make sure the various parts are assembled in the correct order (presence of dust, damp, etc.), therefore precise time intervals (if necessary mark them during disassembly). -
Page 13: Machine Disposal
D.2 MACHINE DISPOSAL ATTENTION! DISMANTLING OPERATIONS MUST BE CARRIED OUT BY QUALIFIED PERSONNEL. ATTENTION! WORK ON THE ELECTRICAL EQUIPMENT MUST ONLY BE CARRIED OUT BY A QUALIFIED ELECTRICIAN, WITH THE POWER SUPPLY DISCONNECTED. D.2.1 WASTE STORAGE At the end of the product’s life-cycle, make sure it is not dispersed in the environment.
