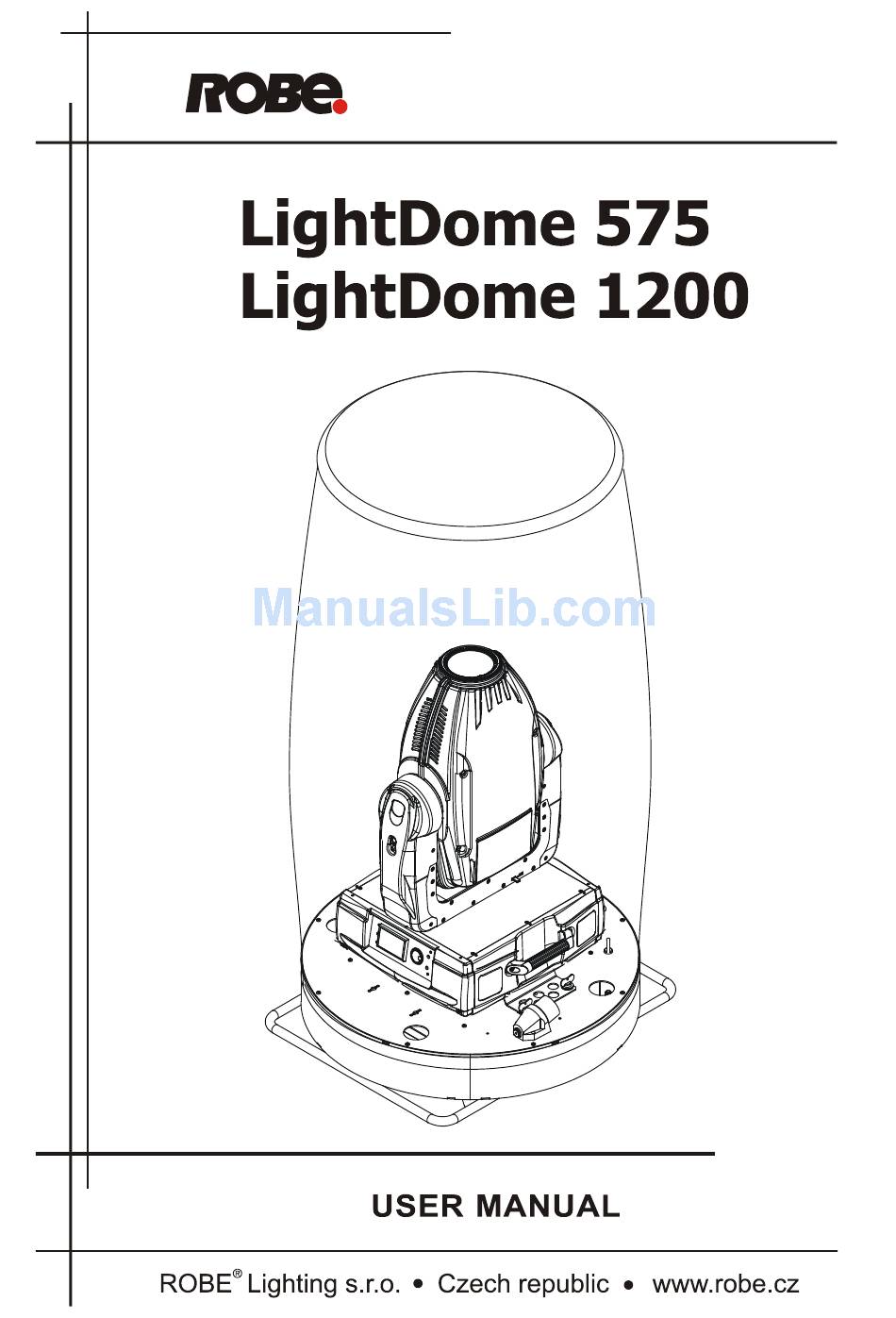

    LightDome 575 LightDome 1200 Table of contents 1. Introduction ........................3 2. Safety instructions ......................3 3. Operating determinations ....................3 4.The LightDome - description ..................4 5. Installing and operating ....................4 5.1 AC power ........................4 5. Placing the LightDome on a plain surface ..............4 5.3 Truss mounting ......................
  • Page 3: Introduction

    The LightDome 575 was designed to be operated with moving heads of ROBE 575/250 AT series. The LightDome 1200 was designed to be operated with moving heads of ROBE 1200/700 AT series .
  • Page 4: The Lightdome - Description

    4.The LightDome - description Top side of the base Bottom side of the base 1 - Plastic dome 6 - Seal belt and strip of Velcro fastener 2 - Base 7 - Safety loops 3 - Handles 8 - Power outlet for fixture 4 - Mounting plate 9 - Fan grid 5 - Air vent...
  • Page 5: Truss Mounting

    the base and fasten to the surface. 3.Thread the safety cable (2) through the two apertures in the fixture base and through the safety loop on the top side of the LightDome base. 4.Fasten the mounting plate (1) on the bottom side of the fixture base using four quick-lock fasteners (3). 5.Put the fixture with the fixed mounting plate on the base of the LightDome in the right position and fasten it using four quick-lock fasteners (4).
  • Page 6: Inflating The Lightdome

    4.Mount the LightDome with clamps on a truss system 5.Thread the safety cable (11) through the safety loop on the bottom side of the base and fasten to the truss. 6.Fasten the fixture holder (1) on the bottom side of the fixture base using four quick-lock fasteners (3).Thread the safety cable (2) through the two apertures in the fixture base.
  • Page 7: Cleaning And Maintenance

    To ensure the correct back-up of the LightDome fan,you have to keep the follow rules: 1.Do not change the fixture if the LightDome is connected to the mains. 2.Switch off the fixture lamp at least 5 minutes before disconnecting the LightDome from the mains. 3.If the LightDome is inflated,switch on the lamp for at least 2 minutes.
  • Page 8: Technical Specifications

    7.Technical Specifications Power supply: 90-125V/47-63Hz or 180-250V/47-63 Hz Power consumption: 125 VA Fuse for load: 16 A Dimensions and weight: LightDome 575 LightDome 1200 Base diameter 630 mm 800 mm Base height 130 mm 130 mm Dome height 1290 mm...
  • Page 9 LightDome 575: Mounting plate (No. 99011434).....1 piece (for moving heads of 250 AT and 575 ATseries] Plastic dome (No.10980025)....1 piece Rain-protective cover for LightDome 575 (No.99011437)..1piece LightDome 1200: Mounting plate (No. 99011387).....1 piece (for moving heads of 700/1200 AT series] Plastic dome (No.10980024)....1 piece...
