TOOLS NEEDED

Ruler or tape measure
Level
Pencil
Scissors
PARTS FURNISHED
4 Type A screws
1 Type B screw
Leveling bolt
Window gasket
Putty
WINDOWREQUIREMENTS
The installation will need to be modified for
windows other than the standard double
hung window.
All supporting parts should be secured to
firm wood, masonry or metal.
Type A
Type B

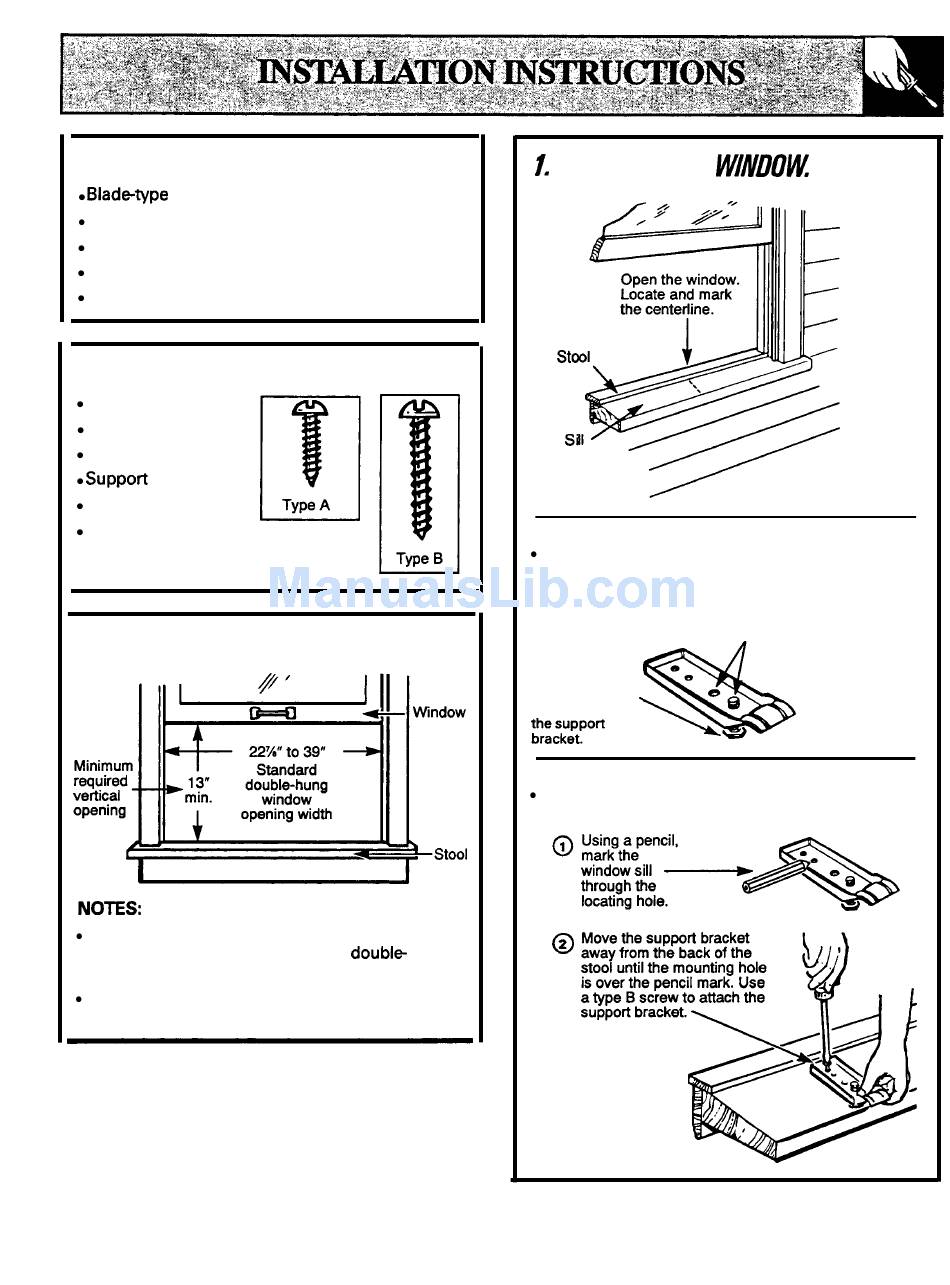

Place the support bracket on the window
sill against the back of the stool. The depth of
the window sill will determine which 3/8"
threaded hole to use.
Screw the
leveling bolt into 0 =
the correct 318"
threaded hole of
Put the support bracket over the centerline of
the sill with the end against the stool.
3/8" threaded holes
7
