Summary of Contents for Indesit PAA 642 /I(WH)
- Page 1 PAA 642 /I(WH) English Operating Instructions Contents Operating Instructions,1 Warnings,2 Assistance,3 Description of the appliance,4 Installation,5 Start-up and use,9 Precautions and tips,9 Maintenance and care,10 Troubleshooting,10...
-
Page 2: Warnings
Warnings WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been... -
Page 3: Assistance
Assistance ! Never use the services of an unauthorised technician. Please have the following information to hand: • the type of problem encountered. • the appliance model (Mod.). • the serial number (S/N). The latter two pieces of information can be found on the data plate located on the appliance. -
Page 4: Description Of The Appliance

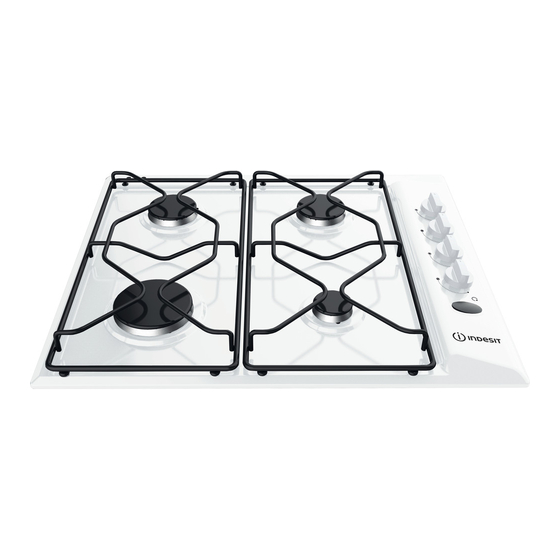

Description of the appliance Overall view 1. Support Grid for COOKWARE 2. GAS BURNERS 3. Control Knobs for GAS BURNERS 4. Ignition for GAS BURNERS 5. SAFETY DEVICES • GAS BURNERS differ in size and power. Use the diameter of the cookware to choose the most appropriate burner to cook with. -
Page 5: Installation
Installation Fitting the appliance The following precautions must be taken when installing the hob: • Kitchen cabinets adjacent to the appliance and taller than the top of the ! Before operating your new appliance please read this instruction booklet hob must be at least 200 mm from the edge of the hob. carefully. -
Page 6: Gas Connection
Ventilation As the colours of the wires in the mains lead may not correspond with the To ensure adequate ventilation, the back panel of the cabinet must be coloured markings identifying the terminals in your plug, proceed as follows: removed. It is advisable to install the oven so that it rests on two strips of Connect the Green &... - Page 7 • Setting the burners to minimum 1. Turn the tap to the low flame position; 2. Remove the knob and adjust the adjustment screw, which is positioned in or next to the tap pin, until the flame is small but steady. 3.
-
Page 8: Burner And Nozzle Specifications
Burner and nozzle specifications Table 1 CATEGORY II2H3+ TYPE OF GAS TYPE OF NOZZLE RATED RATED REDUCED GAS PRESSURE USED BURNER THERMAL CONSUMPTION HEAT mbar FLOW RATE CAPACITY min. rat. max. Rapid F2 118 3.00 286 l/h 0.60 NATURAL GAS (Methane) Semi-Rapid 1.75... -
Page 9: Start-Up And Use
Start-up and use Precautions and tips ! The position of the corresponding gas burner is shown on every knob. ! This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety Gas burners reasons and must be read carefully. -
Page 10: Maintenance And Care
Troubleshooting Respecting and conserving the environment • Cook your food in closed pots or pans with well-fitting lids and use as little water as possible. Cooking with the lid off will greatly increase energy It may happen that the appliance does not function properly or at all. Before consumption. - Page 12 195145229.00 04/2016 - XEROX FABRIANO Indesit Company S.p.A. Viale Aristide Merloni,47 60044 Fabriano (AN) www.indesit.com...
