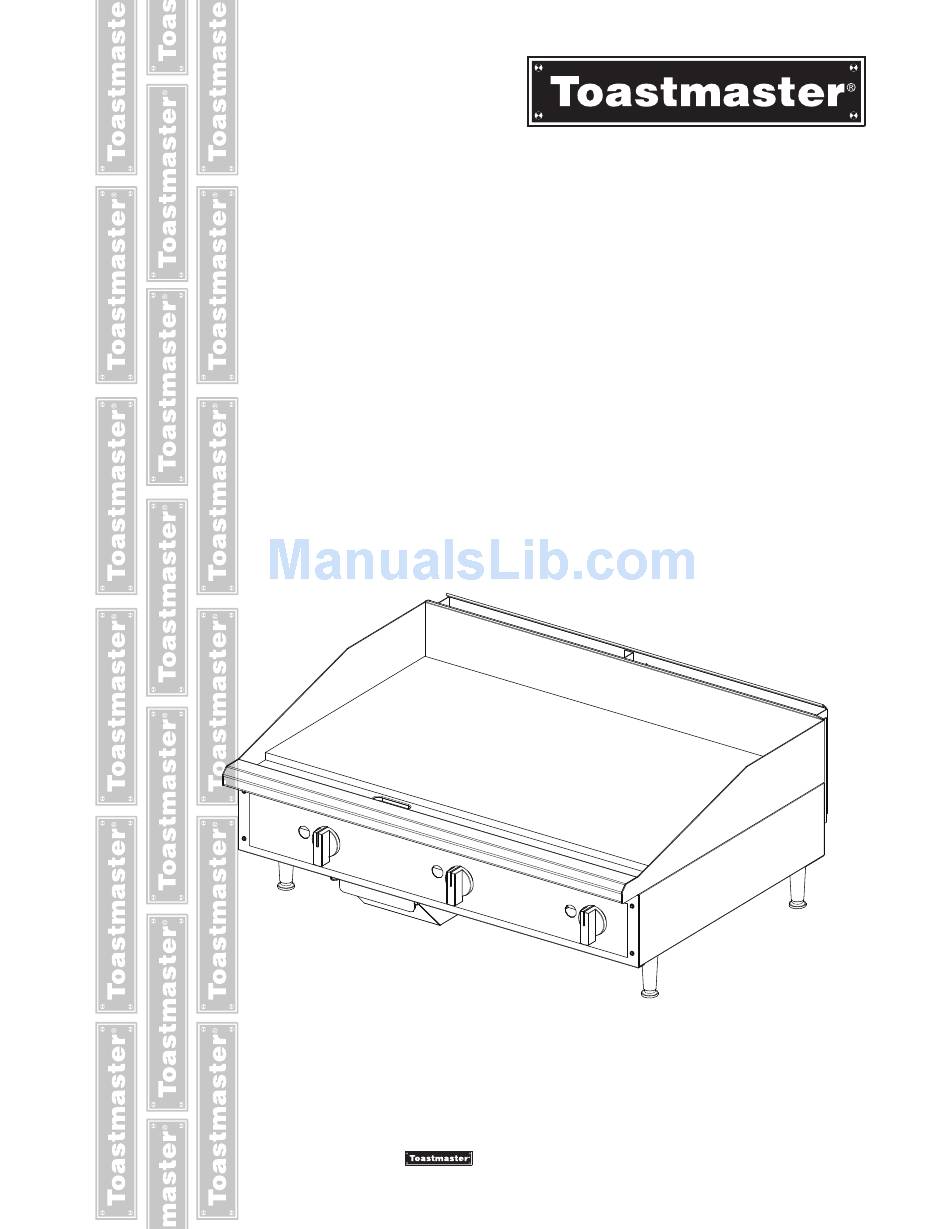

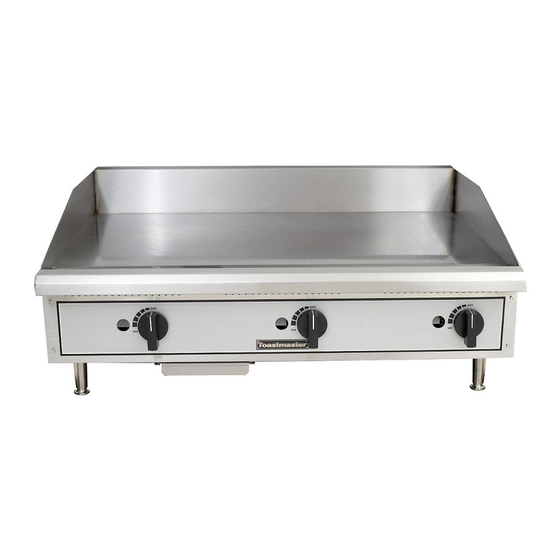

- Page 1 GAS GRIDDLE Manual Models TMGM24, TMGM36, TMGM48 T-Stat Models TMGT24, TMGT36, TMGT48 Installation and Operation Instructions 2M-Z2966 Rev. - Oct. , 2009 IL1880 TMGM36 is a registerd trademark of Toastmaster, A Middleby Company. All rights reserved.
- Page 2 RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Toastmaster factory supplied parts relieves the manufacturer of all liability. Toastmaster reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment.
- Page 3 SPECIFICATIONS: Gas Griddle MODEL: TMGM24, TMGM36, TMGM48, TMGT24, TMGT36, TMGT48 27 13/16 "Width" [70.6] 5 1/2 [14.0] 15 17/32 1 13/16 [39.4] [4.6] 5 5/16 4 - 5.375 [13.5] 5 29/32 "B" [15.0] [48.3] 29” B = Width - 3.25”...
- Page 4 CAUTION The Toastmaster model griddles are equipped for use with the types of gas specified on the nameplate. All units are shipped from the factory for use with natural gas. The unit can easily be converted for use on propane gas: See propane gas.
- Page 5 EXHAUST CANOPY It is essential that facilities be provided over the griddle to carry off fumes and gases. However, the unit should not be directly connected to a flue or stack. LEVELING UNIT This griddle is supplied with () feet which must be screwed into the legs attached to the body.
- Page 6 LIGHTING INSTRUCTIONS When griddle is first lit, it will smoke until the preservation oils and impurities are burned off. . Turn off main valve to unit and wait 5 minutes to clear gas. 2. Turn off all knobs and pilot valves. .
- Page 7 COOKING (MODELS TD) Set the thermostat dial knob to the temperature desired. After a short preheating period, the thermostat will automatically maintain the selected temperature. GREASE PAN A grease pan is located at the front and can be removed for cleaning from the front. This pan should be checked and emptied when necessary.
