Countertop Gas Griddle
Models TMDG24, 36 & 48

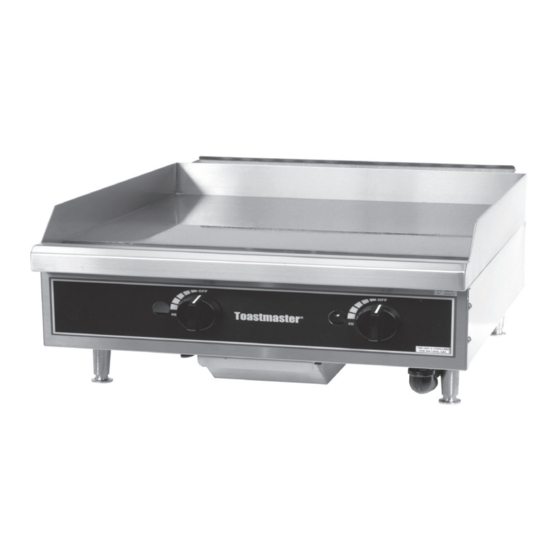

TMDG24
Application
The Toastmaster Countertop Gas
Griddle is the most economical and
flexible Countertop Griddle in the
food service industry. It offers
unsurpassed performance,
combining a proven control system
with Toastmaster quality and
durability. Available in three different
sizes: 24", 36", and 48".
Standard Features
Stainless steel front including
top rail.
Aluminized steel rear and sides.
4" steel legs.
3/4" rear gas connection and
universal presure regulator
supplied.
3/4" thick polished rolled steel
plate with 4" high rear and side
splash guards.
Electrical
None required.
Heating
U shaped burner is controlled by
independent control of flame. One
standing pilot services each burner.
A 3/4 " rear connection is standard.
Each burner is rated for 35,000
BTU/hr for natural gas and 30,000
BTU/hr for propane gas. The TMDG
has one U shaped burner per 12" of
griddle. TMDG24 - 2 burners,
TMDG36 -3 burners, TMDG48 - 4
burners.
Controls
One front panel mounted control
knob per burner, to allow adjustable
flame height. One burner per 12" of
charbroiler.
1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com
Form 903 Rev 0 (02/05)
Foodservice Equipment
Job ________
Item# ________
Warranty
Product warranty includes one year
parts and labor. (USA only)
Approximate Weights
TMDG24 - 215 lbs. shipping.
TMDG36 - 290 lbs. shipping.
TMDG48 - 365 lbs. shipping.
Cleanability
Stainless steel front for durability
and easy cleanup.
Easy access to grease drawer.
