Description of the device
Features
The Showtec Datamoon LED is a light effect with high output and great effects.
• Power consumption: 30 Watt
• DC motor： DC12V 70 rpm
• LED system: 2 pcs 9 Watt RGB Chip on board
• Music-controlled via built-in microphone
• When no music is played the LEDs and DC Motor turn off after 10 seconds
• Fuse 1A / 250V

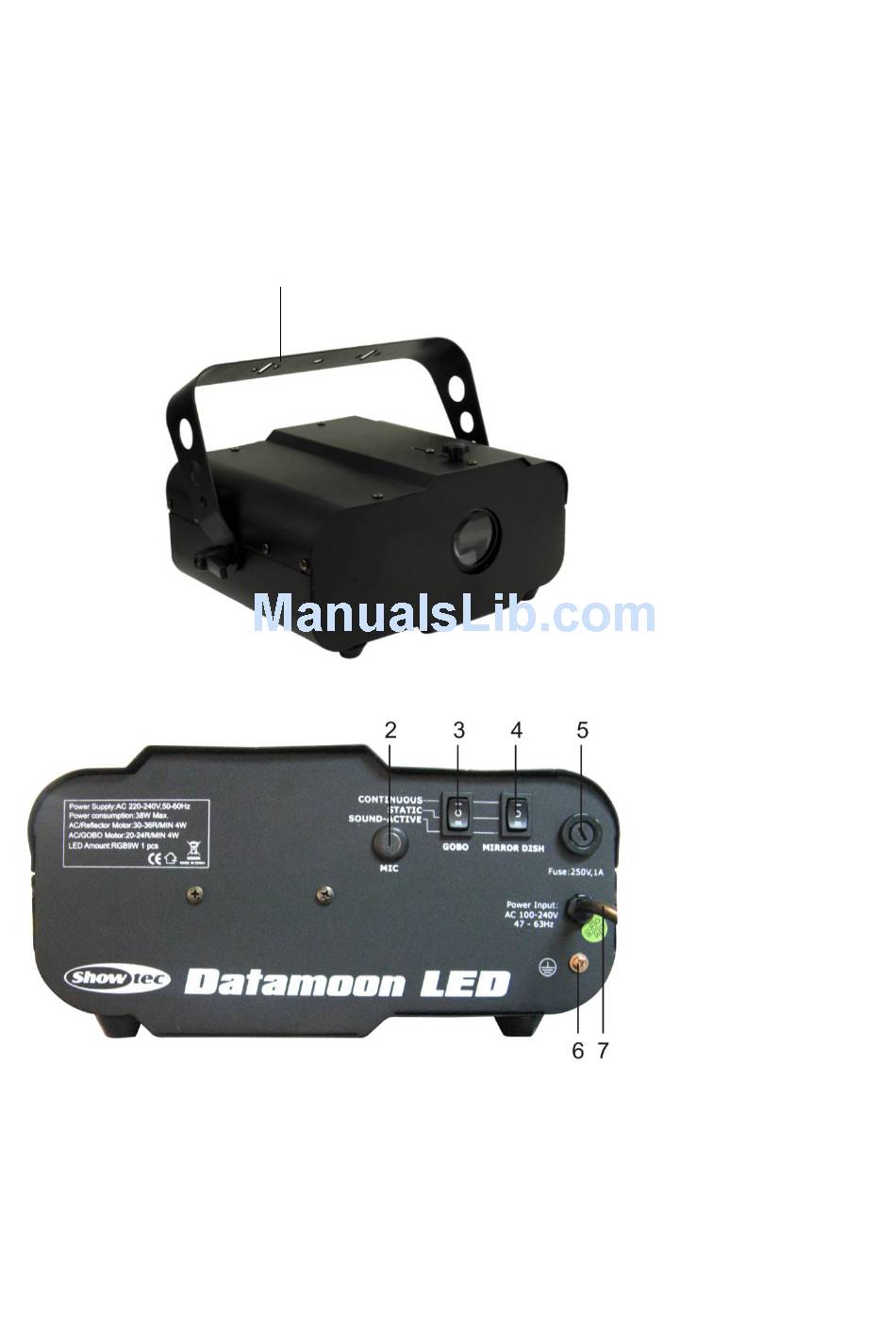

Overview
Backside
1) Mountingbracket
2) Built-in microphone
3) Gobo (Continuous-Static-Sound-active)
4) Mirror Dish (Continuous-Static-Sound-active)
1
5) Fuse 1A/250V
6) Earth connection
7) Power cable
6
Fig. 1
Fig. 2
