Introduction

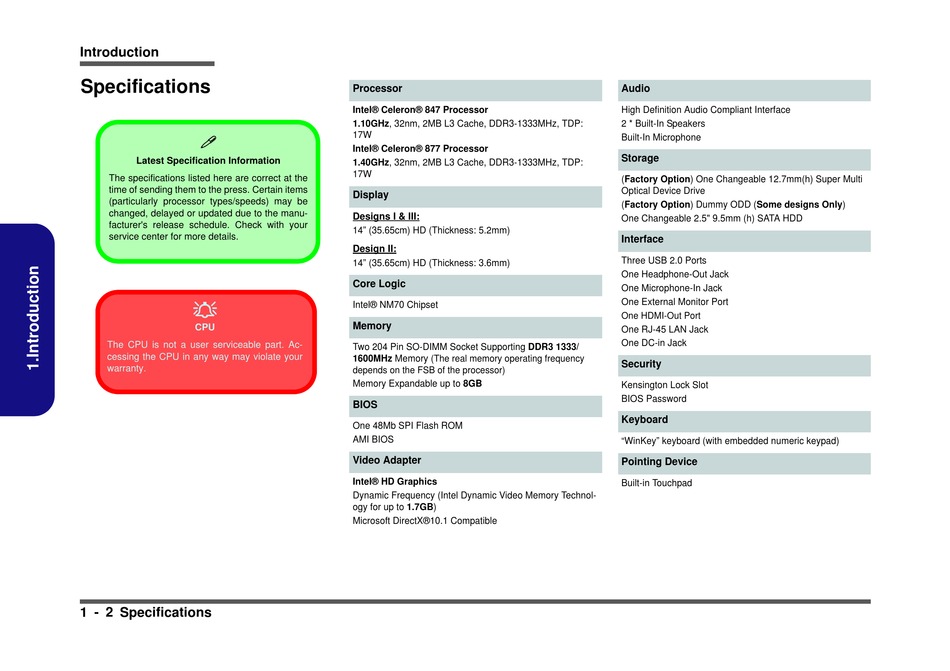

Specifications


Latest Specification Information
The specifications listed here are correct at the
time of sending them to the press. Certain items
(particularly processor types/speeds) may be
changed, delayed or updated due to the manu-
facturer's release schedule. Check with your
service center for more details.

CPU
The CPU is not a user serviceable part. Ac-
cessing the CPU in any way may violate your
warranty.
1 - 2 Specifications
Processor
Intel® Celeron® 847 Processor
1.10GHz, 32nm, 2MB L3 Cache, DDR3-1333MHz, TDP:
17W
Intel® Celeron® 877 Processor
1.40GHz, 32nm, 2MB L3 Cache, DDR3-1333MHz, TDP:
17W
Display
Designs I & III:
14" (35.65cm) HD (Thickness: 5.2mm)
Design II:
14" (35.65cm) HD (Thickness: 3.6mm)
Core Logic
Intel® NM70 Chipset
Memory
Two 204 Pin SO-DIMM Socket Supporting DDR3 1333/
1600MHz Memory (The real memory operating frequency
depends on the FSB of the processor)
Memory Expandable up to 8GB
BIOS
One 48Mb SPI Flash ROM
AMI BIOS
Video Adapter
Intel® HD Graphics
Dynamic Frequency (Intel Dynamic Video Memory Technol-
ogy for up to 1.7GB)
Microsoft DirectX®10.1 Compatible
Audio
High Definition Audio Compliant Interface
2 * Built-In Speakers
Built-In Microphone
Storage
(Factory Option) One Changeable 12.7mm(h) Super Multi
Optical Device Drive
(Factory Option) Dummy ODD (Some designs Only)
One Changeable 2.5" 9.5mm (h) SATA HDD
Interface
Three USB 2.0 Ports
One Headphone-Out Jack
One Microphone-In Jack
One External Monitor Port
One HDMI-Out Port
One RJ-45 LAN Jack
One DC-in Jack
Security
Kensington Lock Slot
BIOS Password
Keyboard
"WinKey" keyboard (with embedded numeric keypad)
Pointing Device
Built-in Touchpad
