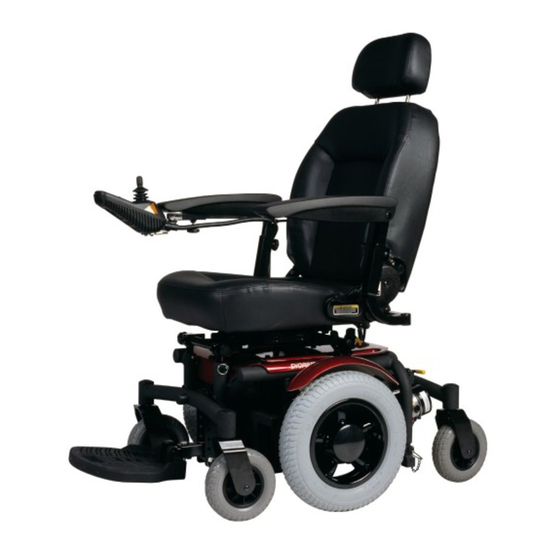

Summary of Contents for Shoprider PROWLER 888WNLL

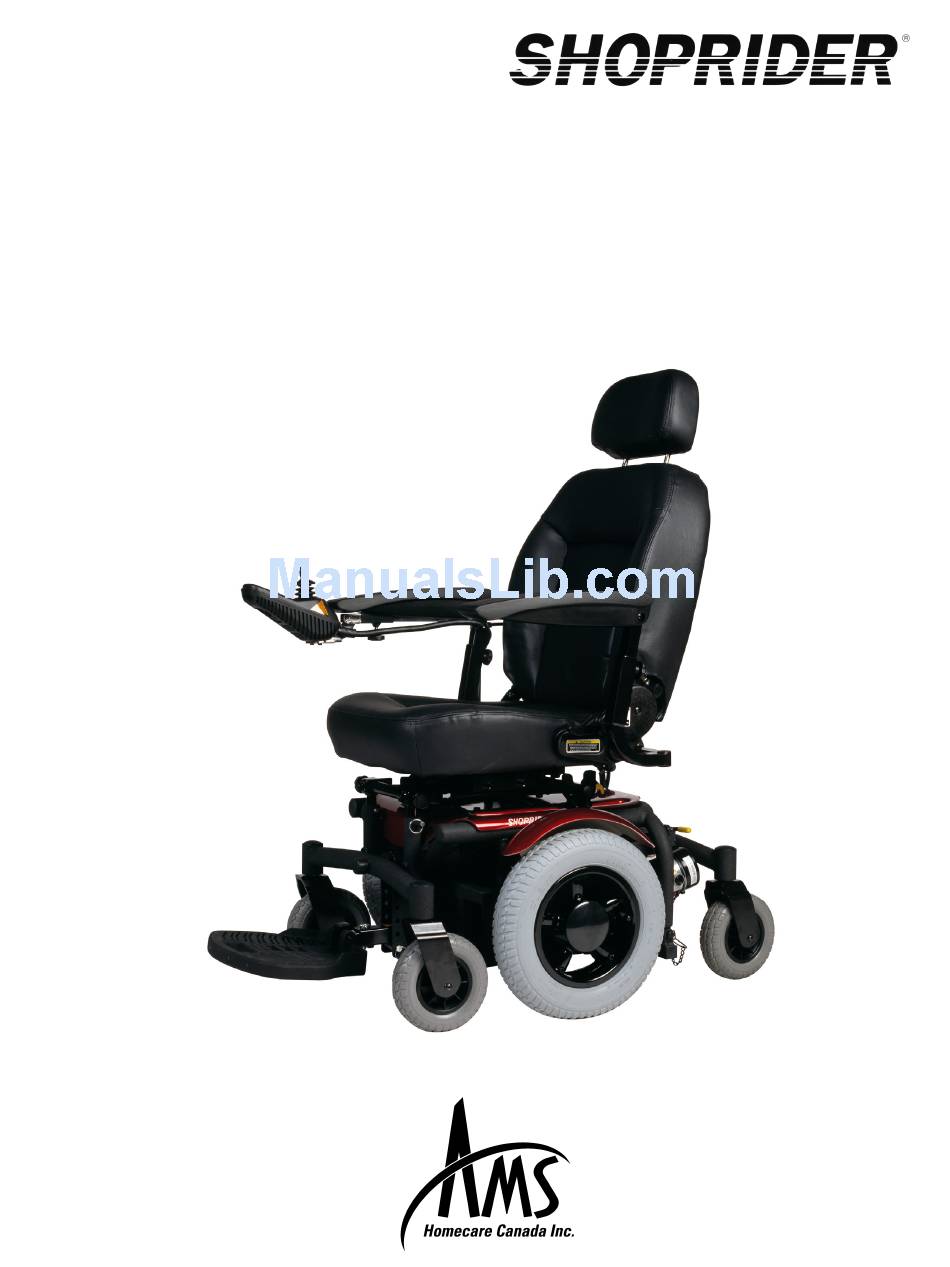

- Page 1 Operating Instructions Prowler 888WNLL...
-
Page 2: Table Of Contents
Table of Contents Introduction EMI Warning Rules For Safe Use Parts of the Powerchair Preparation for Use Operating Your Powerchair 9-14 Batteries and Charging 15-17 Care and Maintenance 18-19 Trouble Shooting 20-21 Warranty Information 22-25 Specifications Options... -
Page 3: Introduction
Shoprider owners are a distinguished, growing group of people who care about quality, performance and craftsmanship. Because of its unique "Transaxle" engineering, Shoprider is able to navigate a multitude of terrains, with comfort and stability other conventional Powerchairs cannot provide. -
Page 4: Emi Warning
EMI Warning Electromagnetic Interface (EMI) From Radio Wave Sources Powered motorized Powerchairs may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two- way radios, and cellular phones. The interference (from radio wave sources) can cause a powered Powerchair to release its brakes, move by itself or move in unintended directions. - Page 5 Warnings The warnings listed below should reduce the chance of unintended brake release or powered Powerchair movement, which could result in serious injury. 1. Do not operate hand-held transceivers (transmitters-receivers) such as citizens band (CB) radios, or turn on personal communication devices, such as cellular phones, while the powered Powerchair is turned ON.
-
Page 6: Rules For Safe Use
Rules For Safely Operating Your Powerchair Your Powerchair is a powerful electric device. Please read and obey the following rules to help ensure safety at all times. 1. Always make certain your Powerchair is in full working order before use. 2. - Page 7 AMS Homecare Inc. is not responsible for any damage or injury incurred due to improper or unsafe use of any Shoprider Powerchair. Mechanical or electrical defects will be dealt with on a contingenty liability basis. The part or parts will be replaced, but no responsibility for any damage or injury can be implied to AMS Homecare Inc.
-
Page 8: Parts Of The Powerchair
Parts of the Powerchair Full technical specifications for the 888WNLL can be found at the back of this manual... -
Page 9: Preparation For Use
Preparation for Use Your Powerchair has many features designed to provide you with maximum comfort, and will be ready for immediate use upon assembly and delivery by your dealer. Adjustments may then be made to the following parts: 1. Footplate may be adjusted in distance from the main frame in four different positions. -
Page 10: Operating Your Powerchair
Operating your Powerchair WARNING: Seat adjustments must NOT be made while seated on your Powerchair. All other adjustments should be carried out while seated in your Powerchair. Footrest Adjustment Length Pull out connecting pin from the hole in the footrest slide tube. See Photo # 1 (a). Slide out the footrest tube and refit the connecting pin making sure the pin protrudes through the bottom side of the tube and is secure in the... - Page 11 Continued page 10 Height Below the armrest on the down supporting tube you will see a lever. Pull up on the button to raise or lower your armrest. Photo # 2 (a) Lever Width Photo # 2 (a) Beneath the rear of the Powerchair seat you will locate two “hand knobs”, one at each side of the seat.
- Page 12 Operation Photo # 4 Your Powerchair is fitted with the latest up to date electronic controls. The “joystick control box” Photo # 4 is normally fitted to the right side of the chair. Switch on your Powerchair with the ON/OFF button (A). When the chair is turned on the Battery Indicator lamp (B) lights up.
- Page 13 Free-Wheeling Your Powerchair In the event of a fault or battery failure, the motors/gears may be disengaged allowing the Powerchair to be “Freewheeled” and manually moved. Lever Photo # 5 To switch to “Freewheel” mode, locate levers. See Photo # 5 above. The two levers, one on each side of the machine, are fitted with yellow capped tips and are pulled back approximately 7½...
- Page 14 Disassembly WARNING: CAUTION IS ADVISED WHEN DISASSAMBLING AND LIFTING ITEMS. YOU MUST ENSURE THAT THE PERSON UNDERTAKING THIS PROCEDURE IS PHYSICALLY CAPABLE OF LIFTING THE WEIGHT INVOLVED 1) Ensure that the area in which the Powerchair is to be dismantled is spacious enough to accommodate all the components.
- Page 15 8) Remove the 2” wide Velcro strips that secure the batteries in place and set aside. One per battery. Do not remove the 2” wide Velcro strips that wrap tightly around the battery as they will be used to lift the battery out. 9) Disconnect the two purple and black connectors.
-
Page 16: Batteries And Battery Charging
NOTE: Each carrier reserves the right to carry what may be termed “HAZARDOUS CARGO” Shoprider cannot be responsible for their final decision. BATTERY CHARGER: The battery charger supplied is specific to your Powerchair, and may not be suitable for any other power mobility products. - Page 17 Charging Your Powerchair's Batteries 1. Press the “OFF” button of your Powerchair “Joystick Control” box. 2. Turn the switch on the end of the charger to “OFF”. 3. Plug the “three pin” plug, located at the opposite end of the charger to the switch, into the receptacle located under the “Joystick Control”...
- Page 18 A Guide to Safe and Lasting Batteries 1. For longest life your batteries should be recharged after use, preferably overnight. 2. If your PowerChair is not used for a period of time, a refreshing charge should be given every month. Never leave your batteries in a discharged condition.
-
Page 19: Care And Maintenance
ELECTRONICS: Servicing of the drive electronics and charger should only be carried out by your local Shoprider service dealer. These units are sealed and should not be opened. BROKEN SEALS WILL VOID YOUR WARRANTY. - Page 20 “Joysick Control”, your Powerchair should reduce speed very quickly. If you notice a change in the normal driving/slowing condition and your Powerchair does not slow down quickly, please do not use your Powerchair and contact your Shoprider dealer. TIRES – Your Powerchair comes with air-filled and non air-filled tires. Check the condition of your tires regularly.
-
Page 21: Trouble Shooting
If your Powerchair does not slow down, or the variable speed control does not work: Turn off the power ”on/off” button and inform your authorized Shoprider dealer. CAUTION: If you find for any reason that your Powerchair doesn’t reduce speed when you let go of the joy stock control, switch your Powerchair “off”... - Page 22 SAFETY CONDITIONS MONITORED INCLUDE • Speed control system integrity • Internal voltages and circuits • Motor voltages and circuits • Safety isolate relay • Battery voltage To ensure safety, the controller will not operate if the joystick controller is in the neutral position.
-
Page 23: Warranty Information
Warranty AMS Homecare Canada Inc. (“Distributor’) warrants its electronic scooters and Powerchairs ('product') against certain defects in materials and workmanship from the date of purchase by the end user, and subject to certain conditions and exclusions as defined below. Proof of purchase by way of bill of sale is required for return authorizations and for activation of Warranty. - Page 24 AMS Homecare Canada Inc. service center. The Warranty is valid and enforceable only on Shoprider brand ‘products' purchased in Canada, and AMS Homecare Canada Inc. ‘products' purchased in Canada and the United States, from Authorized AMS Homecare Canada Inc.
- Page 25 13. This Warranty does not cover batteries, or damage caused by battery leakage. The battery is not warranted. The battery charger is only covered for a period of one year from the date of purchase of the unit. 14. If it is found that the dealer has ordered an incorrect part, a fifteen percent restocking fee will be charged and all freight charges will be applied.
- Page 26 person for any damages, including, without limitation, any indirect, incidental, special or consequential damages. This Agreement gives Customer specific legal rights, and Customer may have other rights that vary from state to state or in other provinces. Since some states do not allow the exclusion or limitation of (i) incidental or consequential damages and/or (ii) implied warranties, the above exclusions may apply.
-
Page 27: Specifications
Specifications... -
Page 28: Options
Options CNP-01 Scooter Canopy Colors available - Black and Grey CNP-RR Scooter Canopy Weather Shield Option OH-2 Oxygen Holder CN-1 Single Cane Holder CN-2 Dual Cane Holder RB03 Rear Tote WH05 Walker Holder 1360 Cliveden Ave Delta, B.C. V3M 6K2 Canada Tel.
