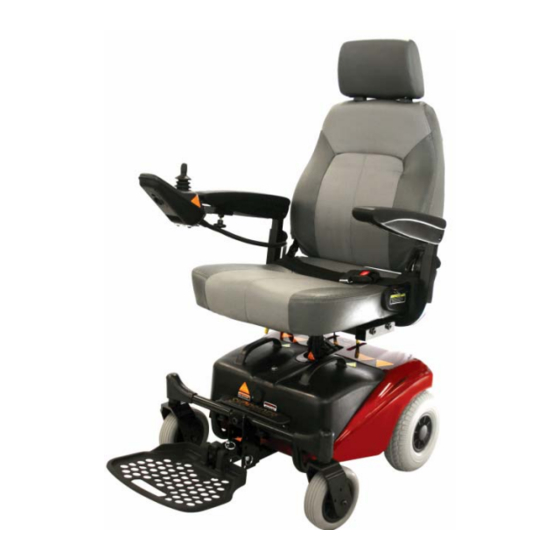

Shoprider Trooper UL8W36 User Manual
  1. Manuals
  2. Brands
  3. Shoprider Manuals
  4. Wheelchair
  5. UL8W36
  6. User manual

Shoprider Trooper UL8W36 User Manual

Trooper
Hide thumbs
Table of Contents

Advertisement

Quick Links

Trooper
USER MANUAL
Model # UL8W36

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trooper UL8W36 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shoprider Trooper UL8W36

Summary of Contents for Shoprider Trooper UL8W36

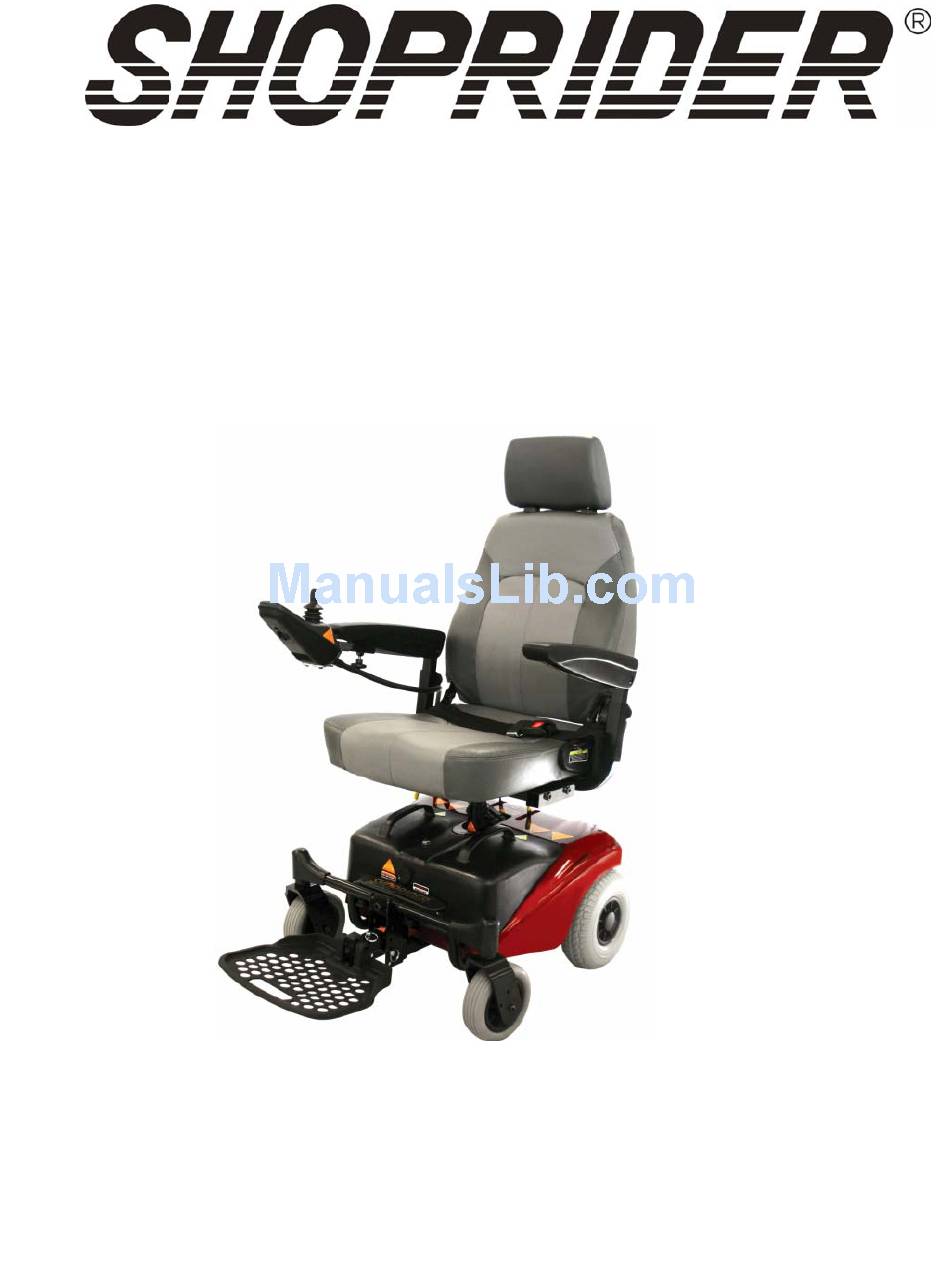

  • Page 1 Trooper USER MANUAL Model # UL8W36...

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ................3 EMI WARNING................... 4 ....4 ELECTROMAGNETIC INTERFERENCE FROM RADIO WAVES ....5 POWERED CHAIR ELECTROMAGNETIC INTERFERENCE (EMI) SAFETY INSTRUCTIONS .............. 6-7 FEATURE GUIDE ................8 GETTING TO KNOW YOUR POWERCHAIR ........9 ............9 THE JOYSTICK CONTROLLER (VSI) LOCKING / UNLOCKING THE JOY STICK CONTROLLER……………………..

  • Page 3: Introduction

    Powerchair is the ultimate combination of style, comfort and user friendly. The compact features support easy transportation of your Shoprider Powerchair for today’s active lifestyle. We know that your Powerchair will provide many years of mobility for you. Enjoy the freedom of mobility wherever you go! This manual contains important information regarding the safe use of the Shoprider Trooper Powerchair.

  • Page 4: Emi Warning

    Figure 1 EMI WARNING Electromagnetic Interference (EMI) from Radio Wave Sources Powered electric chairs may be susceptible to electromagnetic interference, which is a kind of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios and cellular phones.

  • Page 5: Electromagnetic Interference From Radio Waves

    The sources of radiated EMI can be broadly classified into three types: 1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted directly on the transmitting unit. Examples include: citizens band (CB) radios, “walkie talkies”, security, fire and police transceivers, cellular telephones and other personal communication devices NOTE: Some cellular telephones and similar devices transmit signals while they are ON, even when not being used.

  • Page 6: Powered Chair Electromagnetic Interference (Emi)

    Powered Chair Electromagnetic Interference (EMI) Because EM energy rapidly becomes more intense the closer one moves to the transmitting antenna (source), the EM fields from hand- held radio sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the Powerchair’s control system while using these devices.

  • Page 7: Safety Instructions

    Safety Instructions Please use your Powerchair to enhance your active lifestyle. With increased mobility, please observe a few rules to ensure safe operation of your Powerchair. So please… Do not drive the Powerchair without reading this manual. Do not exceed the safe climbing maximum angle (Table 2). Do not use the joystick in an erratic manner when going up or down an incline.
  • Page 8 Important Notes The Shoprider Trooper Powerchair is designed to assist in your individual mobility needs. Any usage outside of the guidelines in this manual may result in damage to the chair or injury to the user or third party.

  • Page 9: Feature Guide

    Feature Guide Figure 2 Removable Armrests with Width, Height & Angle Adjustment (Flips Up for Easy Sideways Transfer) Programmable VSI Joystick Controller with Adjustable speed & Battery Life Indicator. Charging Port located at joystick controller and battery pack (Warning: When charging at the battery pack do not turn on the joystick controller and try to operate the chair) Reclining Deluxe Captain Seat Adjustable Length, Height, Angle Foot Plate...

  • Page 10: Getting To Know Your Powerchair

    8. Charging Port: This is a secondary charging port, in addition to the charging port located on the battery pack. When using this charging port only plug into this port with the qualified Shoprider charger certified by the original manufacturer of the Powerchair. This port should not be used as a power supply for any other electrical devices.

  • Page 11: Locking / Unlocking The Joy Stick Controller

    Locking/Unlocking the VSI Joystick LOCK MODE: The VSI controller can be locked to prevent unauthorized use. The locking method is achieved through a sequence of key presses and joystick movements, as detailed below. To lock Powerchair controller: While the controller is switched on, depress and hold the on/off button.

  • Page 12: Drive/Freewheel Mechanism

    code and beep steadily if turned on. Refer to Table 1 for more details. Both left and right sides must be in drive mode for power chair to operate. Otherwise the Powerchair will flash fault code of 9 lights and will not operate. Drive/Freewheel Mechanism The drive/freewheel levers are found toward the rear of the Powerchair, both on top left and one on right.

  • Page 13: User Transferring

    User Transferring You can transfer either forward, left or right from your Trooper Powerchair. (Figure 5a) The armrests are hinged and can be pulled up and out of the way for sideways transfer. For support, only use the armrest. (Figure 5b) Do Not use the seat back as support.

  • Page 14: Disassembling/Transporting Your Powerchair

    Disassembling/Transporting the Shoprider Trooper Powerchair Adjus t Figure 7 Follow these simple guidelines for disassembly: 1. Park the Powerchair on a level 2. Ensure the wheels are locked in drive mode (Fig 4) 3. Fold up footplate 4. Unplug joystick controller from rear of unit 5.

  • Page 15: Driving Your Powerchair

    Driving Your Shoprider Powerchair Ramps, Slopes and Cambers The Shoprider Trooper Powerchair has the ability to negotiate ramps, slopes and cambers of a low to medium gradient. It is of the utmost importance that the following points are observed: 1. Never attempt to go up or down an incline which has a rough, wet or slippery surface (loose gravel, tree roots, wet grass, polished floor, etc.)

  • Page 16: Caring For Your Powerchair

    Caring for Your Shoprider Trooper Powerchair First Time Use Prior to using your Trooper Powerchair for the first time, you must charge the batteries fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries completely prior to first time use will benefit battery efficiency and life.

  • Page 17: Batteries And Battery Charging

    Batteries & Battery Charging Batteries The Shoprider Trooper Powerchair is designed to operate on two 12 volt/36Ah sealed lead acid (AGM or gel-cell type) aka SLA maintenance free batteries. For easy handling, the SLA batteries are contained within a battery-pack. The life of the batteries may be affected by temperature, terrain, weight of user, driving methods, and care of batteries.

  • Page 18: Battery Charging Procedures

    Battery Charging Procedure There are two ways to charge the Trooper Powerchair Battery on chair charging method 1) Plug the A/C power cord into the wall. Plug the male three-pin charger plug into the female 3-pin receiver located on the bottom of the VSI (Refer to Figure 3, #8).

  • Page 19: Troubleshooting

    8 Bars flash your Shoprider Provider. Possible joystick fault. Be sure joystick is at center when 7 Bars flash controller is turned on. Call your Shoprider Provider. 6 Bars flash Battery charger connected. Unplug charger. Right-hand motor wiring fault. Check connections. Call 5 Bars flash your Shoprider Provider.

  • Page 20: Specifications

    Output Power of Motor x2 .45 hp (Reference Only) As a part of our ongoing product improvement initiative, Shoprider reserves the right to change specifications and design without prior notice. All specifications and dimensions are approximate. Includes the anti-tip wheel.

  • Page 21: Quarterly Inspection

    QUARTERLY INSPECTION For your own safety, quarterly inspection and service on the product with signature by an authorized dealer is strongly recommended. There may be a nominal dealer inspection fee for this service not covered by warranty. Maintenance records (below) should be kept at all times. The manufacturer / distributor / vendor will be indemnified from any product liability claim if the above maintenance / service requirement are not met.

  • Page 22: Disclaimer

    Warranty is only valid when genuine Shoprider parts are used. All modifications on the Powerchair, unless approved and authorized by Shoprider will automatically invalidate the warranties.
  • Page 23 Notes: 3/13/2008...
  • Page 24 Model Name- Trooper Provider Stamp Serial No.:________________________ Shoprider Mobility Products, Inc. www.shoprider.com 800-743-0772 P/N SMP022008 3/13/2008...
