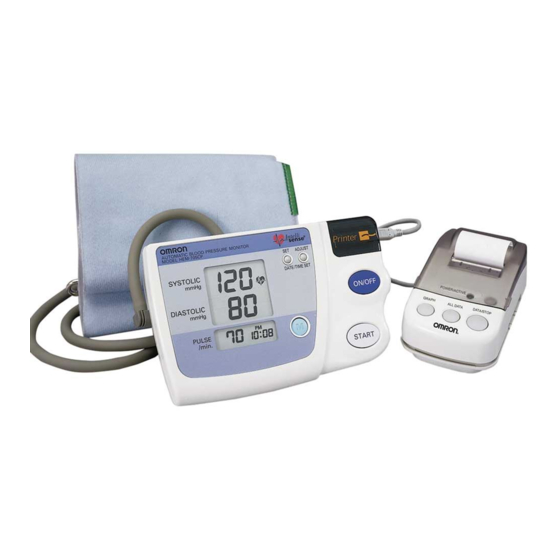

Automatic blood pressure monitor with printer
Hide thumbs Also See for INTELLISENSE HEM-705CP:
Table of Contents

Advertisement

Quick Links

R

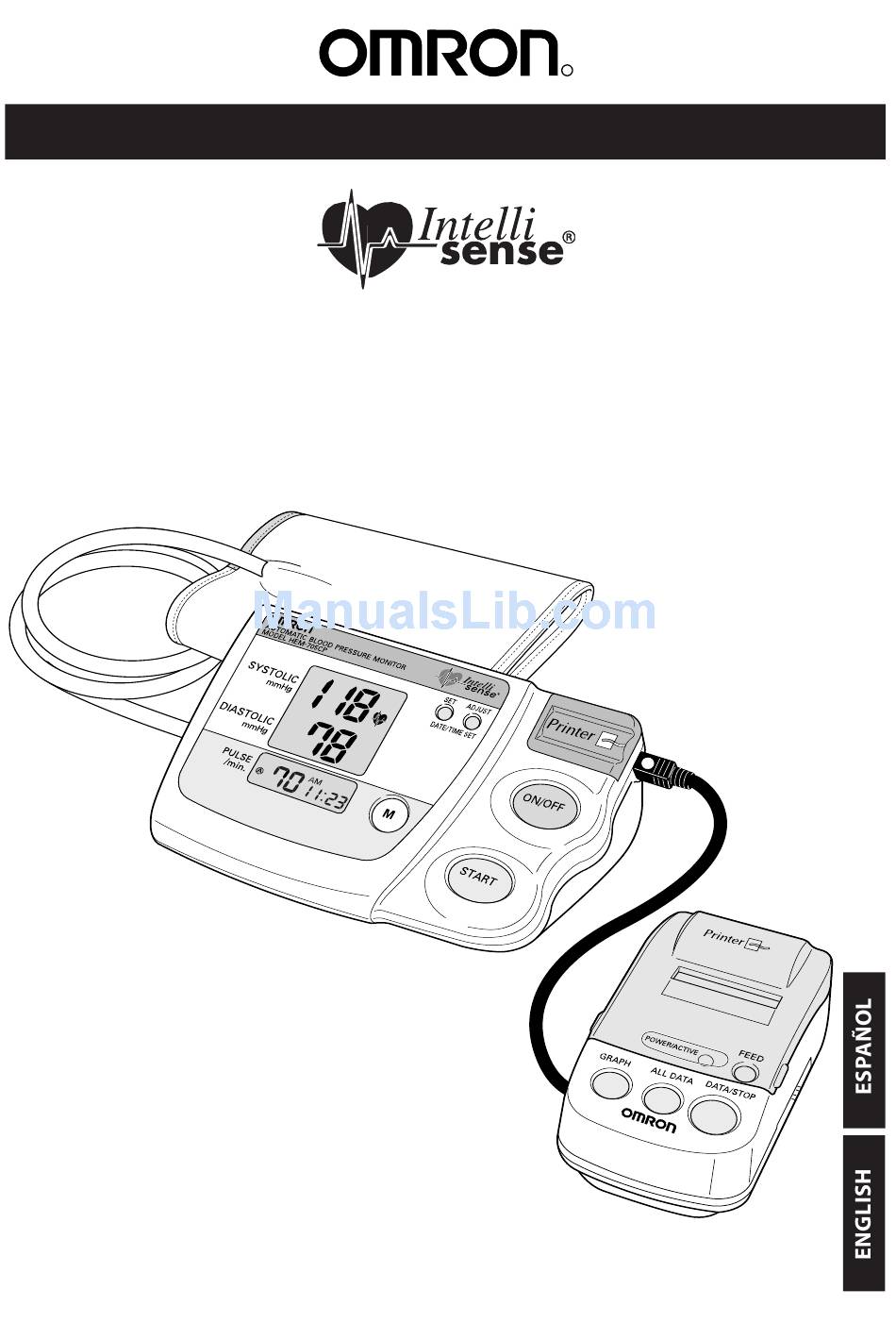

INSTRUCTION MANUAL
Automatic Blood Pressure Monitor
Printer
with
HEM-705CP
Model

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INTELLISENSE HEM-705CP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omron INTELLISENSE HEM-705CP

Summary of Contents for Omron INTELLISENSE HEM-705CP

  • Page 1 INSTRUCTION MANUAL Automatic Blood Pressure Monitor Printer with HEM-705CP Model...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction ... 3 Before Using the Monitor Important Safety Notes ... 4 Before Taking a Measurement ... 5 Know Your Unit ... 6 Operating Instructions Battery Installation ... 7 Connecting the Printer ... 8 Loading the Paper ... 9 Setting the Date and Time ...

  • Page 3: Introduction

    DATE PURCHASED: ______ SERIAL NUMBER: ________ Staple your purchase receipt here. Your new digital blood pressure monitor uses the oscillometric method of blood pressure measurement. This means the monitor detects your blood’s movement through your brachial artery and converts the movements into a digital reading.

  • Page 4: Important Safety Notes

    Do not use a cellular phone near the unit. It may result in operational failure. Do not plug or unplug the adapter power cord with wet hands. Changes or modifications not approved by Omron Healthcare will void the user warranty. Do not disassemble or attempt to repair the unit or components.

  • Page 5: Before Taking A Measurement

    BEFORE TAKING A MEASUREMENT To ensure a reliable reading follow these recommendations: 1. Avoid eating, smoking, and exercising for 30 minutes before taking a measurement. Rest for at least 15 minutes before taking the measurement. 2. Stress raises blood pressure. Avoid taking measurements during stressful times.

  • Page 6: Know Your Unit

    Main Unit: Systolic Blood Pressure Cuff Jack Diastolic Blood Pressure Pulse Rate Components: Printer Power/Operation Light Print Graph Print All Data KNOW YOUR UNIT TITLE Heart Symbol Set Date/Time Date/Time Display Printer Cover Printer Cable Plug Paper Feed Print Current Data/Stop Printing Air Tube AC Adapter Jack...

  • Page 7: Battery Installation

    BATTERY INSTALLATION/REPLACEMENT 1. Press the OPEN indicator on the battery cover and slide the cover off in the direction of the arrow. 2. Install 4 “AA” size batteries so the + (positive) and - (negative) polarities match the polarities of the battery compartment as indicated.

  • Page 8: Connecting The Printer

    TITLE TITLE 1. Remove the printer cord from around the printer unit. 2. Connect the printer to the blood pressure monitor. Insert the cable plug with the indicator facing upward. CAUTION: Inserting the cable plug in any other position will...

  • Page 9: Loading The Paper

    LOADING THE PRINTER PAPER This printer uses OMRON only this thermal paper or thermal paper of similar size, width 38mm, roll diameter not to exceed 26mm. For information on where to purchase printer paper visit NOTE: our website at www.omronhealthcare.com or call customer service at 1-800-634-4350.

  • Page 10: Setting The Date And Time

    SETTING THE DATE AND TIME The Blood Pressure Monitor automatically stores up to 28 measurement values with the date and time. Set the monitor to the current date and time before taking a measurement for the first time. If the current date and time is not set, a default date and time will display.
  • Page 11 SETTING THE DATE AND TIME 3. SETTING THE MONTH Press the ADJUST button to advance by increments of one month. Press the SET button to set the current month. The day flashes on the display. 4. SETTING THE DAY Press the ADJUST button to advance by increments of one day. Press the SET button to set the current day.

  • Page 12: Applying The Arm Cuff

    APPLYING THE ARM CUFF 1. Make sure the air plug is securely inserted in the main unit. 2. Remove tight-fitting clothing from your upper arm. 3. Sit in a chair with your feet flat on the floor. Place your arm on a table so the cuff is level with your heart.
  • Page 13 APPLYING THE ARM CUFF 5. Pull the cuff so the top and bottom edges are tightened evenly around your arm. 6. When the cuff is positioned correctly, press the sewn hook material FIRMLY against the pile side of the cuff. 7.

  • Page 14: Taking A Measurement

    TAKING A MEASUREMENT The monitor automatically determines your ideal inflation level. In rare circumstances when a higher inflation may be necessary, the monitor automatically re-inflates the cuff up to 30mmHg higher than the initial inflation and restarts the measurement. The monitor detects the pulse during inflation. Do not move your arm and remain still during the measurement.

  • Page 15: Instructions For Special Conditions

    TAKING A MEASUREMENT 4. When the measurement is complete, the arm cuff completely deflates. Your blood pressure and pulse rate are displayed. 5. Press the ON/OFF button to turn the monitor off. NOTE: The monitor will automatically turn off after five minutes.

  • Page 16: Using The Memory Function

    USING THE MEMORY FUNCTION Every time you complete a measurement the monitor stores the blood pressure and pulse rate in the memory. The Blood Pressure Monitor automatically stores up to 28 measurement values. When 28 sets of measurement values are stored in the memory, the oldest record is deleted to save the most recent measurement values.

  • Page 17: Using The Printer

    The HEM-705CP printer unit has the capability to print all the of measurement values stored in the memory of the Blood Pressure Monitor. • The correct date and time must be set up on the monitor before NOTES: taking a reading. If the date and time is not set, the numerical values will not appear on the print out.
  • Page 18 2. TO PRINT ALL THE MEASUREMENT VALUES Press the ALL DATA button. The numeric printout will list all of the readings stored in the memory starting with the oldest reading to the most recent reading followed by the average of all the stored readings.

  • Page 19: To Print Graph Of Measurement Values

    USING THE PRINTER 3. TO PRINT A GRAPH OF ALL MEASUREMENT VALUES The graph will list all of the readings stored Press the GRAPH button. in the memory. The stored data will print as illustrated in the following example: Month(s) If reading is lower than 50 mmHg or higher than 200 mmHg, ( ) will appear.

  • Page 20: Care And Maintenance

    CARE AND MAINTENANCE To keep your digital blood pressure monitor in the best condition and protect the unit from damage follow the directions listed below: • Keep the monitor in the storage case when not in use. • Do not forcefully bend the arm cuff or air tube. Do not fold tightly.

  • Page 21: Error Indicators And Troubleshooting Tips

    ERROR INDICATORS SYMBOL CAUSE Monitor did not detect pulse rate Cuff under-inflated Cuff over-inflated Batteries are worn TROUBLESHOOTING TIPS PROBLEM No power. No display appears on the unit Measurement values appear too high or too low. TITLE TITLE CORRECTION Remove the arm cuff. Refer to “Applying the arm cuff”...

  • Page 22: Troubleshooting

    TROUBLESHOOTING TIPS PRINTER UNIT: PROBLEM No power. No data will print. Not all data stored in the memory will print. POWER/ACTIVE Light is blinking Printer paper will not feed. TITLE TITLE CAUSES Worn batteries Incorrect battery installation Printer not connected Cable plug not inserted correctly or damaged.

  • Page 23: Quick Reference Guide

    QUICK REFERENCE GUIDE To ensure a reliable reading, avoid eating, smoking, and exercising for 30 minutes before taking a measurement. You should try to measure your blood pressure at the same time each day. Avoid taking measurements during stressful times. Remove any tight-fitting clothing from your upper arm.
  • Page 24 QUICK REFERENCE GUIDE Press the ON/OFF button. Display symbols appear. Press the START button. The cuff starts to inflate automatically. Remain still and do not talk during the measurement. NOTE: To stop the inflation or measurement, push the START/STOP button. The monitor will stop inflating, start deflating, and will turn off.

  • Page 25: Fcc Statement

    FCC STATEMENT Note: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 26: Warranty Information

    Repair or replacement is our only responsibility and your only remedy under the above warranties. To obtain warranty service contact Omron Healthcare’s Customer Service by calling 1-800-634-4350 for the address of the repair location and the return shipping and handling fee.

  • Page 27: Main Unit

    MAIN UNIT: Model: Display: Measurement Range: Accuracy/Calibration: Inflation: Deflation: Rapid Pressure Release: Pressure Detection: Measurement Method: Pulse Wave Detection: Power Source: Battery Life: Operating Temperatures/Humidity: Storage Temperatures/Humidity: Main Unit Weight: Main Unit Dimensions: Cuff Dimensions: Cuff Circumference: Contents: Optional Accessories: Sold Seperately UPC Code: NOTE: These specifications are subject to change without notice.
  • Page 28 Made in China Manufactured by OMRON Distributed by: 1200 Lakeside Drive OMRON HEALTHCARE, INC. Bannockburn, Illinois 60015-1243 www.omronhealthcare.com © 2005 OMRON HEALTHCARE, INC. 705CPINST Rev B...
