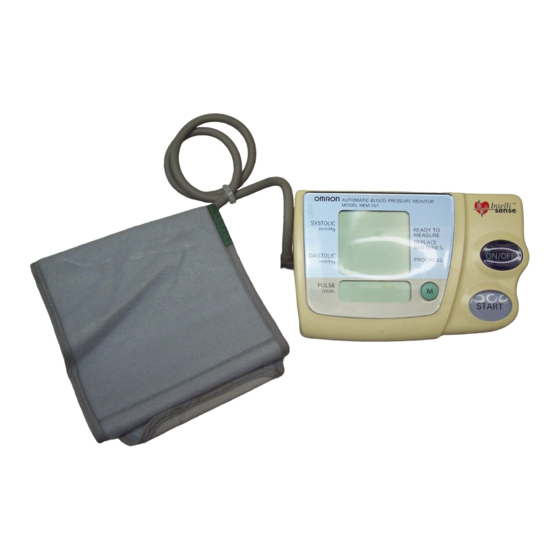

Omron HEM-757 Instruction Manual

Automatic digital blood pressure monitor with intellisense.
Hide thumbs

Advertisement

R
INSTRUCTION MANUAL
Automatic Digital Blood Pressure Monitor
IntelliSenseâ„¢
with
HEM-757
Model

Advertisement

   Related Manuals for Omron HEM-757

   Summary of Contents for Omron HEM-757

  • Page 1

    INSTRUCTION MANUAL Automatic Digital Blood Pressure Monitor IntelliSense™ with HEM-757 Model...

  • Page 2: Table Of Contents

    Care and Maintenance...15 Five Year Limited Warranty ...16 Specifications ...17 INTELLISENSE blood pressure monitor is a global brand name of blood pressure monitor equipped with bio-information sensing and high performance fuzzy logic technology, which are the key technologies of OMRON. With this...

  • Page 3: Introduction

    INTRODUCTION Thank you for purchasing the Omron HEM-757 IntelliSense Automatic Blood Pressure Monitor. Although your blood pressure fluctuates throughout the day, no self-adjustment is necessary as the monitor intelligently adjusts to your changing conditions. The IntelliSense monitor uses fuzzy logic intelligence to sense both your systolic and diastolic blood pressure values, and the result is personalized inflation with every reading.

  • Page 4: Know Your Unit

    KNOW YOUR UNIT Systolic Blood Pressure Display Air Jack Air Plug (Connects to the air jack) Air Tube Green Cuff Marker IntelliSense™ Progress Indicator Pulse Display Diastolic Blood Pressure Display Arm Cuff Carrying Case ON/OFF Button START Button Memory Call Button...

  • Page 5: Quick Reference Guide

    QUICK REFERENCE GUIDE 1. Avoid eating, smoking, and exercising for at least 30 minutes before taking a measurement. 2. Put your left arm through the cuff loop making sure that the bottom edge of the cuff is approximately one-half inch above the elbow.

  • Page 6: Battery Installation/replacement

    BATTERY INSTALLATION/REPLACEMENT 1. Slide the battery cover off in the direction of the arrow. 2. Install or replace 4 "AA" size batteries so + (positive) and – (negative) polarities match the polarities of the battery compartment as indicated. 3. Replace the battery cover. 4.

  • Page 7: Suggestions Before Blood Pressure Measurement

    SUGGESTIONS BEFORE BLOOD PRESSURE MEASUREMENT 1. Avoid eating, smoking, and exercising for at least 30 minutes before taking a measurement. Also rest for at least 5 minutes before taking a reading. 2. Stress raises blood pressure. Avoid taking measurements during stressful times.

  • Page 8: How To Apply The Arm Cuff

    HOW TO APPLY THE ARM CUFF 1. Insert the air plug of the arm cuff into the air jack of the monitor. 2. The cuff should be assembled correctly when it is removed from the box. If it is not, pass the end of the cuff furthest from the tubing through the metal D-ring to form a loop.

  • Page 9

    HOW TO APPLY THE ARM CUFF 6. When the cuff is positioned correctly, press the sewn hook material FIRMLY against the pile side of the cuff. 7. The cuff should be wrapped so that it fits snugly and stays in place. You should be able to fit one finger between the cuff and your arm.

  • Page 10

    HOW TO TAKE A READING Please read "A Few Suggestions Before Blood Pressure Measurement" and "How To Apply The Arm Cuff" before taking a reading. 1. Press the ON/OFF Button. a) All display symbols appear for approximately one second. This is the initial LCD test.

  • Page 11: How To Take A Reading

    HOW TO TAKE A READING 3. The IntelliSense™ Progress Indicator ( ) will flash on the display showing that the monitor’s fuzzy logic intelligence is determining your personal measurements. NOTE: Because blood pressure is being measured even during deflation, it is important to remain still until the reading is fully completed.

  • Page 12

    HOW TO TAKE A READING Special instructions regarding the inflation of the IntelliSense™ Monitor: 1. In rare circumstances the user’s physiological characteristics may require a higher level of inflation. These circumstances may include weak pulse or an unusually high systolic blood pressure.

  • Page 13: How To Use The Memory Function

    HOW TO USE THE MEMORY FUNCTION How to Use the Memory Function This monitor has the function to store fourteen measurement values. Push the Button while a ( • Maximum of fourteen stored measurement values can be called out. • For the fifteenth measurements and after, the values from the oldest measurement will be deleted.

  • Page 14: How To Use The Optional Ac Adapter

    To avoid possible damage to the monitor, use only the exclusive AC adapter (Model HEM-ADPT1) available from Omron Healthcare, Inc. Other adapters may vary in output voltage and polarities. NOTE: The monitor is designed not to draw power from the batteries when the AC adapter is in use.

  • Page 15: Troubleshooting

    TROUBLESHOOTING Error Indicator If you continue to have difficulty obtaining a reading, call OMRON HEALTHCARE CUSTOMER SERVICE TOLL FREE 1-800-634-4350. Please tell the representative you have an OMRON Model HEM-757. Cause Cuff under-inflated. Movement during measurement. Cuff over-inflated (more than 300 mmHg).

  • Page 16: Caution

    Changes or modifications not expressly approved by Omron Healthcare, Inc. could void the user’s authority to operate this product. NOTE: POTENTIAL FOR RADIO/TELEVISION INTERFERENCE (for U.S.A. only) This product has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.

  • Page 17: Care And Maintenance

    CARE AND MAINTENANCE To protect your monitor from damage, please AVOID the following: • Subjecting your monitor to extreme temperatures, humidity, and direct sunlight. • Folding the cuff and tubing tightly. • Inflating the monitor over 280 mmHg. • Disassembling the monitor. •...

  • Page 18: Five Year Limited Warranty

    FIVE YEAR LIMITED WARRANTY Your HEM-757 IntelliSense™ Automatic Blood Pressure Monitor is warranted to be free from manufacturing defects for a period of five years under normal use. The five year warranty excludes the monitor cuff. The cuff is warranted for a one year period. This warranty extends only to the original retail purchaser.

  • Page 19: Specifications

    Console Weight: Outer Dimensions: Cuff Dimensions: Accessories: NOTE: These specifications are subject to change without notice. SPECIFICATIONS HEM-757 LCD Digital Display Pressure: 0 to 280 mmHg Pulse: 40 to 180/minute Pressure: ±3 mmHg or 2% of reading Pulse: ±5% of reading...

  • Page 20

    TITLE For Customer Service Call Toll Free 1-800-634-4350 Manufactured by OMRON Distributed by: OMRON HEALTHCARE, INC. 300 Lakeview Parkway Vernon Hills, Illinois 60061 www.omron.com/ohi Copyright © 2000 OMRON HEALTHCARE, INC. ?000000-0X...
