System panel connector (10-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
•
System power LED (2-pin PWR_LED)
This 2-pin connector is for the system power LED. Connect the
chassis power LED cable to this connector. The system power
LED lights up when you turn on the system power, and blinks
when the system is in sleep mode.
•
Hard disk drive activity LED (2-pin HDD_LED)
This 2-pin connector is for the HDD Activity LED. Connect the
HDD Activity LED cable to this connector. The HDD LED lights
up or flashes when data is read from or written to the HDD.
•
ATX power button/soft-off button (2-pin PWR_BTN)
This connector is for the system power button.
•
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot
without turning off the system power.
System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
•
System power LED (2-pin PWR_LED)
This 2-pin connector is for the system power LED. Connect
the chassis power LED cable to this connector. The system
power LED lights up when you turn on the system power,
and blinks when the system is in sleep mode.
•
Hard disk drive activity LED (2-pin HDD_LED)
This 2-pin connector is for the HDD Activity LED. Connect
the HDD Activity LED cable to this connector. The HDD
LED lights up or flashes when data is read from or written to
the HDD.
•
System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The
speaker allows you to hear system beeps and warnings.
•
ATX power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power button turns
the system on or puts the system in sleep or soft-off mode depending on the
BIOS settings. Pressing the power button for more than four seconds while the
system is ON turns the system OFF.
•
Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot
without turning off the system power.
1-10

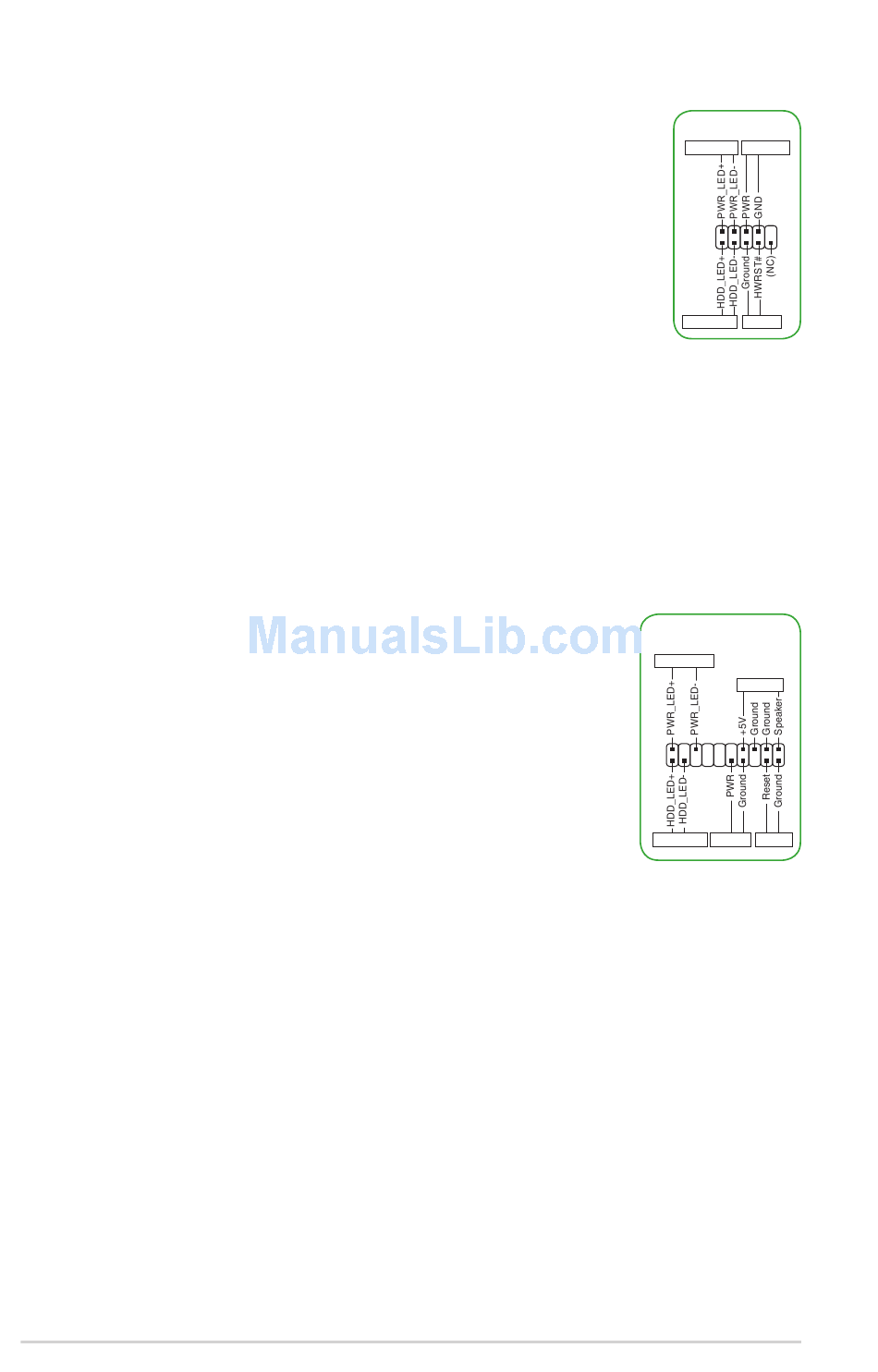

F_PANEL
+PWR LED
PWR BTN
PIN 1
+HDD_LED
RESET
F_PANEL
+PWR_LED-
SPEAKER
PIN 1
+HDD_LED- PWRSW
Motherboard Pin Definition
RESET
