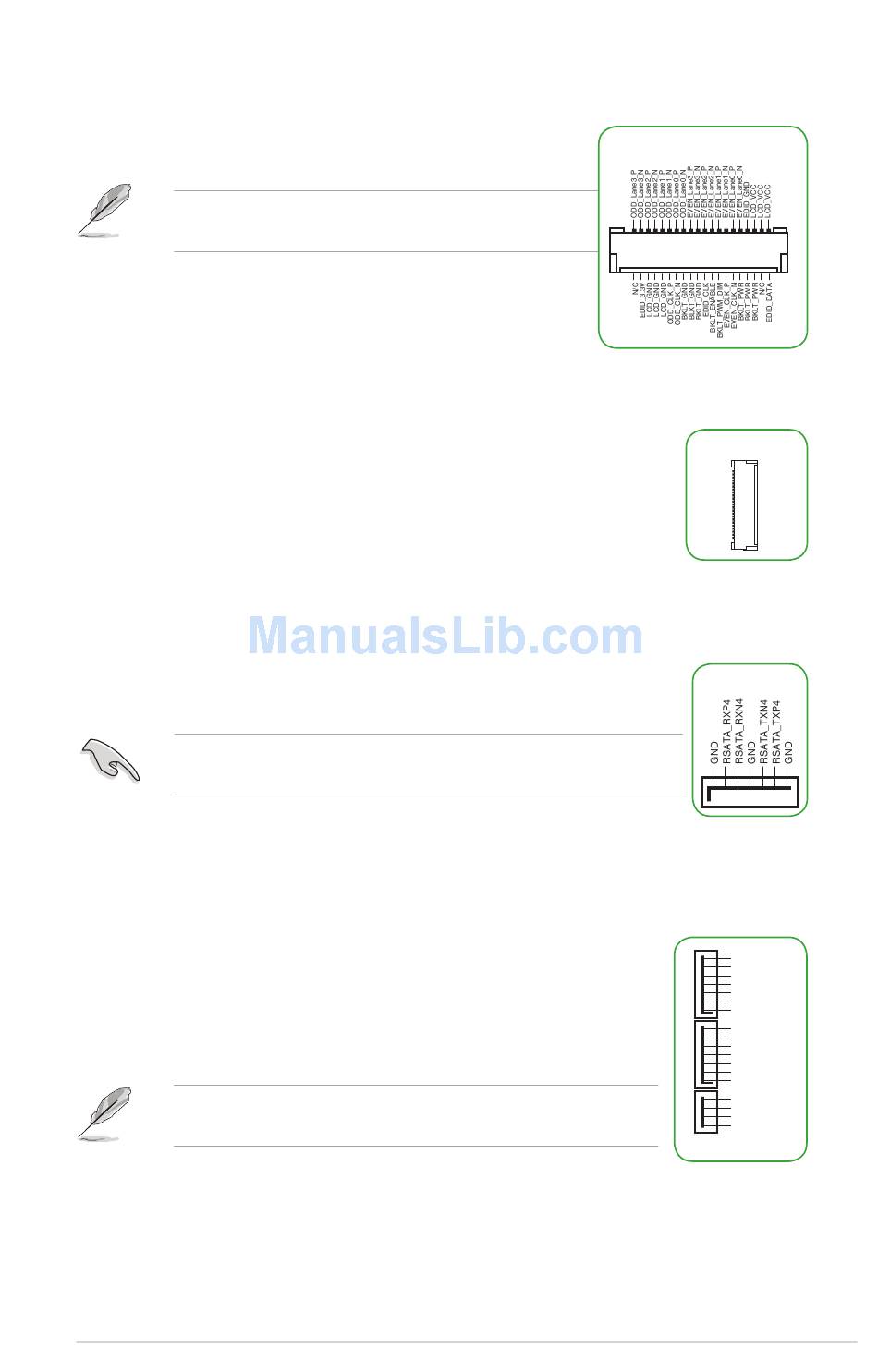

LVDS connector (40-pin LVDS)
This connector is for an LCD monitor that supports Low-
voltage Differential Signaling (LVDS) interface.
Enable LVDS in the BIOS setup if the LVDS output is
disabled by default.
13.
Embedded DisplayPort (40- pin eDP)
This connector is for an internal embedded DisplayPort connection.
14.
SATA 6.0Gb/s connectors (7-pin SATA6G)
These connectors connect to SATA 6.0 Gb/s hard disk drives via SATA
6.0 Gb/s signal cables.
You must install Windows
using Serial ATA hard disk drives.
15.
SATA EXPRESS connector (7-pin SATA6G, SATAEXPRESS)
This connector connects to SATA 6.0 Gb/s hard disk drives via SATA
6.0 Gb/s signal cables.
If you installed SATA hard disk drives, you can create a RAID 0, 1,
5, and 10 configuration with the Intel
through the onboard Intel
The SATAEXPRESS connector can support one SATA Express
device or two SATA devices.
Motherboard Pin Definition
XP Service Pack 3 or later version before
®
Rapid Storage Technology
®
chipset.
®
LVDS
PIN 1
PIN 21
EDP(Back)
PIN 1
SATA6G
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
Floating
Device_Reset
GND
Detection
SATAEXPRESS
PIN 20
PIN 40
1-9
