Pro-Form Performance 1500 User Manual page 14

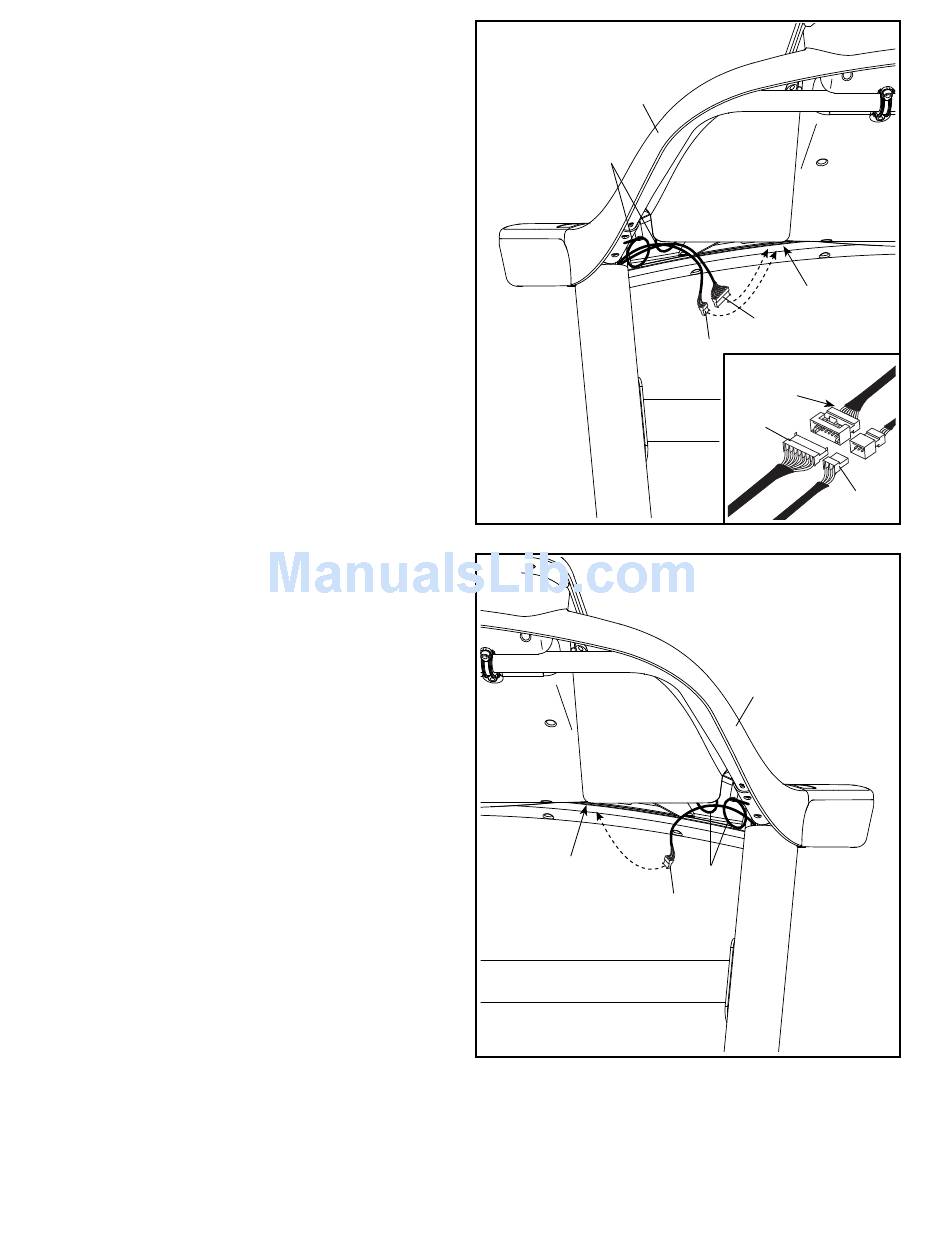

15. Insert the Upright Wire (81) and the handrail wire
(F) through the two indicated looped ties on the
console assembly (G).
See the inset drawing. Connect the Upright
Wire (81) and the handrail wire (F) to the console
wires. The connectors should slide together
easily and snap into place. If they do not, turn
one connector and try again. IF YOU DO NOT
CONNECT THE CONNECTORS PROPERLY,
THE CONSOLE MAY BECOME DAMAGED
WHEN YOU TURN ON THE POWER.
Insert all excess wires into the console assembly
(G). Then, pull the two ties tight against the wires
and cut off the ends of the ties.
16. Insert the handrail wire (F) on the left side
through the two indicated looped ties on the con-
sole assembly (G) and connect the handrail wire
to the console wire.
Insert all excess wires into the console assembly
(G). Then, pull the two ties tight against the wires
and cut off the ends of the ties.
15
G
Ties
16
Console
Wire
14
Console
Wire
81
F
Console
Wires
81
G
Ties
F
F
