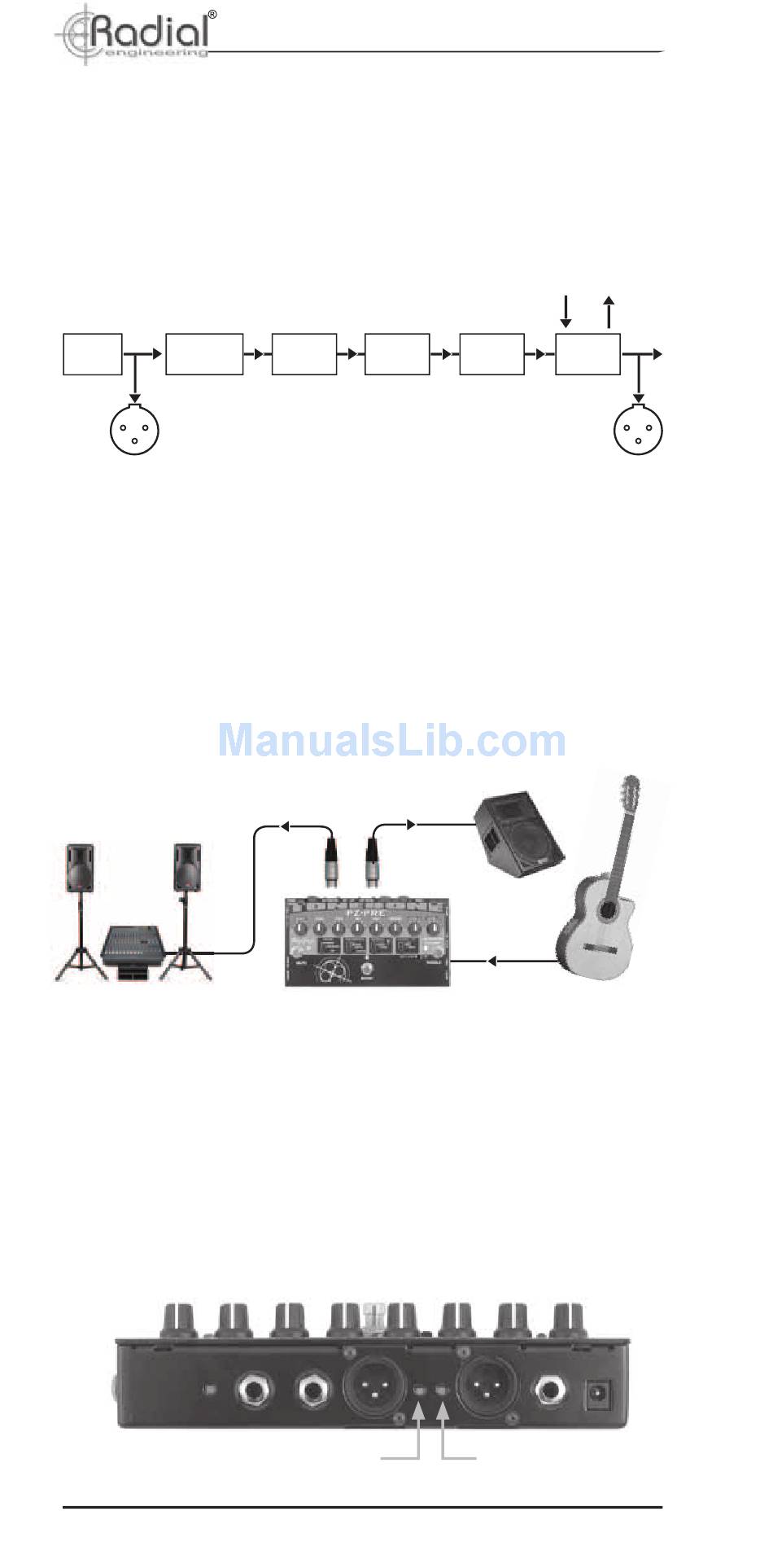

OUTPUT SECTION

¼" Instrument Amp Output
The ¼" OUTPUT jack connects to the musician's on-stage
amplifi er. This output is at the end of the PZ-Pre signal path and
is affected by all the controls.
Low-Cut
Input
Filter
Dry
Pre-EQ
Out
Post-EQ DI Output
This balanced XLR output is another active direct box. It produces
a 600 Ohm, mic-level signal suitable for connecting to mixing
consoles. The POST-EQ XLR OUT comes at the end of the PZ-
Pre signal path after the fi lters, equalizer, PHASE, BOOST and
LOOP functions. It is intended to feed a stage monitoring system
or in-ear monitors allowing the player to control their on-stage
tone through the PZ-Pre controls.
180° Polarity Reverse
The POST-EQ XLR balanced output features a polarity reverse
for absolute phase alignment. This recessed switch will invert the
signal polarity of the POST-EQ XLR output by reversing pins-2
and 3 at the XLR connector. The default position for the switch is
pushed out where pin-2 is positive. This is the AES standard for
XLR connectors and is sometimes called 'pin-2 hot'.
Radial Engineering Ltd.
Notch 3-Band
Filter EQ
Dry Wet
Pre-EQ Post-EQ
XLR OUTS
Ground Lift
8
True to the Music
Send Recv
Power Effect
Boost Loop
Wet
Post-EQ
Out
XLR OUTS
Polarity Reverse
PZ-Pre ™ User Guide
