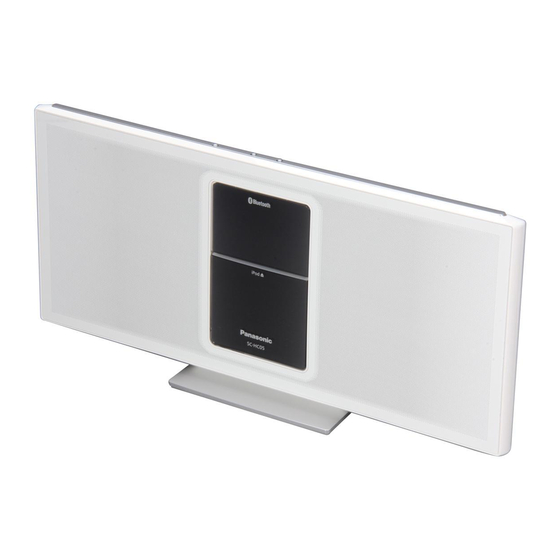

Panasonic SC-HC05 Operating Instructions

Operating Instructions
Compact Stereo System
Model No.
Dear Customer
Thank you for purchasing this system.
For optimum performance and safety, read these
instructions fully before you connect, operate or
adjust this system.
Keep this manual for future reference.
Your system and the illustrations can look
differently.
Note:
"EB" on the packaging indicates the United Kingdom.
Panasonic Corporation
Web Site: http://panasonic.net
© Panasonic Corporation 2011
Caution for AC mains lead
Before use
For the United Kingdom, Saudi Arabia and Kuwait
Remove the connector cover.
For your safety, please read the following text carefully.
How to replace the fuse
This appliance is supplied with a moulded three pin
The location of the fuse differ according to the type of
mains plug for your safety and convenience.
AC mains plug (figures A and B). Confirm the AC mains
A 5-ampere fuse is fitted in this plug.
plug fitted and follow the instructions below. Illustrations
Should the fuse need to be replaced please ensure that
may differ from actual AC mains plug.
the replacement fuse has a rating of 5-ampere and that
it is approved by ASTA or BSI to BS1362.
1. Open the fuse cover with a screwdriver.
Check for the ASTA mark or the BSI mark on the
Figure A
body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from your
local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE
FOR THE SOCKET OUTLET IN YOUR HOME
Figure B
THEN THE FUSE SHOULD BE REMOVED AND Fuse cover
THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED
INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as stated below.
If in any doubt please consult a qualified electrician.
2. Replace the fuse and close or attach the fuse cover.
IMPORTANT
Figure A
The wires in this mains lead are coloured in
accordance with the following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed
as follows:
The wire which is coloured Blue must be connected
to the terminal which is marked with the letter N or Fuse (5 ampere)
coloured Black or Blue.
Figure B
The wire which is coloured Brown must be connected
to the terminal which is marked with the letter L or
coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO
THE EARTH TERMINAL WHICH IS MARKED WITH
THE LETTER E, BY THE EARTH SYMBOL OR
COLOURED GREEN OR GREEN/YELLOW. Fuse (5 ampere)
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
HC05_EB_gb.indd 1 HC05_EB_gb.indd 1
Information for Users on Collection and Disposal of
WARNING:
Old Equipment and used Batteries
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
OR PRODUCT DAMAGE,
• DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT
NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
SC-HC05
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS
WELL VENTILATED. TO PREVENT RISK OF
ELECTRIC SHOCK OR FIRE HAZARD DUE TO
OVERHEATING, ENSURE THAT CURTAINS AND
ANY OTHER MATERIALS DO NOT OBSTRUCT THE
VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT'S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN
ENVIRONMENTALLY FRIENDLY MANNER.
For the United Kingdom, Australia and New Zealand
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
For others
THIS UNIT IS INTENDED FOR USE IN TROPICAL
CLIMATES.
The socket outlet shall be installed near the equipment
and easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from AC
EU
receptacle.
This product may receive radio interference caused
by mobile telephones during use. If such interference
is apparent, please increase separation between the
EB GN GS
En product and the mobile telephone.
CAUTION!
Danger of explosion if battery is incorrectly replaced.
RQTX1318-B
Replace only with the same or equivalent type
L0311HH0
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer's instructions.
WARNING
Risk of fire, explosion and burns. Do not recharge,
disassemble, heat above 60°C or incinerate.
WARNING
Keep the Button-Type battery out of the reach of
children. Never put Button-Type battery in mouth. If
swallowed call your doctor.
Product identification marking is located on the bottom
of unit.
Safety precautions
Placement
Foreign matter
Set the system up on an even surface away from Do not let metal objects fall inside the system. This can
direct sunlight, high temperatures, high humidity, and
cause electric shock or malfunction.
excessive vibration. These conditions can damage the
cabinet and other components, thereby shortening the
Do not let liquids get into the system. This can
service life of the system.
cause electric shock or malfunction. If this occurs,
immediately disconnect the system from the power
Do not place heavy items on the system.
supply and contact your dealer.
Do not spray insecticides onto or into the system. They
contain flammable gases which can ignite if sprayed
Voltage
into the system.
Do not use high voltage power sources. This can
overload the system and cause a fire.
Service
Do not use a DC power source. Check the source
carefully when setting the system up on a ship or other Do not attempt to repair this system by yourself. If
place where DC is used.
sound is interrupted, indicators fail to light, smoke
appears, or any other problem that is not covered in
these instructions occurs, disconnect the AC mains
lead and contact your dealer or an authorised service
AC mains lead protection
centre. Electric shock or damage to the system can
occur if the system is repaired, disassembled or
Ensure the AC mains lead is connected correctly and
reconstructed by unqualified persons.
not damaged. Poor connection and lead damage can
cause fire or electric shock. Do not pull, bend, or place
Extend operating life by disconnecting the system from
heavy items on the lead.
the power source if it is not to be used for a long time.
Grasp the plug firmly when unplugging the lead. Pulling
the AC mains lead can cause electric shock.
Do not handle the plug with wet hands. This can cause
electric shock.
Supplied accessories
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
Check and identify the supplied accessories.
batteries should not be mixed with general
Use numbers indicated in parentheses when asking for replacement parts. (Product numbers correct as of March
household waste.
2011. These may be subject to change.)
For proper treatment, recovery and recycling
of old products and used batteries, please
AC mains lead
take them to applicable collection points, in
For the United Kingdom, Saudi Arabia and Kuwait
accordance with your national legislation
and the Directives 2002/96/EC and
2006/66/EC.
By disposing of these products and batteries
(K2CZ3YY00005)
correctly, you will help to save valuable
resources and prevent any potential
negative effects on human health and the
For Australia and New Zealand
environment which could otherwise arise
from inappropriate waste handling.
For more information about collection and
recycling of old products and batteries,
please contact your local municipality, your
(K2CJ2DA00010)
waste disposal service or the point of sale
where you purchased the items.
Penalties may be applicable for incorrect
For Thailand
disposal of this waste, in accordance with
national legislation.
For business users in the European
Union
(K2CP2CA00001)
If you wish to discard electrical and
electronic equipment, please contact your
dealer or supplier for further information.
For others
[Information on Disposal in other
Countries outside the European Union]
These symbols are only valid in the
European Union. If you wish to discard
these items, please contact your local
(K2CQ2CA00007)
authorities or dealer and ask for the correct
method of disposal.
Note for the battery symbol (bottom two
symbol examples):
This symbol might be used in combination
with a chemical symbol. In this case it
complies with the requirement set by the
Directive for the chemical involved. For the United Kingdom and Ireland
Sales and Support Information
Customer Care Centre
• For customers within the UK: 0844 844 3852
• For customers within Ireland: 01 289 8333
• Visit our website for product information
www.panasonic.co.uk
• E-mail: customer.care@panasonic.co.uk
Direct Sales at Panasonic UK
• For customers: 0844 844 3856
• Order accessory and consumable items for your product with ease and confidence by phoning our Customer Care
Centre Monday–Thursday 9:00 a.m.– 5:30 p.m., Friday 9:30 a.m.– 5:30 p.m. (Excluding public holidays).
• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK Ltd.
• It couldn't be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products, take a browse on our
website for further details.
Specifications
Amplifier section
RMS output power stereo mode
Front Ch (both ch driven)
20 W per channel (6 ), 1 kHz, 10% THD
Total RMS stereo mode power
Except the United Kingdom, Australia and New Zealand
PMPO output power
Terminal section
AUX (rear)
Terminal Stereo, 3.5 mm jack
Speaker section
Type 2 way, 2 speaker system (passive radiator)
Speaker unit(s)
Woofer 6.5 cm cone type x 1/ch
Tweeter 1.5 cm piezo type x 1/ch
Passive radiators 8 cm x 2/ch
Impedance
Bluetooth ® section
Bluetooth ® system specification Ver. 2.1 + EDR
Wireless equipment classification
Class 2 (2.5 mW)
Support profiles A2DP, AVRCP
Frequency band 2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Driving distance 10 m line of sight
(iPhone 4, at height 1 m, in MODE 1)
Getting started
Remote control
Before using
Remove the insulation sheet before you use the remote
control for the first time.
1 x Remote control
(RAK-SC989ZM)
1 x Lithium Button-Type battery
(Battery is already installed in the remote control.)
Replacing the battery
Replace the remote control battery when it stops
operating or when the range is decreased. Replace
with a new battery (CR2025) only.
Stopper
1 While pressing the stopper, pull out the battery
holder.
2 Insert a new battery with the (+) side facing up.
3 Push the battery holder back fully.
CAUTION!
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile
exposed to direct sunlight for a long period of time
with doors and windows closed.
• Remove the battery if you do not use the remote
control for a long period of time. Keep in a cool, dark
area.
Overview of controls
iPod MENU
OK
SELECTOR LINK MODE
PAIRING
General
Power supply
For the United Kingdom,
Australia and New Zealand
AC 220 to 240 V, 50 Hz
Standby/on switch [`], [1]
A
40 W
For others AC 110 to 240 V, 50/60 Hz Press to switch the unit from on to standby mode
or vice versa. In standby mode, the unit is still
Power consumption 16 W
consuming a small amount of power.
450 W
Dimensions (W x H x D)
370 mm x 176 mm x 85 mm
View the iPod or iPhone menu
B
(D = 121 mm dock open)
(D = 59 mm without stand)
Select an item
C
Mass 1.8 kg
Operating temperature range 0°C to +40°C
Confirm a selection
D
Operating humidity range Set or cancel the auto off function
35% to 80% RH (no condensation)
E Select iPod, Internet radio, Bluetooth
Power consumption in standby mode
mode
0.2 W (approximate)
Bluetooth ® is the default mode except when an
iPod or iPhone is connected.
Note:
1. Specifications are subject to change without notice.
F Start Bluetooth ® pairing mode
6
Mass and dimensions are approximate.
Select Bluetooth ® link mode
2. Total harmonic distortion is measured by the digital
Adjust the audio input level in AUX mode
spectrum analyzer.
G Adjust the volume of the system
The setting returns to the default when you
disconnect the AC mains lead.
H Mute the sound of the system
In iPod mode
In Bluetooth mode : The light blue and blue status
®
In AUX mode
This function does not work when the system is
pairing or waiting to connect with a Bluetooth
device.
Press the button again to cancel.
Mute is also cancelled when you adjust the volume
or when you switch off the system.
Connect the AC mains lead
For the United Kingdom, Saudi Arabia and Kuwait
READ THE CAUTION FOR AC MAINS LEAD
BEFORE CONNECTION.
Rear view
Insulation sheet
To household mains socket
• Use the included AC mains lead with this system only.
• Do not use an AC mains lead from other equipment.
Conserving power
The system consumes approximately 0.2 W when it is
Battery holder
in standby mode. Disconnect the power supply if you
do not use the system.
Some settings will be lost after you disconnect the
system. You have to set them again.
Speakers
• Do not remove the speaker nets.
• These speakers do not have magnetic shielding. Do
not put them near TVs, PCs or other devices easily
influenced by magnetism.
• When you play at high levels for a long period, it can
cause damage to the system and decrease the life of
the system.
• Decrease the volume when you play distorted sound
to prevent damage.
Top view
MUTE
I Start or pause playback
J Skip or search track
K Power indicator
On : The system is on
Off : The system is in standby mode
L iPod or iPhone dock
M Status indicator
Green : iPod mode
® or AUX Blue : Bluetooth ® mode
Light blue : Set or cancel the auto off function
Mute function is on
Off : AUX mode
The green status indicator blinks each time a
remote control button is pressed.
N [PUSH CLOSE]
Press while closing the dock.
O Remote control sensor
Point the remote control at the remote control
sensor, away from obstacles, at a maximum range
of 7 m directly in front of the main unit.
: The light blue and green
status indicators blink
alternately.
indicators blink alternately.
: The light blue status indicator
blinks continuously.
®
3/16/2011 2:06:48 PM 3/16/2011 2:06:48 PM
