Page 1: Installation Instructions
Owner’s Guide Installation Instructions Commercial Storage Tank This storage tank must be installed and serviced by a qualified person. Please leave this guide with the householder. - Page 2 “Warning: Plumber – Be Aware” statement commencing on page 22. PATENTS This storage tank may be protected by one or more patents or registered designs in the name of Rheem Australia Pty Ltd. TRADEMARKS ® Registered trademark of Rheem Australia Pty Ltd.
-
Page 3: Table Of Contents
CONTENTS RESPONSIBLE OFFICER - We recommend you read pages 4 - 12. The other pages are intended for the installer but may be of interest. About Your Storage Tank ......................4 Maintenance Requirements ......................7 Water Supplies ..........................9 Save A Service Call ........................12 Installation .......................... -
Page 4: About Your Storage Tank

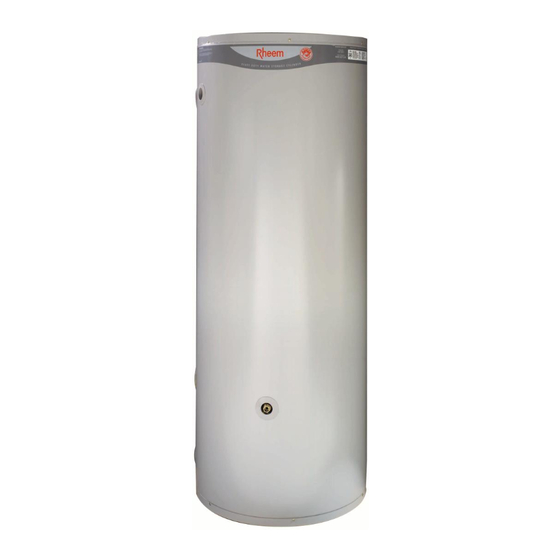

MODEL TYPE ® The Rheem Commercial hot water storage tank you have chosen can be installed indoor or outdoor and is either a 610 340 or 610 430 model. Water is stored in a vitreous enamel lined steel cylinder and heated by an external primary heating source. - Page 5 If a remote thermostat (Tankstat) is fitted to the storage tank and the electrical conduit is damaged, it must be replaced by a qualified person in order to avoid a hazard. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
- Page 6 ABOUT YOUR STORAGE TANK HOW DO I KNOW IF THE STORAGE TANK IS INSTALLED CORRECTLY? Installation requirements are shown on pages 29. The storage tank must be installed: by a qualified person, and in accordance with the installation instructions, and ...
-
Page 7: Maintenance Requirements
Note: The major service and routine replacement of any components, such as the anode and relief valve(s), are not included in the Rheem warranty. A charge will be made for this work. Only genuine replacement parts should be used on this storage tank. - Page 8 7. It is very important the lever is raised and lowered gently. If water does not flow freely from the drain line when the lever is lifted, then the water heater should be checked by Rheem Service or their nearest Accredited Service Agent. The expansion control valve should be checked for performance or replaced at intervals not exceeding five (5) years, or more frequently in areas where there is a high incidence of water deposits.
-
Page 9: Water Supplies
If an incorrect colour coded anode is used in the storage tank, any resultant faults will not be covered by the Rheem warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the storage tank cylinder. - Page 10 Where the saturation index exceeds +0.40, the water is very scaling. An expansion control valve must be fitted on the cold water line after the non-return valve to protect and for the Rheem warranty to apply to the temperature pressure relief valve and storage tank cylinder. Water which is scaling may be treated with a water softening device to reduce the saturation index of the water.
- Page 11 The storage tank and its components are not suitable for certain water chemistries. Those chemistries are listed below. If the storage tank is connected at any time to a water supply with the following water chemistry, the Rheem warranty will not cover any resultant faults on the components listed below: Water Chemistry Component Total Dissolved Solids (TDS) >...
-
Page 12: Save A Service Call
Heavy flows of hot water until storage tank is cold - then stops until water reheats The primary heating source must be shut down and the energy source isolated. Phone Rheem Service or their nearest Accredited Service Agent to arrange for inspection. -
Page 13: Installation
INSTALLATION THIS STORAGE TANK IS NOT SUITABLE FOR POOL HEATING INSTALLATION STANDARDS The storage tank must be installed: by a qualified person, and in accordance with the installation instructions, and in compliance with Standard AS/NZS 3500.4 and all local codes and regulatory authority requirements. In New Zealand the installation must also conform to the New Zealand Building Code. - Page 14 INSTALLATION Note: The storage tank should not be placed in direct contact with a concrete surface that is less than two months old and not fully cured as this may attack the metal coating of the storage tank base. A moisture barrier should be used between the two surfaces in this instance.
- Page 15 INSTALLATION HOT WATER DELIVERY This storage tank can deliver water at temperatures which can cause scalding. It is necessary and we recommend that a temperature limiting device be fitted between the storage tank and the hot water outlets in any ablution and public areas such as bathrooms, ensuites or public amenities to reduce the risk of scalding.
- Page 16 A temperature limiting device cannot be installed in circulated hot water flow and return pipe work unless it is specifically designed to do so, such as the Rheem Guardian warm water system. The tempered water from a temperature limiting device cannot be circulated. Where a circulated hot water flow and return system is required in a building, a temperature limiting device can only be installed on a dead leg, branching off the circulated hot water flow and return pipe.
- Page 17 If an incorrect colour coded anode is used in the storage tank, any resultant faults will not be covered by the Rheem warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the storage tank cylinder.
- Page 18 INSTALLATION DIMENSIONS AND TECHNICAL DATA 610 340 50 610 430 50 Model Storage Capacity litres Hot Water Delivery litres Maximum Storage Temperature °C Nominal Dimensions (mm) 1640 1840 1298 1482 degrees degrees Weight empty Manifold - minimum centre to centre Technical data is subject to change.
- Page 19 INSTALLATION TYPICAL INSTALLATION – OUTDOOR LOCATION OUTDOOR LOCATIONS OUTDOOR LOCATIONS TYPICAL INSTALLATION – INDOOR LOCATION INDOOR LOCATIONS INDOOR LOCATIONS...
-
Page 20: Connections - Plumbing
CONNECTIONS – PLUMBING All plumbing work must be carried out by a qualified person and in accordance with the Standard AS/NZS 3500.4 and all local codes and regulatory authority requirements. In New Zealand the installation must also conform to the New Zealand Building Code. CONNECTION SIZES ... - Page 21 CONNECTIONS – PLUMBING EXPANSION CONTROL VALVE Local regulations may make it mandatory to install an expansion control valve (ECV) in the cold water line to the storage tank. In other areas, an ECV is required if the saturation index is greater than +0.4 (refer to “Water Supplies”...
- Page 22 CONNECTIONS – PLUMBING WARNING: Plumber – Be Aware The primary flow and return pipes between the storage tank(s) and the primary water heating source, including the solar hot and solar cold pipes between the solar storage tank(s) and the solar collectors, MUST BE of copper.
-
Page 23: Connections - Electrical
Wiring Rules AS/NZS 3000 and all local codes and regulatory authority requirements. REMOTE THERMOSTAT It is possible to connect a remote thermostat (Tankstat), Rheem part number 56609162, to the storage tank. The thermostat well is located at the front of the storage tank at the same height as the primary return... -
Page 24: Multiple Installations
MULTIPLE INSTALLATIONS A multiple installation of Rheem storage tanks on a single manifold or multiple manifolds is possible, using the Rheem Equa-Flow ® manifold system, where large volumes of hot water is required. The Equa-Flow principle will function with storage tanks in line, around a corner or in rows back to back... - Page 25 MULTIPLE INSTALLATIONS In Line Manifold Single Bank of Storage Tanks Multiple Banks of Storage Tanks Angle Manifold Back to Back Manifold TPR Valve Drain Line Common Discharge Point...
- Page 26 MULTIPLE INSTALLATIONS MANIFOLD ARRANGEMENT – SOLAR LOLINE INSTALLATION Hot Manifold Assembly Solar Primary Flow Manifold Assembly Solar Commercial Loline Storage Tanks Manifold Details Cold Manifold Assembly...
- Page 27 MULTIPLE INSTALLATIONS INSTALLATION DIMENSIONS – RHEEM COMMERCIAL STORAGE TANKS In Line Manifold Angle Manifold Back to Back Manifold Installation Layout Minimum Dimensions Notes INSTALLATION LAYOUT MINIMUM DIMENSIONS MODEL Minimum recommended space between Model wall and back of storage tank is 100 mm.
- Page 28 MULTIPLE INSTALLATIONS MANIFOLD ARRANGEMENT – HEAT PUMP STORAGE TANK INSTALLATION Hot Manifold Assembly Heat Pump Primary Flow Manifold Assembly Commercial Heat Pump Storage Tanks Commercial Heat Pump Storage Tanks Cold Manifold Assembly Manifold Details Manifold Details Commercial Heat Pump Storage Tanks Manifold Details...
- Page 29 MULTIPLE INSTALLATIONS TYPICAL INSTALLATION – HEAT PUMP WATER HEATERS LEGEND TYPICAL INSTALLATION – STORAGE TANKS FOR HEAT PUMPS TYPICAL HEAT PUMP INSTALLATION WITH RECIRCULATION BOOST LEGEND STORAGE TANKS COMMERCIAL HEAT PUMP TYPICAL INSTALLATION...
- Page 30 MULTIPLE INSTALLATIONS MANIFOLD ARRANGEMENT – RAYPAK INSTALLATION Hot Manifold Assembly Heating Manifold Assembly Cold Manifold Assembly...
- Page 31 TYPICAL INSTALLATION – RAYPAK WATER HEATERS LEGEND LEGEND TYPICAL INSTALLATION – STORAGE TANKS FOR RAYPAK RAYPAK - TWO WATER HEATERS, TWO TANKS LEGEND RAYPAK - TWO WATER HEATERS, TWO TANKS RHEEM 610 SERIES STORAGE TANKS WITH RAYPAK WATER HEATER TYPICAL INSTALLATION...
-
Page 32: Commissioning
COMMISSIONING TO FILL AND TURN ON THE STORAGE TANK The power supply to the primary heating source and circulating pumps must not be switched on until the storage tank is filled with water and a satisfactory megger reading is obtained. ... -
Page 33: Draining The Storage Tank
DRAINING THE STORAGE TANK Warning: Exercise care, as water discharged from the storage tank may be of a very high temperature. To drain the storage tank: “To Turn Off The Storage Tank” Turn off the storage tank (refer to on page 32). - Page 34 This page is intentionally blank.
- Page 35 2.1 The decision of whether to repair or replace a faulty component is at Rheem’s sole discretion. 2.2 If you require a call out and we find that the fault is not covered by the Rheem warranty, you are responsible for our standard call out charge.
-
Page 36: Warranty
3. WHAT IS COVERED BY THE RHEEM WARRANTY FOR THE STORAGE TANKS DETAILED IN THIS DOCUMENT 3.1 Rheem will repair or replace a faulty component of your storage tank if it fails to operate in accordance with its specifications as...
