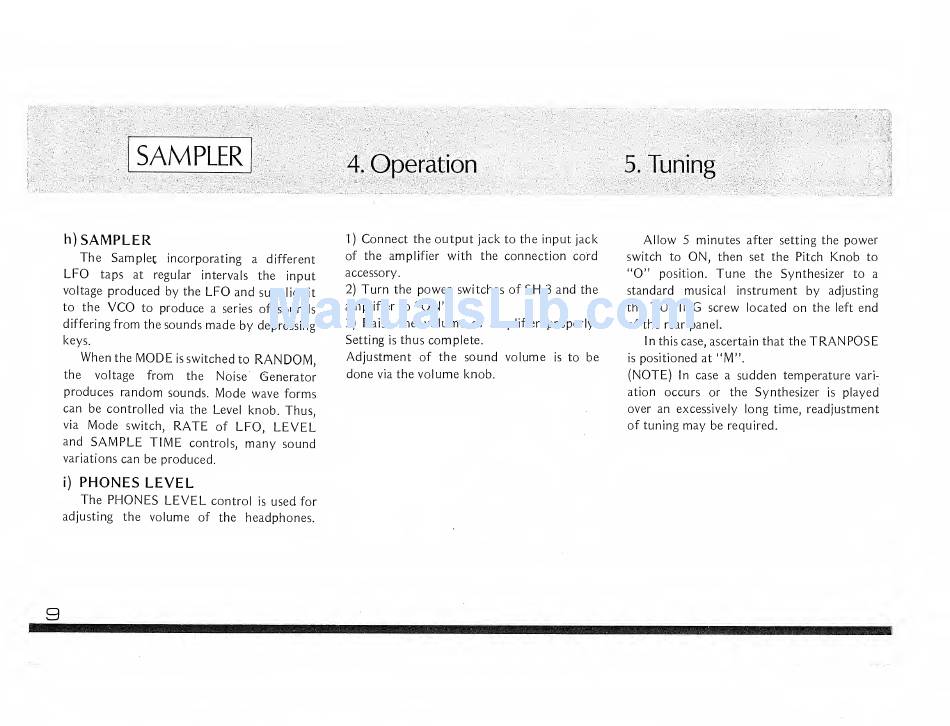

SAMPLER
4.
Operation
5.
Tuning
h)
SAMPLER
The
Sampler, incorporating
a different
LFO
taps
at regular
intervals
the
input
voltage produced by
the
LFO
and
supplies
it
to the
VCO
to
produce
a series
of sounds
differing
from
the sounds
made
by
depressing
keys.
When
the
MODE
is
switched
to
RANDOM,
the voltage from
the Noise
Generator
produces random
sounds.
Mode
wave forms
can be
controlled
via
the Level knob. Thus,
via
Mode
switch,
RATE
of
LFO, LEVEL
and
SAMPLE
TIME
controls,
many
sound
variations can be produced.
i)
PHONES LEVEL
The
PHONES LEVEL
control
is
used
for
adjusting the
volume
of the headphones.
1
Connect
the
output
jack to the input jack
of the amplifier with the connection cord
accessory.
2)
Turn
the
power
switches of
SH-3 and
the
amplifier to
"ON".
3)
Raise the
volume
of
amplifier properly.
Setting
is
thus complete.
Adjustment of the sound volume
is
to
be
done
via
the
volume
knob.
Allow
5
minutes
after setting the
power
switch to
ON,
then
set
the
Pitch
Knob
to
"O"
position.
Tune
the Synthesizer
to a
standard musical instrument by adjusting
the
TUNING
screw located on the
left
end
of
the rear panel.
In this case, ascertain that the
TRANPOSE
is
positioned at
"M".
(NOTE)
In case a
sudden temperature
vari-
ation occurs or the Synthesizer
is
played
over an excessively long time, readjustment
of tuning
may
be
required.
3
