Summary of Contents for SimPal SimPal-T2
- Page 1 SimPal-T2 GSM Temperature Alerter User Manual Manual version 1.1...
- Page 2 With built-in power capacitor, SimPal-T2 will send SMS to report power loss and restoring. SimPal-T2 is easy to set up. After installing a SIM card and plugging it into the wall socket and then it working. It mainly applied for house and office usage and wildly uses in computer room, warehouse, baby room and elderly room etc.
-
Page 3: Table Of Contents
SIMPAL-T2 GSM Temperature Alerter USER MANUAL For your safety ..............5 Exception clause ............. 6 Chapter 1 Features and accessories ......... 7 1.1 Main function ............7 1.2 Package contents ............8 1.4 Light indicator and “Beep” warning tone ....9 Chapter 2 Operation guide .......... - Page 4 SIMPAL-T2 GSM Temperature Alerter USER MANUAL 2.7 Timed alarm of built-in sensor ........ 16 2.8 Temperature difference alarm of built-in sensor ..19 2.9 External power supply notification ......19 2.10 Weak GSM signal notification ....... 20 2.11 LED indicators turning ON/OFF ......20 2.12 Resetting the alerter ..........
-
Page 5: For Your Safety
1. Purchase a GSM SIM card (mobile phone card) from GSM network service provider and install it in the alerter. This SIM card number is referred as SimPal-T2 number on this brochure. 2. The user needs to activate the Caller ID Presentation function of SIM card, and deactivate PIN code of the SIM. -
Page 6: Exception Clause
2. For the latest alerter information, please visit: http://www.simpal.cn. We don’t guarantee for the document veracity, reliability or any content except regulate in proper laws. Including no guarantee for alerter suitable market or suitable area promise. -
Page 7: Chapter 1 Features And Accessories
SIMPAL-T2 GSM Temperature Alerter USER MANUAL Chapter 1 Features and accessories 1.1 Main function • This alerter uses a GSM SIM card. • Remotely operated by SMS command: The alerter is programmed and set by sending SMS commands. • Input: 110V-250V/50Hz. -
Page 8: Package Contents

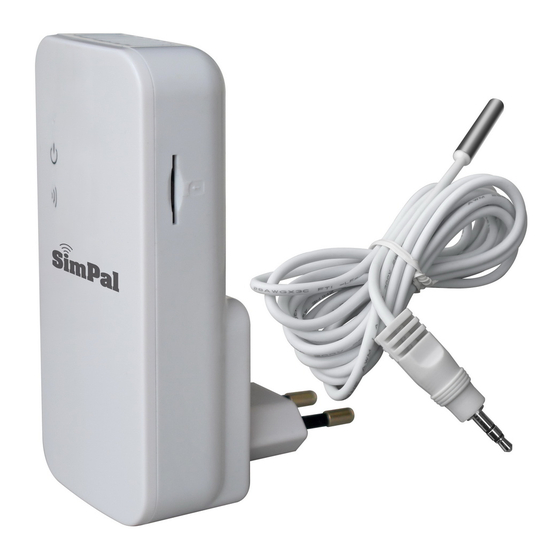

SIMPAL-T2 GSM Temperature Alerter USER MANUAL 1.2 Package contents GSM Temperature Alerter（1 unit） Temperature sensor（1 unit） User manual（1 unit）... -
Page 9: Light Indicator And "Beep" Warning Tone
SIMPAL-T2 GSM Temperature Alerter USER MANUAL 1.3 Alerter instructions 1 USB data port Power indicator 2 Reset button GSM indicator 3 Temperature sensor Port 6 SIM card slot 7 Built-in Temperature sensor Figure 1: Alerter instructions 1.4 Light indicator and “Beep” warning tone... - Page 10 SIMPAL-T2 GSM Temperature Alerter USER MANUAL Indicator Action Status Constant Power supply connected. light No SIM card, or the SIM card is Turning off failed. Flash Searching GSM network. GSM (Blue) slowly light Flash fast Sending SMS or alerter defective.
-
Page 11: Chapter 2 Operation Guide
SIMPAL-T2 GSM Temperature Alerter USER MANUAL Chapter 2 Operation guide 2.1 Install the SIM card and external temperature sensor • Insert the SIM card to card slot, ensuring the golden contact is upside, and beveled corner is same direction as icon show on SIM card slot. -
Page 12: Define The Users
SIMPAL-T2 GSM Temperature Alerter USER MANUAL that this alerter is used in an area with a strong GSM network signal. • For the first time use, the user should perform a test-run by sending SMS to the alerter. This allows the user to check the GSM network connection of the alerter. - Page 13 SIMPAL-T2 GSM Temperature Alerter USER MANUAL number before setting the new one. (Refer to Chapter 2.12) • Successful SMS reply New master number set successfully. Successful SMS reply will be sent to the new Master user. Then the old Master user’s number will not be able to control the alerter anymore.
-
Page 14: Change Password
SIMPAL-T2 GSM Temperature Alerter USER MANUAL All family numbers have been deleted. Family alert function ON/OFF. 2.4 Change password Method The Master user sends following SMS message in order to: Change the password: #11#Oldpassword#Newpassword# (10) & The password is a four digit number. -
Page 15: Over-Temperature Alarm
SIMPAL-T2 GSM Temperature Alerter USER MANUAL 2.6 Over-temperature alarm A range of temperature can be pre-set onto the alerter. In this case, if the surroundings temperature is detected out of or back within the pre-set temperature range, the alerter will auto-send the SMS alarm message to users’... -
Page 16: Timed Alarm Of Built-In Sensor
SIMPAL-T2 GSM Temperature Alerter USER MANUAL Current temperature reading: ** 2.6.2 External sensor over-temperature alarm Method The Master user sends following SMS message to alerter in order to: Enabled the external sensor over-temperature alarm: #16#1# (16) Set external sensor over-temperature alarm limits:... - Page 17 SIMPAL-T2 GSM Temperature Alerter USER MANUAL alerter will send out alarm message. When beyond this duration, if the surrounding temperature detected by built-in sensor is beyond another limits value MinTemp2 and MaxTemp2, the alerter will send out alarm message too.
- Page 18 SIMPAL-T2 GSM Temperature Alerter USER MANUAL Saturday to Sunday • StartTime and EndTime: Be consists of 4 digits (hh:mm) and works on a 24 hour clock. The StartTime and EndTime should be in the same day, and the EndTime must be later than StartTime. Default settings: 0700 to 2100.
-
Page 19: Temperature Difference Alarm Of Built-In Sensor
SIMPAL-T2 GSM Temperature Alerter USER MANUAL • Successful SMS reply Schedule temperature alert function OFF 2.8 Temperature difference alarm of built-in sensor A time period value and temperature difference value can be pre-set onto the alerter. In this case, if the surroundings temperature difference reaches to the pre-set value within the pre-set time period, a SMS alarm message will be auto-sent to user’s mobile phone. -
Page 20: Weak Gsm Signal Notification
SIMPAL-T2 GSM Temperature Alerter USER MANUAL #04#1# (27) No SMS notification upon the power supply changing: #04#0# (28) • Successful SMS reply Mains power SMS alert ON/OFF 2.10 Weak GSM signal notification The alerter will default send a SMS notification to notify the user when the GSM signal strength is too weak. -
Page 21: Resetting The Alerter
SIMPAL-T2 GSM Temperature Alerter USER MANUAL 2.12 Resetting the alerter • This function resets all programmed settings to their original values, including cleaning all user number, timing parameter and temperature parameter. • If the setting status is wrong or the malfunctions can’t be corrected, users can restore the alerter to its original status to make it work normally. -
Page 22: Chapter 3 Maintenance
SIMPAL-T2 GSM Temperature Alerter USER MANUAL Chapter 3 Maintenance • If the alerter does not in use for long time, it should be plugged off from the AC power source. • Store and use the alerter in suitable temperature. Too high or too low temperature will likely to damage it. -
Page 23: Chapter 4 General Troubleshooting
SIMPAL-T2 GSM Temperature Alerter USER MANUAL Chapter 4 General Troubleshooting General Possible Reason Solution Trouble Power Check the alerter’s indicator light No power input. external AC power is turns off available. SIM card no install Can’t find or properly: Plug off the... - Page 24 SIMPAL-T2 GSM Temperature Alerter USER MANUAL General Possible Reason Solution Trouble SIM card PIN code Close the PIN code. actives. Contact with local SIM card invalid. operator to check of The master Change Master Another master number number or recover to...
-
Page 25: Chapter 5 Main Technical Parameters
SIMPAL-T2 GSM Temperature Alerter USER MANUAL Chapter 5 Main Technical Parameters 110~250V/50HZ, Power input of alerter CEE 7/7 hybrid Schuko/French plug ℃ ℃ Operating temperature -10 ~+50 ℃ ℃ Store temperature -20 ~+60 Relative humidity 10-90%，without condensation Communication GSM PHASE 2/2+... -
Page 26: Appendix: Sms Commands List
SIMPAL-T2 GSM Temperature Alerter USER MANUAL Appendix: SMS commands list Category Function Command Add a master number to (1) #00# the alerter Change the master user’s number #10#NewMasterNumber# Add a family number (3) #08#FamilyNumber# Add several family (4) #08#FamilyNumber1# numbers ...#FamilyNumber4#... - Page 27 SIMPAL-T2 GSM Temperature Alerter USER MANUAL Category Function Command Enabled the external sensor over-temperature (16) #16#1# alarm Set external sensor (17) over-temperature alarm #17#MinTemp#MaxTem limits Disabled external sensor (18) #16#0# over-temperature alarm Check the external sensor (19) #16# over-temperature alarm...
- Page 28 SIMPAL-T2 GSM Temperature Alerter USER MANUAL Category Function Command changing (Default) No SMS notification upon the power supply (28) #04#0# changing SMS notification upon weak GSM signal (29) #15#1# (Default) No SMS notification upon (30) #15#0# weak GSM signal Turn off LED indicator...
