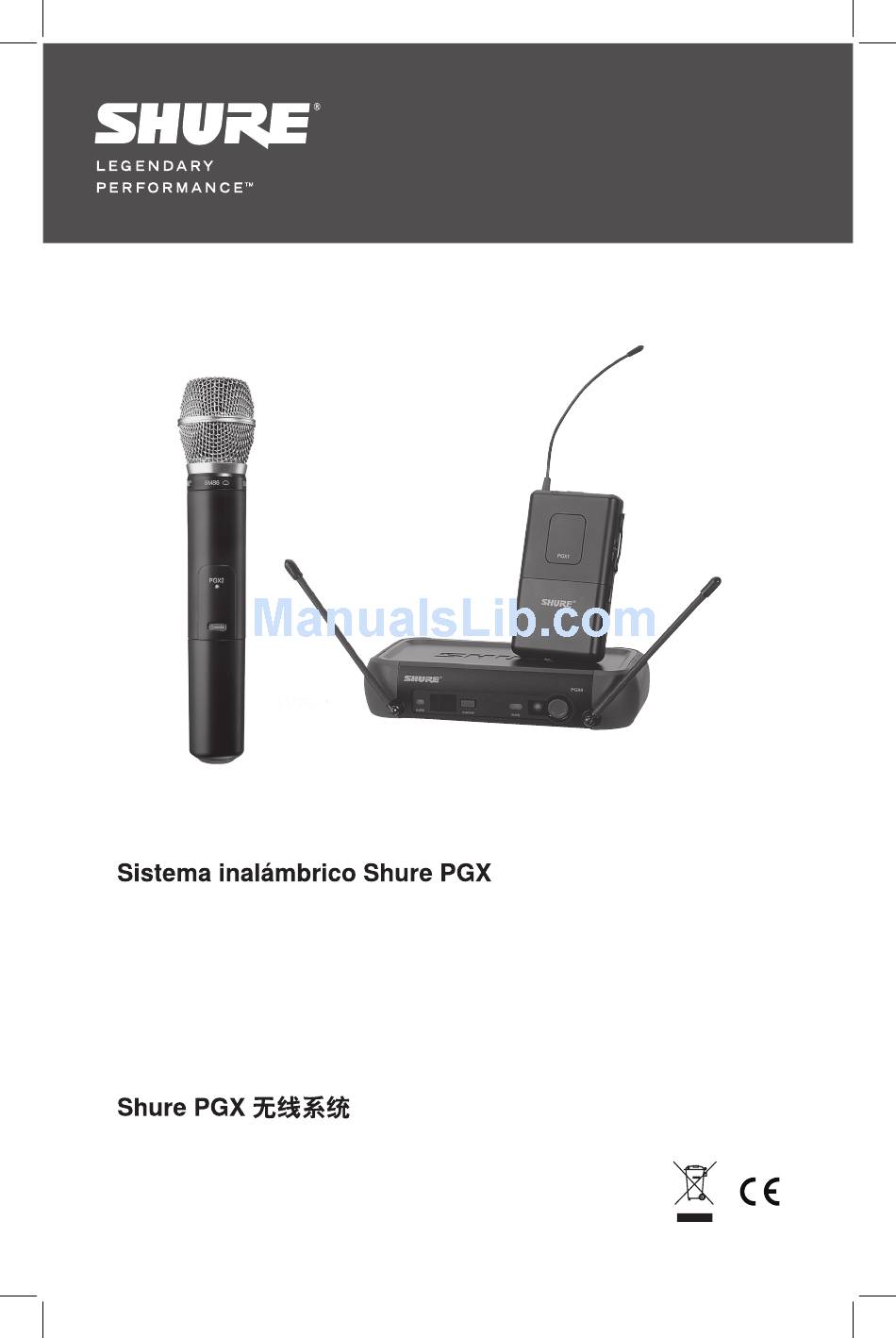

- Page 1 PGX Wireless System audiovias.com Shure PGX Wireless PGX sans fil de Shure Shure PGX Drahtlos Shure radiomicrofoni Serie PGX Shure PGX Sem Fio Беспроводные системы Shure PGX Wireless Shure PGX ワイ ヤレ ス Shure PGX 무선 ©2010 Shure Incorporated 27A14911 (Rev. 1)
- Page 2 XXXXXXX Copyright © 2010, Shure Incorporated Printed in U.S.A.
- Page 4 System Components Vocalist systems include: All systems include: • Microphone Head (choice of • PGX4 receiver PG58, SM58 , SM86, Beta ® • 2 AA batteries or Beta 87A) ® • Power supply • PGX2 handheld transmitter • User guide • Microphone clip Lavalier, Headworn, and Guitar systems include: Instrument systems • PGX1 bodypack transmitter include:...
-
Page 5: Changing Batteries
Batteries dead (transmitter cannot be turned on until startup batteries are changed) Pulsing Red after Transmitter and receive incompatible; contact your synchronization Shure reseller Changing Batteries • Expected life for an Alkaline battery is approximately 8 hours. • When the transmitter light glows red, the batteries should be changed immediately, as shown. Wearing the Bodypack Transmitter Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown. -
Page 6: Adjusting Gain
Adjusting Gain PGX1 Three gain settings are available on the PGX1. Choose the appropriate setting for your instrument. • mic: Microphone (higher amplification) • 0: Guitar with passive pickups (medium amplification) • –10: Guitar with active pickups (lower amplification) If the receiver LED indicates the input volume is overload- ing the receiver, try switching the gain to a lower setting. PGX2 Access the gain adjustment switch by unscrewing the head of the microphone. Two gain settings are available on the PGX2. Use the tip of a pen or a small screwdriver to move the switch. • 0dB: For quiet to normal vocal performance. -
Page 7: Multiple System Setup
Multiple System Setup Use the following steps to ensure the best performance when in- stalling multiple wireless systems at the same location. 1. Turn all receivers on and all transmitters off. Note: Turn on any other digital equipment that could cause interference during the performance so it will be detected during the frequency scans in the following steps. 2. Make sure the group number is the same for all receivers (see Manual Group Selection). 3. Perform a scan using the first receiver. 4. Turn on the first transmitter and sync it to the receiver. 5. Repeat for each system. • Important: After syncing each transmitter, leave it on so that scans from the other receivers will not select that channel. • Be sure only one transmitter IR port is exposed when synchronizing each system. -
Page 8: Troubleshooting
Transmitter power light • Replace transmitter batteries glowing or flashing red • If indicator continues flashing red after batteries are replaced, the transmitter and receiver may belong to incompatible frequency bands. Contact your Shure reseller for assistance. Transmitter power light off • Turn on transmitter • Make sure the +/- indicators on batteries match the transmitter terminals • Insert fresh batteries... -
Page 9: Specifications
SPECIFICATIONS PGX2 Handheld Transmitter Working Range (Line of Sight) 100 m (300 ft) Note: Actual range depends on RF signal absorption, re- Audio Input Level flection and interference. +2 dBV maximum, at –10 dB gain setting –8 dBV maximum, at 0 dB gain setting RF Carrier Range H6: 524–542 MHz, 30 mW Gain Adjustment Range J6: 572.250–589.875 MHz, 30 mW 10 dB K5E: 606–630 MHz, 10 mW RF Output Power L5: 644–662 MHz, 30 mW 10–30 mW P6: 702.200–719 MHz, 30 mW varies by region R1: 800–820 MHz, 20 mW Dimensions T1: 846–865 MHz, 10 mW 254 mm X 51 mm dia. (10 X 2 in.) Q8: 740–752 MHz, 10 mW Weight JB: 806–810 MHz, 10 mW 81 g (10.2 oz.), without batteries R14: 794–806 MHz, 20 mW X5: 925–932 MHz, 10 mW... -
Page 10: Licensing Information
CERTIFICATION PGX1, PGX2, PGX4 LICENSING INFORMATION This Class B digital apparatus complies with Licensing: A ministerial license to operate this Canadian ICES-003. equipment may be required in certain areas. Consult your national authority for possible require- Cet appareil numérique de la classe B est conforme ments. Changes or modifications not expressly à la norme NMB-003 du Canada. approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Meets requirements of EMC standards EN 300 422 Shure wireless microphone equipment is the user’s Parts 1 and 2 and EN 301 489 Parts 1 and 9. responsibility, and licensability depends on the Meets essential requirements of European R&TTE user’s classification and application, and on the se- Directive 99/5/EC, eligible to bear the CE mark. lected frequency. Shure strongly urges the user to contact the appropriate telecommunications author- ity concerning proper licensing, and before choosing and ordering frequencies. - Page 11 PGX WIRELESS FREQUENCY AND CHANNEL GUIDE H6: 524.000—542.000 MHz GROUP 524.250 524.525 524.175 524.225 525.850 525.925 525.500 525.450 524.125 524.650 527.350 527.625 525.650 525.700 528.600 528.675 527.800 527.750 525.600 525.850 529.425 529.700 526.775 526.825 530.300 530.375 531.700 531.650 526.725 527.950 530.900...
- Page 12 P6: 702.200—719.000 MHz GROUP 702.200 710.200 703.750 703.650 702.750 703.750 702.100 704.775 702.300 703.000 703.300 711.300 705.975 705.650 704.500 705.750 704.025 706.225 704.975 706.025 704.700 712.700 707.200 708.650 705.750 708.250 705.500 710.500 706.775 708.000 705.800 713.800 708.850 710.875 708.250 711.750 708.500 712.025 709.100...
- Page 13 T1: 846.000—865.000 MHz GROUP 847.500 846.100 863.200 846.800 854.200 855.475 855.075 854.750 854.750 854.425 848.600 847.350 863.900 848.425 855.300 857.425 857.775 855.850 855.850 855.525 850.100 849.400 864.500 850.425 856.700 860.600 860.725 857.250 857.250 857.400 852.100 851.800 852.875 857.800 858.350 858.350 858.500 853.300 853.200...
- Page 14 FREQUENCY BAND K5E (606–630 MHz) CHANNEL 1 - 6 CHANNEL 11-16 CHANNEL 21-29 CHANNEL 31-39 CHANNEL 41-49 U.K. preferred: U.K. preferred: Full Range max. Full Range max. # of Full Range max. TV ch. 38 TV ch. 38 # of compatible frequen- # of 606-614 MHz 606-614 MHz compatible cies compatible frequen- with 125 kHz with 125 kHz guard frequencies (same as SLX-K3E cies, guard band band (same as SLX- group 3) Ch. 38 excl.
- Page 15 FREQUENCY BAND G4 (470.125–493.825 MHz) Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 471.150 470.125 470.275 476.275 482.275 488.275 473.275 472.250 471.375 477.375 483.375 489.375 474.825 473.800 472.775 478.775 484.775 490.775 477.100 476.075 474.575 480.575 486.575 492.575 479.800...
-
Page 16: Frequencies For European Countries
FREQUENCIES FOR EUROPEAN COUNTRIES PGX H6 524–542 MHz, max. 30 mW PGX J6 572–590 MHz, max. 30 mW Country Code: Frequency Range Country Code: Frequency Range Code de Pays: Gamme de frequences Code de Pays: Gamme de frequences Codice di paese:... - Page 21 Europe, Middle East, Africa: United States, Canada, Latin Asia, Pacific: Shure Europe GmbH America, Caribbean: Shure Asia Limited Shure Incorporated Wannenäckestr. 28, 22/F, 625 King’s Road 5800 West Touhy Avenue 74078 Heilbronn, Germany North Point, Island East Hong Kong...
