INSTRUMENTS AND
INDICATORS

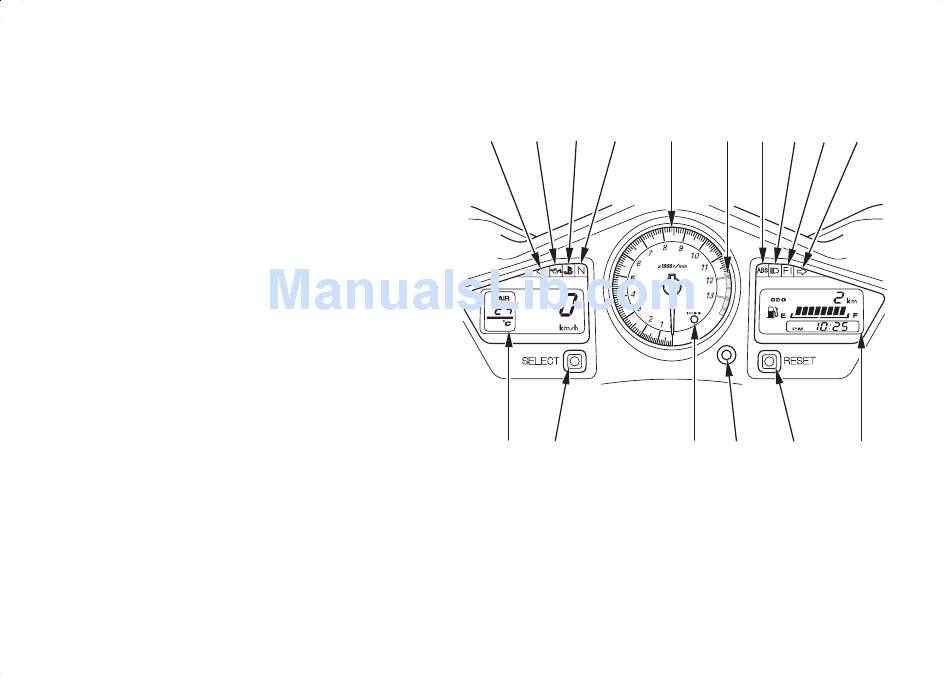

The indicators are contained in the
instrument panel. Their functions are
described in the tables on the following
pages.
(1) Tachometer
(2) Tachometer red zone
(3) Anti-lock brake system
(ABS) indicator
(4) High beam indicator
(5) PGM-FI malfunction indicator lamp (MIL)
(6) Right turn signal indicator
(7) Right multi-function display
(8) RESET button
(9) HISS button
(10) Immobilizer system (HISS) indicator
(11) SELECT button
(12) Left multi-function display
(13) Left turn signal indicator
(14) Low oil pressure indicator
(15) High coolant temperature indicator
(16) Neutral indicator
www.ClassicCycles.org
(VFR-ABS)
(13) (14) (15) (16)
(12) (11)
(2) (3) (4) (5)
(1)
(10) (9) (8)
(6)
(7)
