An exhaust hood should cap vent to keep rodents
■
and insects from entering home.
Do not use exhaust hood with a magnetic latch.
■
Elbows:
45° elbows provide better airflow than 90° elbows.
■
Good
Clamps:
Use clamps to seal all joints.
■
Exhaust vent must not be connected or secured with screws
■
or other fastening devices that extend into interior of duct
and catch lint. Do not use duct tape.
Vent products can be purchased from your dealer. For further
information, see "Assistance or Service" section in your Use
and Care Guide.

pLAN vENT SYSTEM

Choose your exhaust installation type
Recommended exhaust installation:
Better
Alternate exhaust installations (for close clearance):
Vent systems come in many varieties. Select the type best
for your installation. Refer to the manufacturer's instructions.
Special provisions for mobile homes:
Exhaust vent must be securely fastened to a noncombustible
portion of mobile home and must not terminate beneath
the mobile home. Terminate exhaust vent outside.

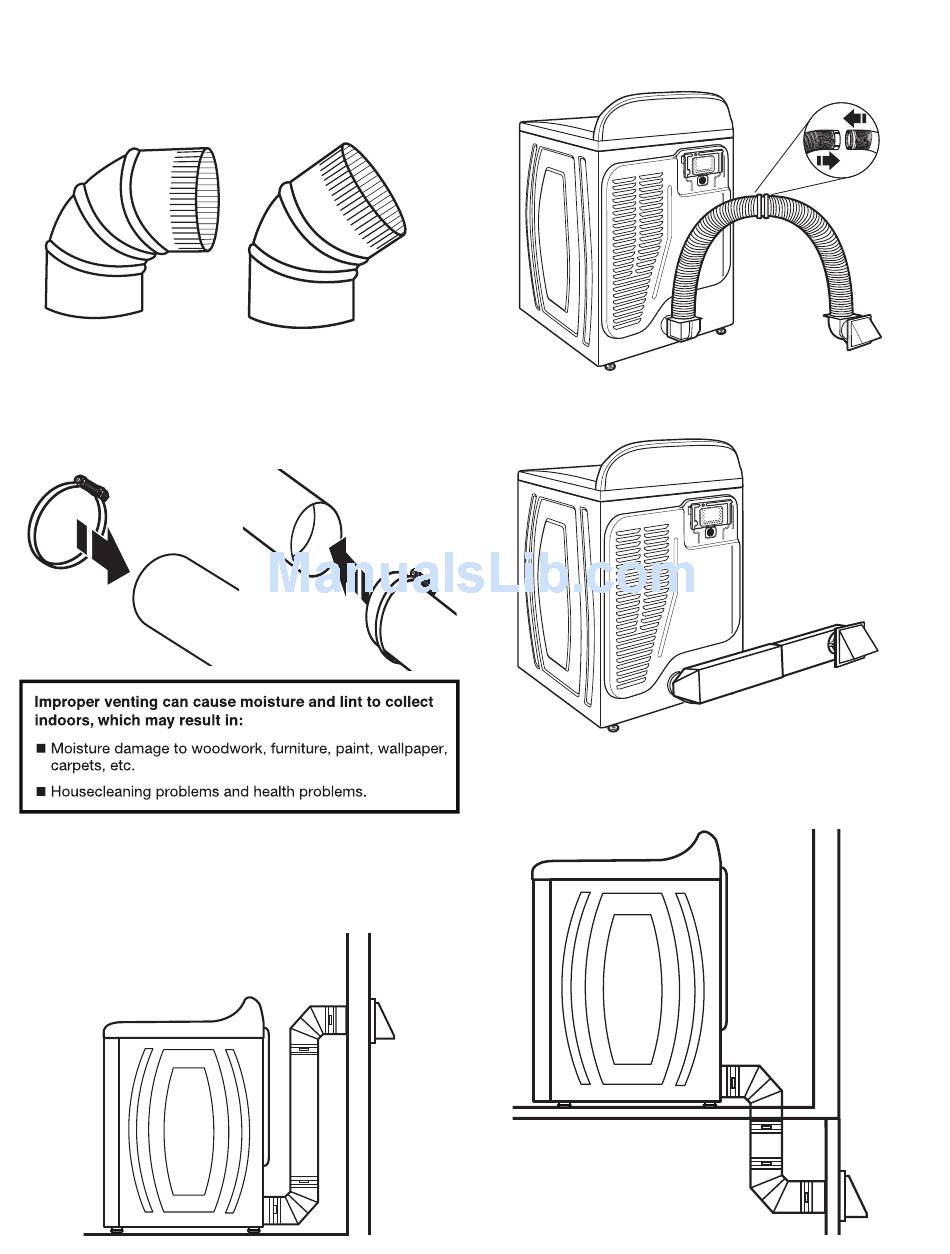

Bottom exhaust installation
Over-the-top installation
(also available with one offset elbow)
Periscope installation
