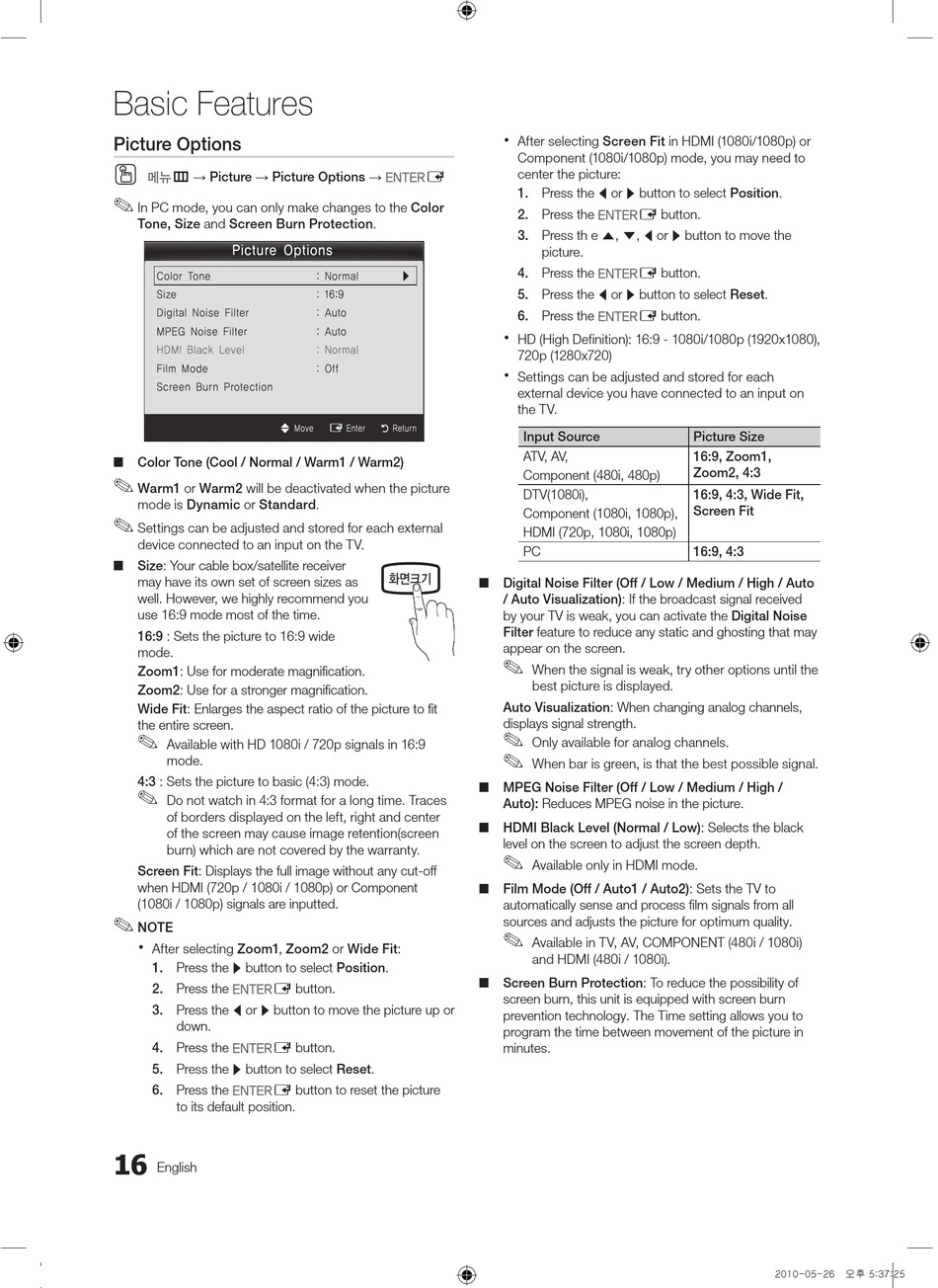

Basic Features

Picture Options

O
메뉴m → Picture → Picture Options → ENTERE
In PC mode, you can only make changes to the Color
Tone, Size and Screen Burn Protection.
Picture Options
Color Tone
Size
Digital Noise Filter
MPEG Noise Filter
HDMI Black Level
Film Mode
Screen Burn Protection
■ Color Tone (Cool / Normal / Warm1 / Warm2)
Warm1 or Warm2 will be deactivated when the picture
mode is Dynamic or Standard.
Settings can be adjusted and stored for each external
device connected to an input on the TV.
■ Size: Your cable box/satellite receiver
may have its own set of screen sizes as
well. However, we highly recommend you
use 16:9 mode most of the time.
16:9 : Sets the picture to 16:9 wide
mode.
Zoom1: Use for moderate magnification.
Zoom2: Use for a stronger magnification.
Wide Fit: Enlarges the aspect ratio of the picture to fit
the entire screen.
Available with HD 1080i / 720p signals in 16:9
mode.
4:3 : Sets the picture to basic (4:3) mode.
Do not watch in 4:3 format for a long time. Traces
of borders displayed on the left, right and center
of the screen may cause image retention(screen
burn) which are not covered by the warranty.
Screen Fit: Displays the full image without any cut-off
when HDMI (720p / 1080i / 1080p) or Component
(1080i / 1080p) signals are inputted.
NOTE
x
After selecting Zoom1, Zoom2 or Wide Fit:
1. Press the r button to select Position.
2. Press the ENTERE button.
3. Press the l or r button to move the picture up or
down.
4. Press the ENTERE button.
5. Press the r button to select Reset.
6. Press the ENTERE button to reset the picture
to its default position.
16
English
[PC450-Kor]Web Manual-Eng.indd 16
r
: Normal
: 16:9
: Auto
: Auto
: Normal
: Off
U Move
E Enter
R Return
x
After selecting Screen Fit in HDMI (1080i/1080p) or
Component (1080i/1080p) mode, you may need to
center the picture:
1. Press the l or r button to select Position.
2. Press the ENTERE button.
3. Press th e u, d, l or r button to move the
picture.
4. Press the ENTERE button.
5. Press the l or r button to select Reset.
6. Press the ENTERE button.
x
HD (High Definition): 16:9 - 1080i/1080p (1920x1080),
720p (1280x720)
x
Settings can be adjusted and stored for each
external device you have connected to an input on
the TV.
Input Source
ATV, AV,
Component (480i, 480p)
DTV(1080i),
Component (1080i, 1080p),
HDMI (720p, 1080i, 1080p)
PC
■ Digital Noise Filter (Off / Low / Medium / High / Auto
/ Auto Visualization): If the broadcast signal received
by your TV is weak, you can activate the Digital Noise
Filter feature to reduce any static and ghosting that may
appear on the screen.
When the signal is weak, try other options until the
best picture is displayed.
Auto Visualization: When changing analog channels,
displays signal strength.
Only available for analog channels.
When bar is green, is that the best possible signal.
■ MPEG Noise Filter (Off / Low / Medium / High /
Auto): Reduces MPEG noise in the picture.
■ HDMI Black Level (Normal / Low): Selects the black
level on the screen to adjust the screen depth.
Available only in HDMI mode.
■ Film Mode (Off / Auto1 / Auto2): Sets the TV to
automatically sense and process film signals from all
sources and adjusts the picture for optimum quality.
Available in TV, AV, COMPONENT (480i / 1080i)
and HDMI (480i / 1080i).
■ Screen Burn Protection: To reduce the possibility of
screen burn, this unit is equipped with screen burn
prevention technology. The Time setting allows you to
program the time between movement of the picture in
minutes.
Picture Size
16:9, Zoom1,
Zoom2, 4:3
16:9, 4:3, Wide Fit,
Screen Fit
16:9, 4:3
2010-05-26 오후 5:37:25
