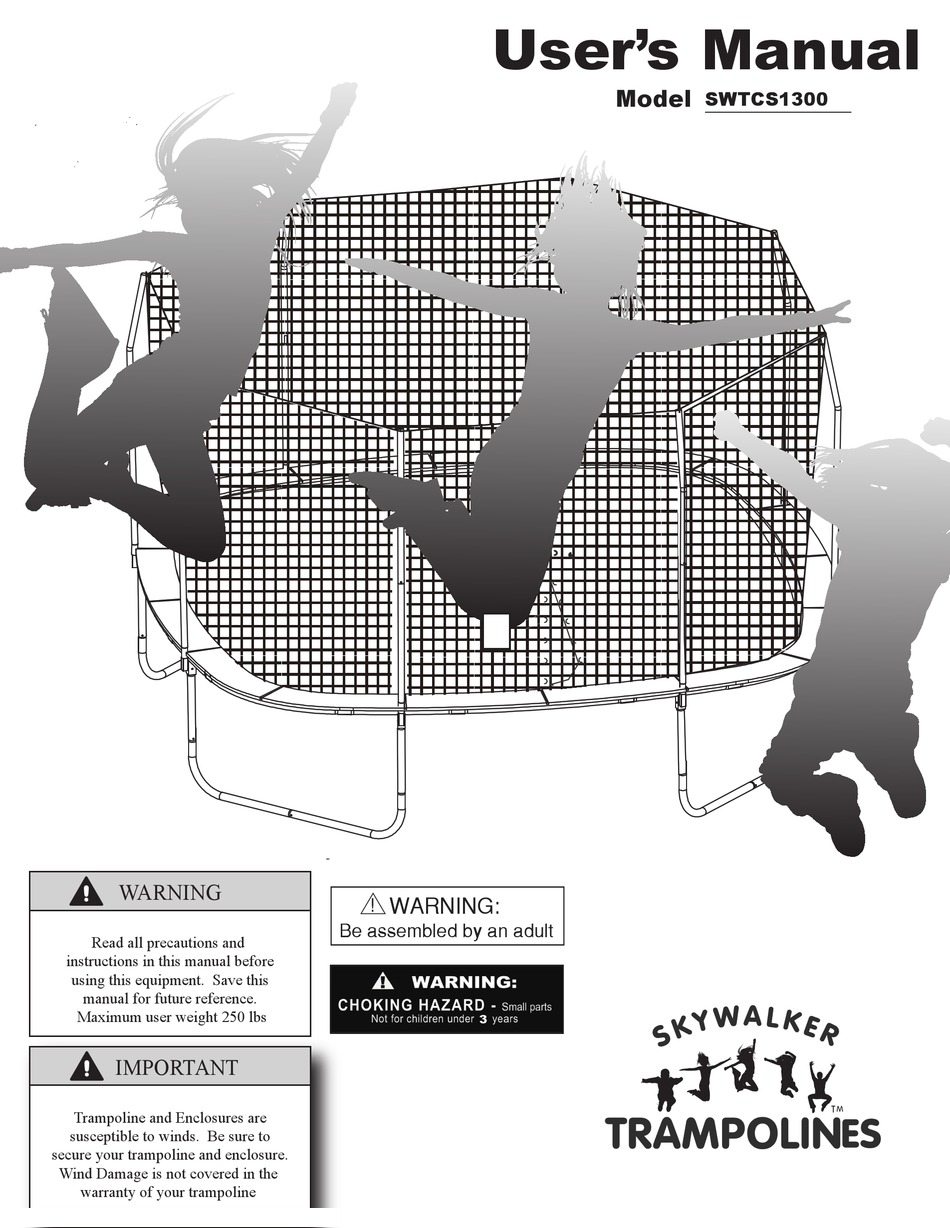

User's Manual
Model ______________
SWTCS1300
WARNING
Read all precautions and
instructions in this manual before
using this equipment. Save this
manual for future reference.
Maximum user weight 250 lbs
IMPORTANT
Trampoline and Enclosures are
susceptible to winds. Be sure to
secure your trampoline and enclosure.
Wind Damage is not covered in the
warranty of your trampoline
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Skywalker SWTCS1300
Summary of Contents for Skywalker SWTCS1300
- Page 1 User’s Manual Model ______________ SWTCS1300 WARNING Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference. Maximum user weight 250 lbs IMPORTANT Trampoline and Enclosures are susceptible to winds. Be sure to secure your trampoline and enclosure.
-
Page 2: Table Of Contents
____ Model SWTCS1300 A serial decal is found on one of the trampoline legs. Model number decal tag is located on the jumping mat. CONTENTS Important Precautions...........3 Warning Label Placement........4 Before You Begin..........4 Trampoline Safety Information......5 Enclosure Safety Information.......6 Methods of Accident Prevention......7 Use and Instructional Material......8... -
Page 3: Important Precautions
USE INSTRUCTIONS WARNING To reduce the risk of serious injury, read and follow all of the warnings, precautions, and instructions in this manual before you use the trampoline enclosure. Warnings and instructions for care, maintenance, and use of this trampoline and enclosure are included to promote safe, enjoyable use of this equipment. It is the responsibility of the owner and supervisors of the Do not attach anything to the enclosure barrier that is not a trampoline and enclosure to make sure all users obey the safety... -
Page 4: Warning Label Placement
BEFORE YOU BEGIN Thank you for choosing your Skywalker Trampolines brand Trampoline. Skywalker Trampoline square Trampolines are designed and crafted to provide many years of fun and fitness. This trampoline comes equipped with warnings and instructions for the assembly, care, maintenance, and use of the trampoline. -
Page 5: Trampoline Safety Information
TRAMPOLINE SAFETY INFORMATION In trampoline use, as in all active recreational sports, participants can be injured. However, there are steps that can be taken to reduce the risk of injury. In this section, primary accident patterns are identified and the responsibilities of supervisors and jumpers in accident prevention are described. -
Page 6: Enclosure Safety Information
ENCLOSURE SAFETY INFORMATION NEED FOR TRAMPOLINE ENCLOSURE SAFETY A trampoline enclosure is a recreational product. The information on this page and on pages 7-9 identify important safety precautions. The precautions are not all-inclusive, because an enclosure can be used in ways that this manual cannot cover completely. To prevent pinches and cuts during enclosure use, a frame pad must be installed on the trampoline (See the trampoline manufacturer’s instructions). -
Page 7: Methods Of Accident Prevention
METHODS OF ACCIDENT PREVENTION The Supervisor's Role in Preventing Accidents It is the responsibility of the supervisors of trampoline users to provide knowledgeable and mature supervision. They need to know and enforce all of the rules and warnings printed in this manual to minimize the likelihood of accidents and injuries. - Page 8 • Wear clothing that does not have drawstrings, hooks, loops or anything else that could get caught while using the trampoline/enclosure and result in entanglement or strangulation, or both. • Do not attach anything to the netting that is not a Skywalker Trampolines approved accessory or part of the of the trampoline enclosure.
-
Page 9: Use And Instructional Material
D-ring on the jump mat and that the horizontal clips are attached to the D-rings on the enclosure netting, both during use and after use. For additional information regarding equipment, contact Skywalker Holding, LLC. For additional information regarding skill training, contact a trainer certification organization. - Page 10 To secure the enclosure net opening before, during or after use, attach the Zipper Pull Clip attached the D-ring to the zipper loop as shown. the first net hole zipper loop the first D- ring zipper pull clip Locked postition to secure Enclosure door opening ENTERING AND EXITING THE TRAMPOLINE ENCLOSURE The Trampoline should be used only under the appropriate adult supervision.
-
Page 11: Instructional Program And Model Lessons
INSTRUCTIONAL PROGRAM AND MODEL LESSONS The following lessons are examples of an instructional program. They should follow a complete discussion and demonstration of body mechanics between the supervision and the student(s). See also page 12. 1. Mounting and dismounting (getting on and off)-Demonstration and practice of proper techniques. 2. - Page 12 Lesson 5: Seat Drop Lesson 6: Front Drop 1. Review and practice of skills already learned. 1. To save time and avoid mat (bed) burns, all students should 2. Land in a sitting position with your legs parallel to the be requested to assume the front drop position on the floor mat.
-
Page 13: Assembly
ASSEMBLY ASSEMBLY (PUTTING THE TRAMPOLINE AND ENCLOSURE TOGETHER) IMPORTANT ASSEMBLY INFORMATION • Need phillips screw driver (included with trampoline) and 2 adjustable wrenches (for putting the trampoline together). A rubber mallet is also recommended to make assembly easier. • Assembly requires two adults. Keep children away from the trampoline and enclosure until they are completely put together. •... - Page 14 Note: This step requires two persons. During this step, you will connect the four assembled leg sections and four middle tubes(2) together leg section leg section Flip two of the leg sections over so that the spring holes are now facing the sky instead of the ground. Stand two leg sections, a middle tube(2)and hold them in the positions as shown, then attach them together, repeat this step untill four middle tubes (2) and four leg section are connected...
- Page 15 After attaching the first four Springs (10) in step 4, start Inset drawing V-ring from the first spring you attached in step 4. Count exactly 11 V-rings and 11 frame holes in a clockwise direction. Attach another Spring to the V-ring and frame at this point. Count 21 V-rings and 21 frame holes in a clockwise direction and attach another Spring.
- Page 16 8. Look underneath the trampoline. Locate the straps attached to the underside of the frame pad. Position each outer strap so that one strap is on each side of the frame as shown. Tie the outside straps sewn to the Pad Joints to each side of the frame Strap sewn in the outside of the Joint for the pad bottom as shown and attach the inner straps to the near V-rings.
- Page 17 ENCLOSURE ASSEMBLY Make sure that you understand the information in the 2 Screw Holes box at the top of page 13. for pole cap (1) 1. Lay one Straight Tube (5) with foam and one Curved Tube (6) with foam (8) on the ground, insert the Straight Tube(5) into the curved tube(6) end that contains only one screw hole, secure with the screw(4).
- Page 18 3. Attach the Jump Mat to the trampoline frame by refer- ring to step 6 in the trampoline assembly 4 ., Attach the Frame Pad to the trampoline frame. Refer to steps 7-8 in your trampoline assembly for further instruction Holes Strap Note: There is a Hexagon hole on the pole cap (1) with a nut...
- Page 19 Note: In Step 5 you will secure the enclosure poles Inset drawing to the frame of the trampoline. Jump Mat Start from the enclosure door, lift one of the poles assembled in Step 1, see the insert drawing. Insert the Straight Tube(5) through frame pad into the top hole of the Square Socket on trampoline frame as shown.
-
Page 20: Assembly
. Insert the end cap(3) into the bottom hole of the Socket. Insert end cap (3) into end of Socket Your trampoline enclosure is now fully assembled (put together). Make sure that all parts are securely attached. Familiarize yourself and all users with the trampoline and enclosure with the safety precautions, use and instructional materials, and care and mainte- nance instructions in this manual before using the... -
Page 21: Care And Maintenance
WARNING TRAMPOLINE AND ENCLOSURE CARE AND MAINTENANCE Care To avoid damage to the trampoline and enclosure, do not allow pets or animals inside the enclosure. The trampoline is intended to be used by one person at a time who weighs not more than 250 pounds. The user should be either barefoot, wearing socks, or wearing gymnastic shoes. -
Page 22: Parts List
Climb on and off the trampoline. Do no jump on or off. Do not use the trampoline as a springboard to other objects. For further equipment information contact SKYWALKER TRAMPOLINES. For skill training information, contact a trainer certification organization. twl3... -
Page 23: Ordering Replacement Parts
PARTS LIST FOR ENCLOSURE . y t . y t Pole Cap M5x44mm Bolt Mesh with straps End Cap t - f 1 set Screw Driver s ’ r # These parts are not illustrated. Specifications are subject to change without notice End Cap t - f Pole Cap... -
Page 24: Limited Warranty
Skywalker Holdings, LLC authorized service center, or to products used for commercial or rental purpose. No other Warranty beyond that specifically set forth above is authorized by Skywalker Holdings, LLC.
