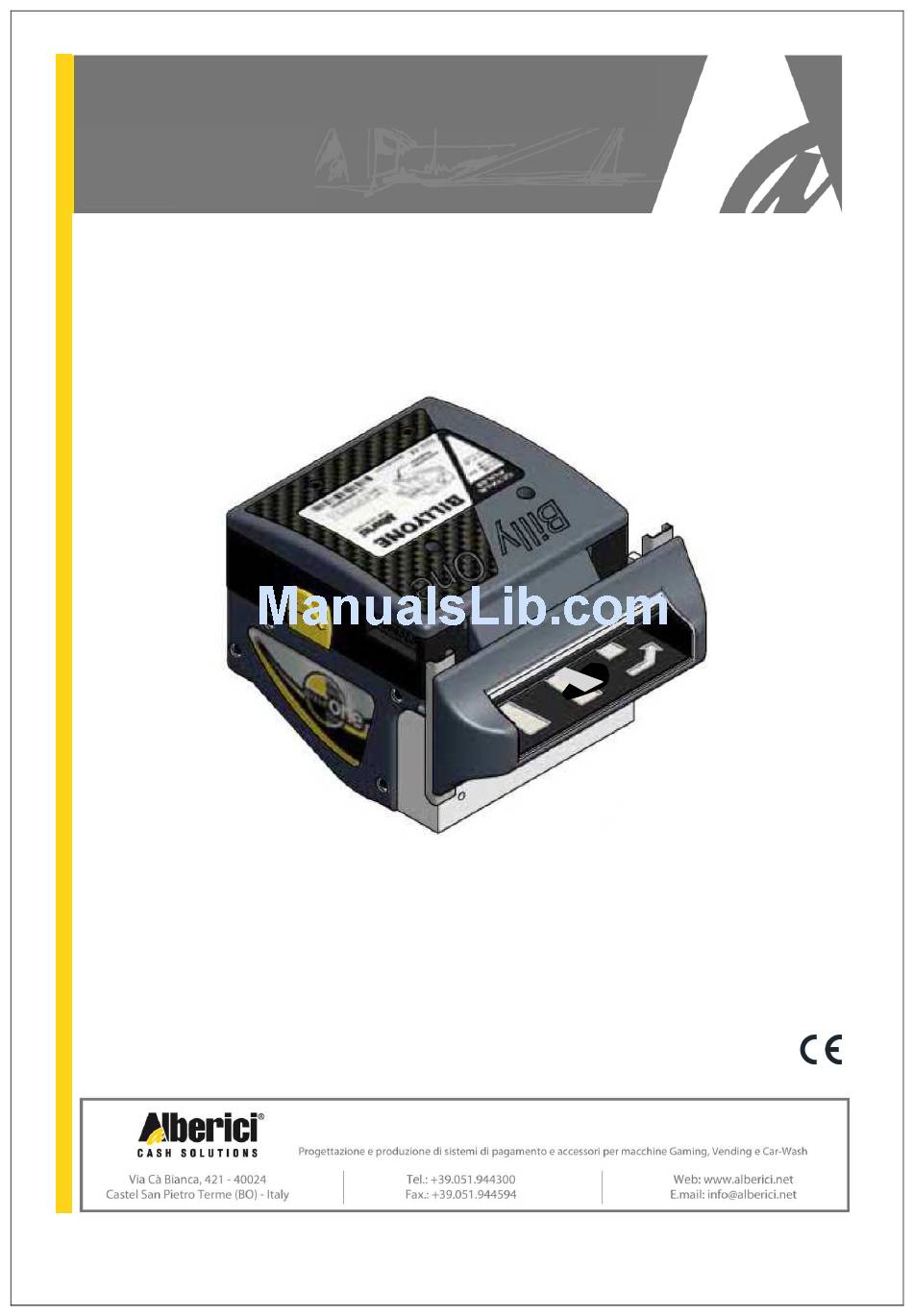

- Page 1 BILLYONE banknote validator Operator’s manual Rev. 1.08 Operator’s Manual Pag. 1 MANUALE BILLYONE CCTALK...
- Page 2 Alberici S.p.A. reserve the right to change, without notice, in any way any portion of this manual. Pag. 2...
-
Page 3: Table Of Contents
Nuovo frontalino Rev. 1.06 01.07.14 Aggiornamento a versione firmware v. 2.02 Rev. 1.07 04.11.14 Aggiornamento a versione firmware v. 2.06 e nuove valute Rev. 1.08 21.01.14 Aggiornamento a versione firmware v. 2.07 Inserita modalità bassa selettività Pag. 3 MANUALE BILLYONE CCTALK... -
Page 4: General
Dear Customer, we would like to thank you and congratulate for your choice. We trust that you will appreciate the quality and performance of our BILLYONE note validator. Please read carefully this handbook, to obtain the most from your HYDROJET Station Host machine design - The manufacturer takes all possible measures to ensure the quality of this unit. -
Page 5: Package Contents
2. Package contents The package contains the following items: 1. BillyOne note validator 2. Installation manual (this manual) This unit has been carefully packed, with special attention to protect it againt damages. However, if you find anything damaged or missing, please contact immediately your local distributor. -
Page 6: Parts Description
Parts description A. Front-plate B. Notes inlet C. Removal button D. Sled button to pull top open E. Dip-switch row F. Accepted notes outlet G. 10p Connector Technical Specs Pag. 6 MANUALE BILLYONE CCTALK... -
Page 7: Dimensions
Dimensions Left view 100,0 Front view View from top N.B.: All measures in mm Pag. 7 MANUALE BILLYONE CCTALK... -
Page 8: Mounting Instructions
The collecting box for the accepted notes should be placed behind the device and below his lower profile. Its recommended minimum size is: min. 100 mm useful height, min. 100 mm in width, and min. 200 mm in length. Box for notes collection Box for notes > 200 mm > 100 mm Pag. 8 MANUALE BILLYONE CCTALK... -
Page 9: Mechanical Fitting
5.Insert the inlet of the note validator in the cut-out, and push the unit frontward, until it hooks in. Make sure that the validator and its bezel are securely fixed to the door. To remove the device, perform the above procedure from end to start. Pag. 9 MANUALE BILLYONE CCTALK... -
Page 10: Electrical Connection
Credit out (active low) Not connected + 12 / 24 Vdc (Power supply) The BillyOne validator is designed for 12 Vdc or 24 Vdc power supply: it recognizes which voltage is present, and adjusts itself automatically to it. Once connected, take care that the cable is protected against any mechanical stress or accidental pull. - Page 11 NOTICE: the K-2PC-000003 dongle allows to drive the BillyOne Cctalk validator from a USB port. 4.3.2 ccTalk Interface circuit Pag. 11 MANUALE BILLYONE CCTALK...
- Page 12 Header 216 - Request data storage availability Header 227 - Request inhibit status Header 228 - Modify master inhibit status Header 230 - Request inhibit status Header 231 - Modify inhibit status Header 247 - Request variable set Pag. 12 MANUALE BILLYONE CCTALK...
-
Page 13: Dip-Switch Setting
1 € = 1 pulse, 200mA pulse length, set to 5 fraud attempts: Please pay attention: after any change in the DS settings, power must be turned off and then on again, so that the validator can detect the set operation mode. Pag. 13 MANUALE BILLYONE CCTALK... - Page 14 For example, if the denominations of 5, 10, 50 Euro are set to be accepted, and the denominations from 20 and 100 Euros are set to be inhibited, the 1st, 2nd, and 4th flashings will be in green colour, while the 3rd and 5th flashing will be in yellow. Pag. 14 MANUALE BILLYONE CCTALK...
-
Page 15: Maintenance
It is therefore recommended that you clean these parts at least monthly, as indicated below. Pag. 15 MANUALE BILLYONE CCTALK... -
Page 16: Jammings
CAUTION! Turn off pèower before opening its upper lid. Open the top cover by pressing D, as described in section 6.2.1 (point 2), and pull out the stuck banknote (as well as any other objects that will hinder the transit). Pag. 16 MANUALE BILLYONE CCTALK... -
Page 17: Disposal Of The Product
- detailed report of the problem found and the circumstances in which it occurs. Before sending the product, please get in touch with your Dealer or with Alberici S.p.a. (+39 051 944300); very malfunctions can be fixed via a simple phone call, saving you costs and time. - Page 18 Pag. 18 MANUALE BILLYONE CCTALK...
- Page 19 Pag. 19 MANUALE BILLYONE CCTALK...
- Page 20 Design and manufacture of payment systems, accessories for videogames and vending machines Via Miglioli 23 Tel. + 39 051 944 300 http://www.alberici.net 40024 Castel San Pietro Fax. + 39 051 944 594 Terme (BO) – ITALY info@alberici.net Pag. 20 MANUALE BILLYONE CCTALK...
