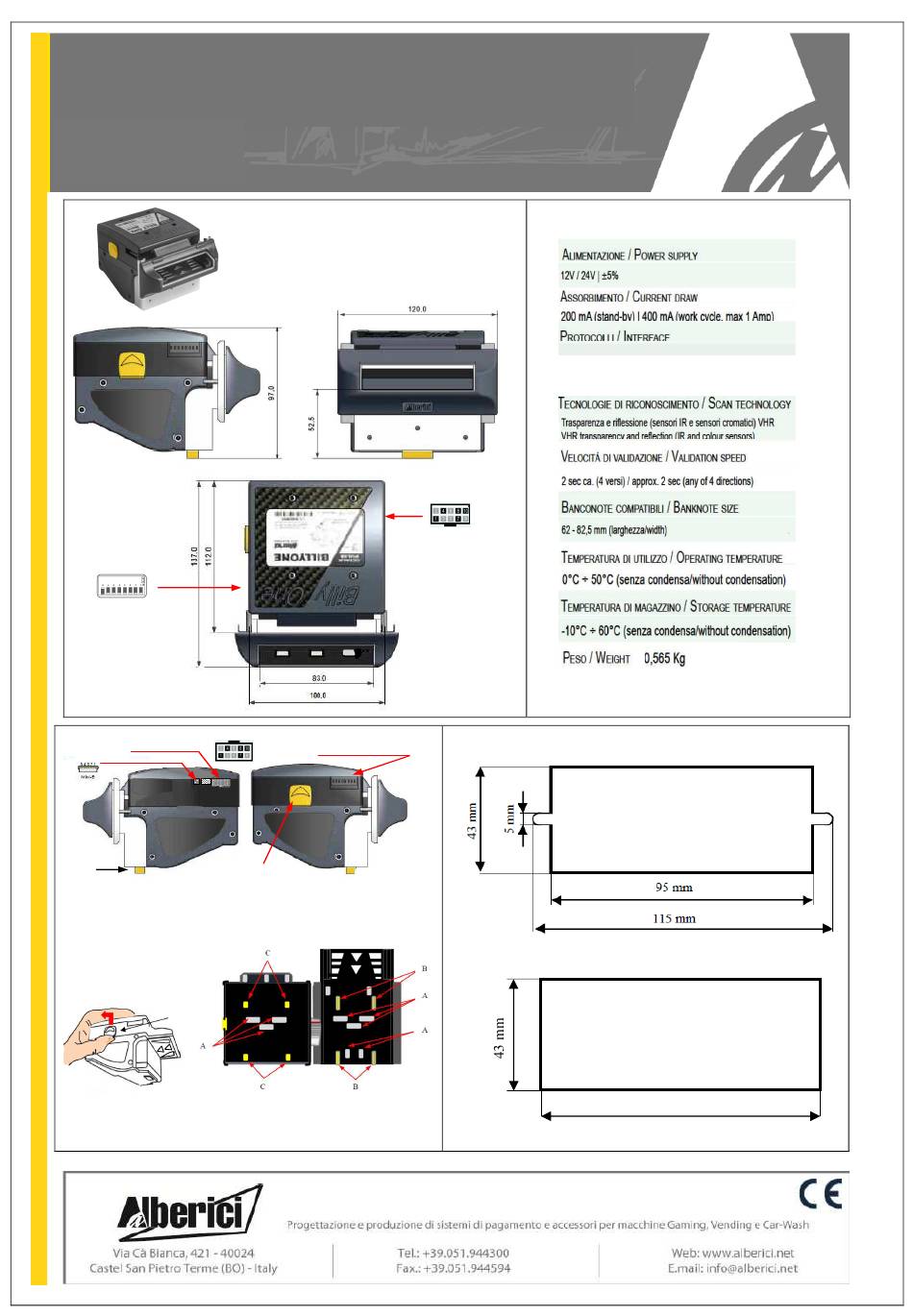

Alberici BILLYONE UN1 Quick Manual

BILLYONE UN1
ccTalk-Pulse+USB / MDB
Quick guide
Rev. 1.02
Dip-Switch
row
10p connector
USB Port
T
Press the yellow button (T) to remove the faceplate.
Press the slide-button (P) to open the upper cover.
P
A. Sensors B. Rollers C. Rolls
Wipe the sensor surface off by a lint-free cloth or by a cotton-bud, eventually
moisted with isopropyl alcohol to c lean parts A, B and C.
GUIDA RAPIDA BILLYONE CCTALK
Banknote validator
Alberici takes all possible measures to grant
the quality of this product. Improper
installation and wrong use can reduce
its performance and its working life.
Dip-Switch row
P
-
PULSE
(ARM3)
Technical specs:
ccTalk / Pulse + USB mini-B / MDB
A
CCETTAZIONE
92% = alta sicurezza (anti-falsi) / high security (anti-fake)
98% = sicurezza standard / standard security
10p
Connector
Mounting cut-out (max thickness = 7mm):
Or even a simple square cut will
/ A R
CCEPTANCE ATE
do:
105 mm
