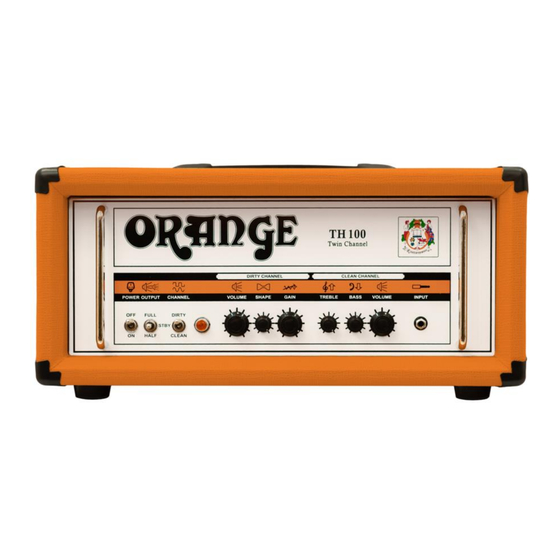

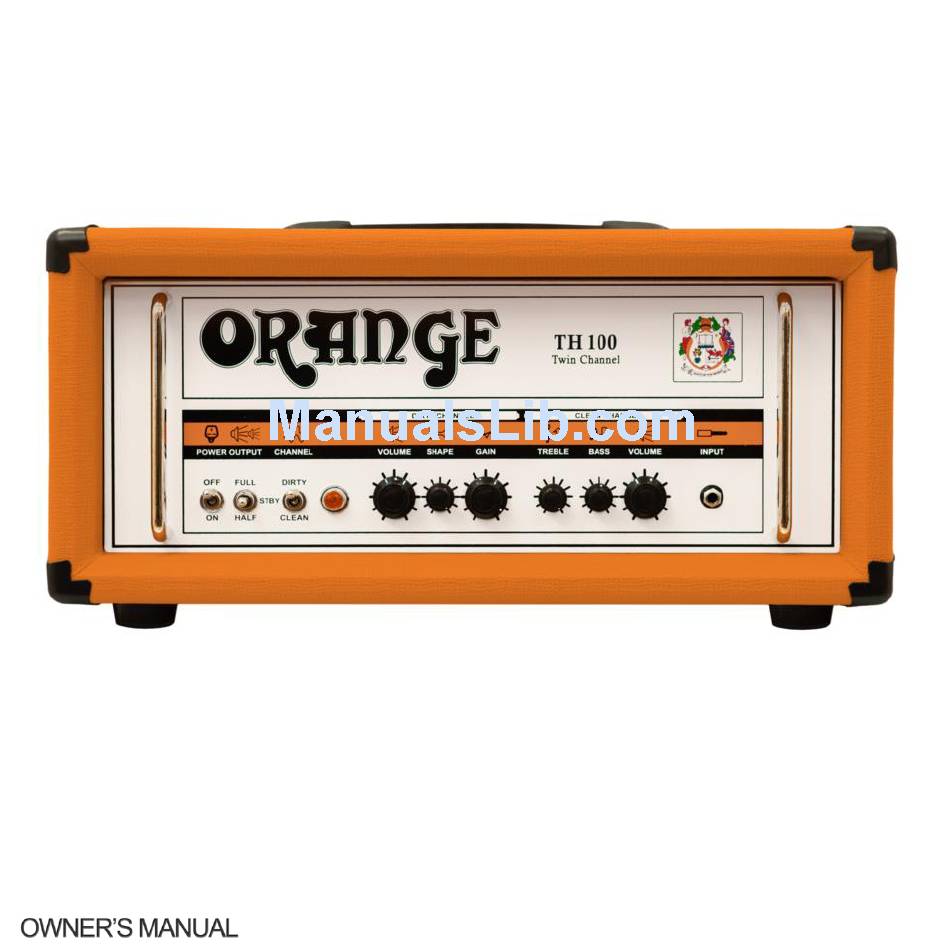

  • Page 1 TH100...

  • Page 2: Thank You

    To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. The warmth, tonal quality and rich harmonics generated by a valve amplifier cannot be reproduced by ‘artificial’...

  • Page 3: Table Of Contents

    TH100 CONTENTS CONTENTS ..................................3 CONTACT DETAILS ................................4 IMPORTANT SAFETY INFORMATION ..........................5 EMI ....................................7 BEFORE USING YOUR AMPLIFIER ............................7 FRONT PANEL FEATURES ..............................8 REAR PANEL FEATURES ..............................9 VALVES AND FUSES CAN FAIL AT ANY TIME! ........................11...

  • Page 4: Contact Details

    TH100 CONTACT DETAILS Orange Amplification OMEC House 108 Ripon Way Borehamwood Hertfordshire WD6 2JA ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA Orange USA 1741 Wilwat Drive Suite A1 Norcross GA 30093 Tel: 1-404-303-8196 Fax: 1-404-303-7176 info@orangeusa.com...

  • Page 5: Important Safety Information

    TH100 IMPORTANT SAFETY INFORMATION The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated ‘dangerous voltage’ within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 6 The voltage selector switch and mains fuse are factory set for the region in which your amplifier is intended to be sold. Do not tamper with this switch without express permission from Orange Music Electronic Company Ltd. Connect the supplied mains cord to the AC Mains Input on the amplifier to your AC mains wall outlet.

  • Page 7: Emi

    TH100 To reduce the possibility of outside electrical interference during performance, operate your amplifier and instrument away from appliances/equipment that generate high levels of electronic/electromagnetic noise. This may include, but is not limited to: fluorescent lighting, refrigerators, motors, mobile phones, radios, computers etc.

  • Page 8: Front Panel Features

    TH100 FRONT PANEL FEATURES Power toggle switch: This turns on the mains power to the amplifier and allows the valves to warm up before use. (Note – The FULL/STBY/HALF toggle switch should be in the middle “STBY” position while the valves are warming up) FULL/STBY/HALF toggle switch: Refer to ‘Before Using Your...

  • Page 9: Rear Panel Features

    TH100 Gain Control (Dirty Channel): This controls the gain of the dirty channel. Note: When set to zero, no sound will be produced from the Dirty Channel Shape Control (Dirty channel) The shape control adjusts between all midrange (zero) to all bass and treble and no midrange...
  • Page 10 TH100 Channel Footswitch jack socket Use any latching footswitch, (e.g. Orange FS-1) to change channel using this socket. Valve Effects Loop (Send and Return) Use the ‘Send’ jack socket to connect to the input of time based effects pedals such as delay, chorus, etc.

  • Page 11: Valves And Fuses Can Fail At Any Time

    Orange amplifiers are under warranty for one year subject to consumer protection laws in the country of purchase and distributor’s terms and conditions, an additional year can be added by registering. Valves and speakers supplied with an Orange amp or purchased separately at our online store are covered for 90 days from the date of purchase.
