- Page 1 CRUSH PRO SERIES OWNERS MANUAL CR60C, CR120C & CR120H...
-
Page 2: Thank You
To maintain this level of excellence, each Orange amplifier is put through many rigorous test procedures before leaving the factory. -
Page 3: Table Of Contents
CONTACT DETAILS ........................... 4 IMPORTANT SAFETY INFORMATION ....................... 5 EMI ................................7 BEFORE USING YOUR AMPLIFIER ......................8 FRONT PANEL FEATURES ........................9 REAR PANEL FEATURES ......................... 11 FREE EXTENDED WARRANTY OFFER ..................... 12 CRUSH PRO SERIES OWNERS MANUAL CR60C, CR120C & CR120H... -
Page 4: Contact Details
ENGLAND Tel: +44 20 8905 2828 Fax: +44 20 8905 2868 info@omec.com Orange USA 1741 Wilwat Drive Suite A1 Norcross GA 30093 Tel: 1-404-303-8196 Fax: 1-404-303-7176 Tel: 1-404-303-8196 Fax: 1-404-303-7176 info@orangeusa.com CRUSH PRO SERIES OWNERS MANUAL CR60C, CR120C & CR120H... -
Page 5: Important Safety Information
• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. CRUSH PRO SERIES OWNERS MANUAL CR60C, CR120C & CR120H... - Page 6 This Class I electrical equipment must be earthed. The correct mains fuse value for your region are displayed on the unit, close to the AC Mains Input. Replace only with the same type and value. If the mains fuse repeatedly blows, contact your Orange dealer. CRUSH PRO SERIES OWNERS MANUAL...
-
Page 7: Emi
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Note: Changes or modifications to this equipment not expressly approved by Orange Amplification may void the user’s authority to operate this equipment. -
Page 8: Before Using Your Amplifier
16Ω cabinets connected to either SPEAKER OUTPUT terminal. CR120C & CR60C Combos The Crush Pro 60 and 120 Combos both have an internal speaker load of 16Ω. The internal speaker(s) is connected at the factory. When using an extension cabinet, connect a 16Ω... -
Page 9: Front Panel Features
Controls the overall volume of both CLEAN and DIRTY channels. MASTER REVERB: Controls the level of reverb applied to both CLEAN and DIRTY channels. The reverb type is selected using the toggle switch for either PLATE, HALL or SPRING. CRUSH PRO SERIES OWNERS MANUAL CR60C, CR120C & CR120H... - Page 10 With the GAIN control set to zero, no sound will be heard on the Dirty Channel. At lower GAIN settings, the Dirty Channel VOLUME control may have to be increased to compensate. CRUSH PRO SERIES OWNERS MANUAL CR60C, CR120C & CR120H...
-
Page 11: Rear Panel Features
Always ensure the correct speaker load is connected at all times during use. Please refer to “Using Your Amplifier” for correct speaker connections. FOOTSWITCH jack sockets Connect a latching footswitch, e.g. Orange FS-2, with a Tip/Sleeve (Mono T/S) instrument cable connection to remotely switch channel and/or engage the reverb. FX LOOP (Send and Return) Use the “Send”... -
Page 12: Free Extended Warranty Offer
Orange amplifiers are under warranty for one year subject to consumer protection laws in the country of purchase and distributor’s terms and conditions, an additional year can be added by registering. Speakers supplied with an Orange amp or purchased separately at our online store are covered for 90 days from the date of purchase.
Need help?
Do you have a question about the cr60c and is the answer not in the manual?
Questions and answers

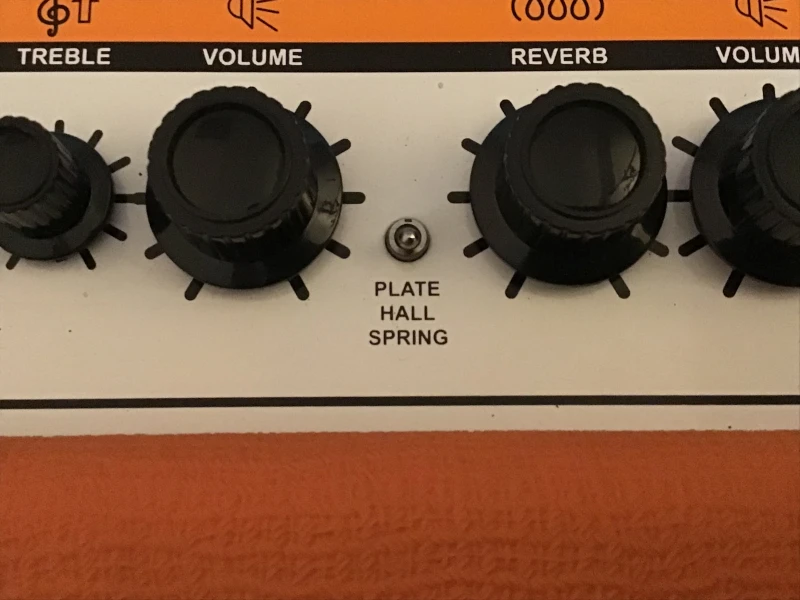

What does the plate hall spring engage
The Orange CR60C includes digital reverb simulations of spring, hall, and plate reverb. These effects enhance the amp's sound by adding depth and ambiance, making it suitable for performance and recording.
