Liberty Platinum
OWNER'S MANUAL
For Setup & Operation Videos Go To – www.anchoraudio.com
FEATURES
WIRELESS RECEIVER CONTROLS
UNIVERSAL MIC – INPUT JACKS
Balanced XLR – low impedance, for balanced
mic, powers condenser-type mics.
Unbalanced 1/4" – high impedance, for
unbalanced mics, no phantom power.
USB DC OUT - 12V 500mA
To charge/power external device
DC OUT - 5V 500mA
To charge/power external device
AC POWER CORD INLET
POWER SWITCH
MP3 PLAYER CONTROLS

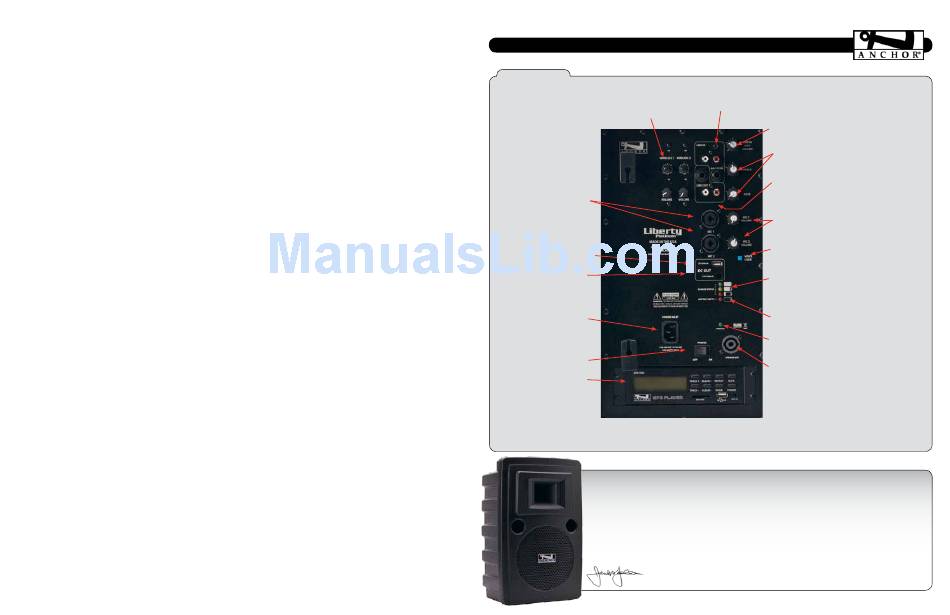

LIBERTY PLATINUM CONTROL PANEL
MODEL SHOWN IS LIB-7500MU2
FROM THE OWNER
Thank you for choosing an Anchor Audio portable sound system. Our products incorporate state-of-the-art design and the finest quality
of materials and workmanship. We're proud of our products and appreciate the confidence which you have shown by selecting an
Anchor system.
I hope you'll take a few minutes to review this manual. We've incorporated several unique features into our products, and your
knowledge of how to use them will enhance the performance and your enjoyment of the system.
Janet Jacobs – President, on behalf of all Anchor Employees
LINE IN – INPUT JACKS
1/8" (3.5 mm) jack is used to hook up a portable CD,iPOD,Laptop or other external audio source.
The 1/4" unbalanced and dual RCA Inputs can be used to daisy-chain multiple Liberty speakers.
MP3 VOLUME/LINE IN LEVEL CONTROL
TONE CONTROLS
BASS/TREBLE
LINE OUT – OUTPUT JACK
Balanced 1/4" and dual RCA provide a combined output of all active system inputs.
Record your presetation or connect to another powered sound system.
MIC LEVEL CONTROLS
VOICE OVER BUTTON
ON - Button In / Off - Button Out
CHARGE STATUS LEDS
GREEN: Charge Complete
AMBER: Nearly Complete
RED: Charging has Begun
BATTERY EMPTY LED
RED: Charge Battery Immediately
POWER ON LED
GREEN: Power On
SPEAKON OUTPUT JACK
100-0193-000 Rev A. - 05/09
