Summary of Contents for Waxman LeakSmart Water Valve

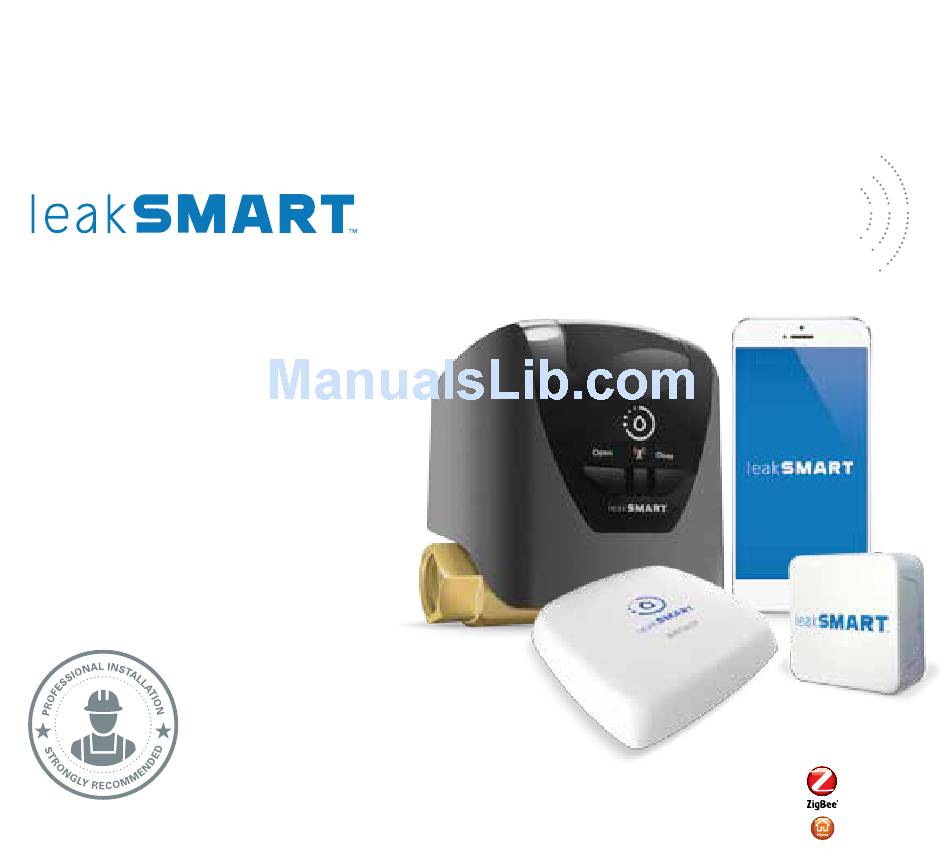

- Page 1 8811100/8815000 Monitor. Detect. Control. ™ Installation & Operation Manual ZigBee ® Certified Connects directly to Product main water supply.
- Page 2 This equipment generates, uses and can radiate radio frequency Waxman Consumer Products Group shall repair or replace it at our discretion. energy, and if not installed and used in accordance with the instructions, may The warranty is limited to defective parts as stated.
- Page 3 State of California to cause cancer and birth defects or reproductive harm. ZigBee ® Certified Product ©2016 leakSMART™ is a trademark of Waxman Consumer Products Group, Inc. LEAD FREE NSF-61 To purchase additional sensors or other leakSMART™ system accessories, visit Connects directly to getleaksmart.com...
- Page 4 Waxman Consumer Products Place Stamp Here 24455 Aurora Rd Bedford Heights, Ohio 44146 Waxman Consumer Products 24455 Aurora Rd Bedford Heights, Ohio 44146 PERFORATION...
- Page 5 Waxman interference in a residential installation. Consumer Products Group shall repair or replace it This equipment generates, uses and can at our discretion. The warranty is limited to defective...

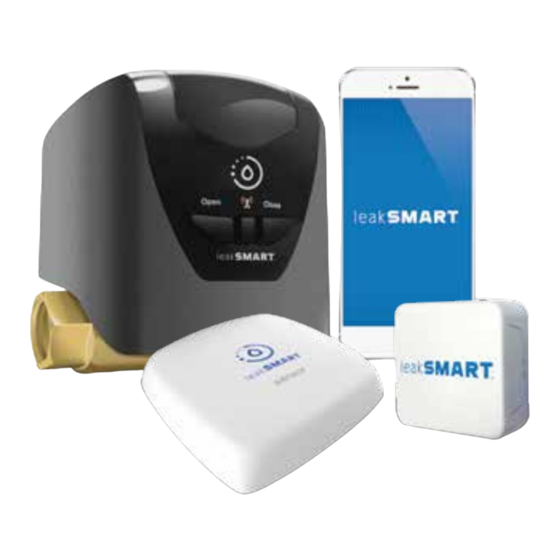

- Page 6 leakSMART ™ Complete Home Water Protection leakSMART is an innovative, wireless system that ™ eliminates the threat of water damage by keeping you in constant control of your home’s water supply. It not only detects leaks in your home, but also immediately shuts off the water, stopping damage before it can start —...
-
Page 7: Table Of Contents
leakSMART ™ TABLE OF CONTENTS • Homeowner Setup and Operation App Download ........4 � Hub ............5 � Valve ............. 6 � Sensors ..........7-9 � Manual Operation Steps ..... 10 � Professional Installation Steps ... 11-12 � • Troubleshooting Hub ............ -
Page 8: App Download
leakSMART ™ Package Contents It’s never been easier to stay in control of your home’s water supply. Setting up your leakSMART system is as simple as launching an app, pairing with ™ your smart home system and getting your leakSMART Valve installed. - Page 9 leakSMART ™ Setup and Operation *All contents for the Hub Setup are located in the brown box • Plug in the leakSMART Hub with the provided 5V Power Supply (sticker flag on the ™ power cord indicates ‘Hub only’). • Connect the provided Ethernet Cable to the Hub.
-
Page 10: Hub
leakSMART ™ Valve Setup and Operation Pair your leakSMART valve with your smart home system ™ • Place your leakSMART Valve near your installation location, ™ so you can verify that it is within range of your smart home leakSMART Hub. - Page 11 leakSMART ™ Valve Setup and Operation • All leakSMART Valve Lights should turn off once pairing mode has been ™ successfully completed. A check mark on your home screen will verify the valve has been added. � • leakSMART App, should register ‘New Valve’ on the home screen. ™...
- Page 12 leakSMART ™ Sensor Setup and Operation Pair each leakSMART Sensor with your smart home system ™ • Your leakSMART sensor provides an audible water detection ™ alarm, even without connection to your leakSMART Hub — ™ but pairing means the system will signal your leakSMART ™...
- Page 13 leakSMART ™ Sensor Setup and Operation Simply place the leakSMART Sensor anywhere you need to ™ detect moisture. Sensors must be placed on the floor, clear from debris completely flat, with the leakSMART Sensor logo ™ facing toward the ceiling. We recommend placing sensors near appliances and/or plumbing fixtures.
-
Page 14: Valve
leakSMART Valve ™ Manual Operation Steps Manual Operation of your leakSMART Valve: ™ In the event of repeated error messages from your smart home system that the valve is not automatically opening and closing, the valve may be manually opened or closed. Unplug the AC power cord from the valve cover. -
Page 15: Professional Installation Steps
leakSMART ™ Professional Installation Steps The leakSMART Valve is a patent-pending, wireless, motorized brass water ™ ball valve that connects directly to a home’s main water supply. Professional installation is strongly recommended to ensure proper operation and reliable water damage prevention. •... -
Page 16: Sensors
leakSMART ™ Professional Installation Steps The valve will also need to reach an AC power source. It is recommended that the valve is kept operating on AC power (cord provided), with batteries used as a back-up power source. Water Flow IMPORTANT: The valve must be installed after the water main manual shut-off and water meter. - Page 17 leakSMART ™ Troubleshooting Status Operation Lights Notes Double blink Connected green light Press the blue Valve and sensors must also be button once if Green light will in pairing mode. When paired Pairing Mode the green light blink steadily successfully, valve and sensor will is steady or for 3 minutes.
- Page 18 leakSMART Valve ™ Troubleshooting Your leakSMART Valve works with your smart home system to keep you in control of your home’s ™ water supply. The valve, which operates on AC power with battery back-up, will close automatically when paired with leakSMART Sensors.
- Page 19 leakSMART Sensor ™ Troubleshooting State Blue Light Audible Alarm Notes Brief chirp as Insert 3 seconds steady battery hits batteries metal contacts Fast blinking; will Ready to remain in this state and Silent repeat blinking pattern pair for three minutes Pairing Blue light blinks slowly Slow beeping...
- Page 20 leakSMART ™ Troubleshooting Problem What to Check • Make sure there is power to the outlet Status lights • Unplug AC power adapter cord from valve cover and plug back in do not come • If AC adapter extension wire was used, unplug both ends and reconnect •...
