- Page 1 IN11 16 , I N1 11 8 HD Use r Gui d e s 500203W00-GRA-N DISPERINDAG No. 0287/1.824.51/09.03 Regulatory models: P103...
- Page 2 EU member states. Please follow the guidance of your local Input ratings: 100-240Vac, 2.5A, 50-60Hz environmental authority or ask the shop where you purchased the product for collection or recycling options. InFocus reserves the right to alter product offerings and specifications at any time without notice.
-
Page 3: Table Of Contents
Table of Contents LightCast Reader Maintenance Introduction Cleaning the lens Positioning the projector Using the security lock Connecting a computer source Replacing the projection lamp VGA connection HDMI connection Connecting power Optional computer connections Displaying an image Adjusting the image Connecting a video device Video device connections LightCast Reader... - Page 4 • Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus lamps may cause electrical shock and fire, and may void the projector warranty.
-
Page 5: Introduction

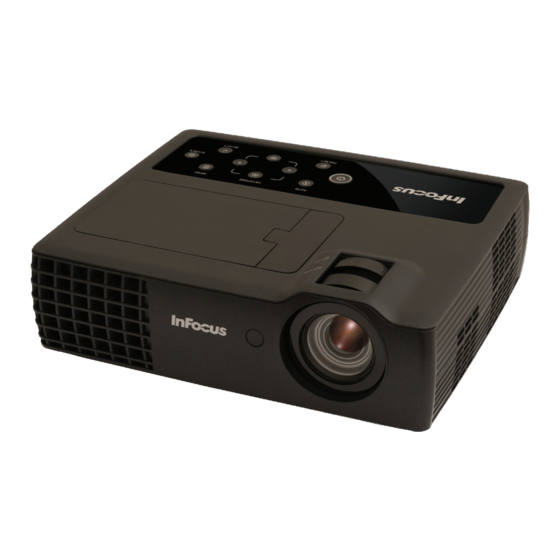

It is a versatile projector that is flexible enough for business presentations and home video viewing too. The IN1116 has native WXGA 1280 x 800 resolution, and IN1118HD has native 1080p 1920 x 1080 resolution. They are compatible with a wide variety of computers and video devices. - Page 6 Connector panel The projector provides both computer and video connection options. Computer M-USB HDMI USB A • USB type A (2): for standard wireless mouse/keyboard, USB storage devices USB A Video to be accessed by LightCast. • M-USB type B for firmware upgrades, slide advance and Screen Saver prevention •...
-
Page 7: Positioning The Projector
Positioning the projector Table 1: IN1116 (WXGA) Screen size Throw Ratio = 1.15 to 1.5 To determine where to position the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector... -
Page 8: Hdmi Connection
Connecting a computer source connect VGA cable VGA connection Connect one end of the provided computer cable to the Computer In connector on the projector and the other to the VGA connector on your computer. If you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first. -
Page 9: Displaying An Image
Displaying an image press Power button Press the Power button. The Power LED blinks green, and the fans start to run. When the lamp comes on, the start up screen displays and the Power LED turns solid green. It can take up to a minute for the image to achieve full brightness. -
Page 10: Adjusting The Image
Adjusting the image adjust height If necessary, adjust the height of the projector by pressing the elevator foot button to extend the foot. elevator Avoid placing your hands near the hot exhaust vent at the front of the projector. foot button Position the projector the desired distance from the screen at a 90 degree angle to adjust distance the screen. -
Page 11: Connecting A Video Device
Video device connections HDMI source inputs.) No video cables are provided with the projector. You can order cables from InFocus or provide your own. LightCast Reader Plug a USB thumb drive into one of the USB A connectors. See LightCast Reader®... -
Page 12: Shutting Down The Projector
Shutting down the projector Table 3: Status Indicator LEDs Auto Off Time The projector also has an Auto Off Time feature that automatically turns the Operational Mode Status Indicator Lights projector off after no active sources are detected and no user interaction with the projector is performed for 30 minutes. - Page 13 Problem Solution Result No start up screen Plug power cord into the projector Correct image press the Power button Press the SOURCE button Computer image projected Only start up screen appears activate laptop’s external port Restart laptop...
- Page 14 Problem Solution Result Computer image projected No computer image, just the words “Signal out of Press the Auto Image button on remote. Adjust computer refresh rate. Varies per operating range” system. You may also need to set a different resolution on your computer, as shown in the following problem, “image fuzzy or cropped”...
- Page 15 Problem Solution Result Image fuzzy or cropped Image clear and not cropped Change the computer's "Resolution" setting to match the projector's resolution. Varies per operating system. Correct image Move projector, adjust height Image not centered on screen Adjust horizontal or vertical position in Advanced Menu >...
- Page 16 Problem Solution Result Image not square Adjust Keystone on keypad Square image Adjust Sharpness in the Basic Menu Image not sharp Correct image Correct image Change aspect ratio to 4:3 or 16:9 in Basic Menu > Image does not fit 4:3 or 16:9 screen Aspect Ratio menu...
- Page 17 Problem Solution Result Turn off Ceiling Mount in Basic menu Correct image Image upside down Turn off Rear Project in Advanced Menu > Setup > Correct image Image reversed left to right Image Setup... menu Adjust the items in the Advanced Menu > Image > Projected colors don’t match source Correct image Color...
- Page 18 Problem Solution Result Turn off the internal LCD display on your laptop The video embedded in my PowerPoint presentation Embedded video plays correctly does not play on the screen Make sure vents aren’t blocked, turn off the projector Lamp turns on Lamp won’t turn on, the projector is overheating and allow it to cool for one minute Overheating...
- Page 19 Still need assistance? If you need assistance, visit our website at www.infocus.com/support or call us. See the Quick Start Guide for support contact information. This product is backed by a limited warranty. An extended warranty plan may be purchased from your dealer.
-
Page 20: Using The Remote Control
Using the remote control • Auto Image button to resynch the projector to the source. • Resize button to switch among aspect ratios (see page 24). The remote uses two (2) AAA batteries (not provided). They are easily installed by •... -
Page 21: Using The Audio
Using the audio connect audio cable Using the projector’s speaker Connect the audio source to the Audio In connector to hear audio through the projector speaker. Amplified speakers may also be connected to the projector using the Audio Out connector. To adjust the volume, press the Volume buttons on the remote. -
Page 22: Using The Keypad Buttons
Using the keypad buttons Most buttons are described in detail in other sections, but here is an overview of their functions: Power–turns the projector on and off (page 8). Auto - Resynchronizes the projector to the source. Preset - Toggles between the projector presets. Right arrow - When the menu or LightCast is displayed, the right arrow button is used for navigating. -
Page 23: Optimizing Computer Images
Optimizing computer images Optimizing video images After the projector is running and the image is on the screen, you can optimize the After your video device is connected properly and the image is on the screen, you image using the onscreen menus. For general information on using the menus, see can optimize the image using the onscreen menus. -
Page 24: Using The Menus
Using the menus To open the menus, press the Menu button on the keypad or remote. (The menus automatically close after 60 seconds if no buttons are pressed.) Use the arrow buttons to move up and down to review the menu options. To enter a submenu, highlight the desired submenu and press Select on the keypad or remote. -
Page 25: Basic Menu
Basic Menu Basic Menu To adjust the following settings, highlight the setting, use the right and left arrows to adjust the values. Aspect Ratio: Aspect ratio is the ratio of the image width to image height. TV screens are usually 4:3. HDTV and most DVDs are 16:9. Select Auto to have the projector choose the ratio. -
Page 26: Advanced Menu
Advanced Menu Red/Green/Blue Offset: adjusts the offset of the red, green or blue channel of the image. Advanced Menu Color Space: applies to computer and component video sources. It allows you to select a color space that has been specifically tuned for the input signal. When Auto is selected, the projector automatically determines the standard. - Page 27 PIN 3 times in succession, the projector will automati- • Blank Screen : displays a solid color or factory logo screen. cally shut down. If you lose or forget your custom PIN, contact InFocus Tech- • Mute : turns off all sound.
- Page 28 Select “Change PIN...” in the Advanced Menu > Setup > PIN settings menu. the projector powers down, the image will be displayed. Enter the existing PIN. Enter the new PIN twice. Do not forget the new PIN. Contact InFocus Support to recover a projector with a forgotten PIN. High Altitude Setting Power...
-
Page 29: Table Of Contents Lightcast Reader
LightCast Reader LightCast is a document, picture and movie viewer which can read files off a USB disk or from the internal 4.2GB memory and project them. In addition, files can be copied, pasted, and deleted from both the USB disk and internal memory. To control the LightCast reader, use the projector remote and keypad, or a third party wireless mouse and keyboard. - Page 30 To copy and paste a file or folder to another location: Once the file displays, a file controls submenu appears. Features vary based on the file type. Press the Source button on either the remote or keypad. Navigate to LightCast and press the Select button on the remote or keypad. Navigate to the Local or USB directory tab that contains the item you wish to copy.
- Page 31 Navigate to the item you wish to copy and press Select. A green checkmark appears next to the selected item. Navigate to the Local or USB directory tab. Navigate to the location you wish to paste the item into and press Select. Navigate to Paste and press Select.
-
Page 32: Introduction 4 Maintenance
Maintenance Cleaning the lens Apply a non-abrasive camera lens cleaner to a soft, dry cloth. • Projector must be off and the lens must be at room temperature. • Avoid using an excessive amount of cleaner, and don’t apply the cleaner directly to the lens. -
Page 33: Vga Connection 7 Replacing The Projection Lamp
NOTE: Be sure to use the InFocus lamp module designed for this projector. You can order new lamps from www.infocus.com (in select areas), your retailer or your dealer. Only genuine InFocus lamps are tested for use in this projector. Use of non InFocus lamps may cause electrical shock and fire, and may void the projector warranty. - Page 34 Turn off the projector and unplug the power cord. turn off and unplug wait 60 minutes Wait 60 minutes to allow the projector to cool thoroughly. projector Remove the lamp door, press down on the button in the center of the lamp door and remove the end cover.
- Page 35 Magnify Level 26 Computer In7, 26 Menu Transparency 26 Connecting Menu usage 23 Video device 10 Mute 26 Contacting InFocus 18 Contrast 24 Overscan 25, 26 Customer service contact information 18 Phase 25 Digital Zoom 26 PIN Protect 26 Power connector 7...
- Page 36 Projector Volume 24 Connecting video devices 10 Volume button 20 Keypad buttons 21 Menus 23 Warranty 18 Positioning 6 Setting up 6 Zoom 9 Troubleshooting problems 11 Projector Info 26, 27 Rear Project 26 Red/Green/Blue Gain 25 Red/Green/Blue Offset 25 Remote control 19 Resetting the projector 27 Screen Aspect 10...
