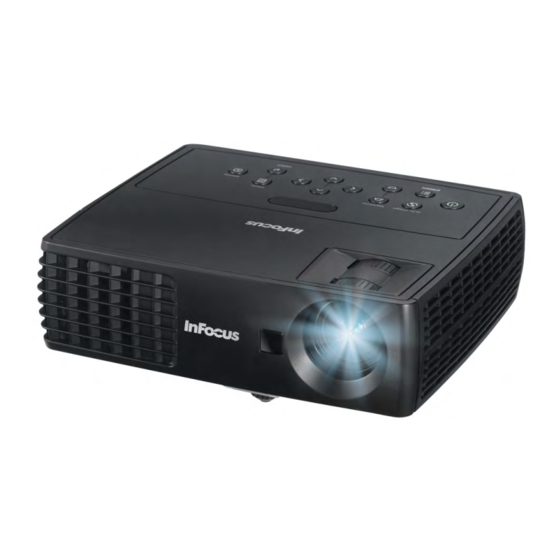

InFocus IN1110 Manual

In1100 series
Hide thumbs Also See for IN1110:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IN1110 and is the answer not in the manual?

Questions and answers

Related Manuals for InFocus IN1110

Summary of Contents for InFocus IN1110

  • Page 2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two InFocus reserves the right to alter product offerings and specifications at any time without conditions: (1) This device may not cause harmful interference, and (2) this device must notice.

  • Page 3: Table Of Contents

    Locate the projector at least 4' (1.2 m) away from any heating or cooling vents. Power connection • Only genuine InFocus lamps are tested for use in this projector. InFocus is not Optional computer connections liable for the performance, safety or certification of any other lamps. The use...

  • Page 4: Introduction

    Your new digital projector is simple to connect, easy to use, and straightforward to push-button keypad maintain. The IN1110 has native XGA 1024x768 resolution, and the IN1112 has WXGA 1280x800 resolution. This guide applies to all products. They are compatible with a wide variety of computers and video devices.
  • Page 5 Connector panel The projector provides the following connectors: • MINI USB Type B connector: Used for advancing slides and firmware upgrades. • VESA computer • S-video • Composite video • HDMI • Audio out • Audio in audio composite HDMI video audio S-video...

  • Page 6: Positioning The Projector

    • The image exits the projector at a given angle. IN1110 image offset is 115%; Table 2: (IN1112) IN1112 image offset is 112.4%. This means that if you have an image 10’ high, the bottom of the image will be 1.5' (IN1110) and 1.24' (IN1112) above the...

  • Page 7: Connecting A Computer Source

    Connecting a computer source VESA connection connect computer cable computer in HDMI audio out audio in video 1 video 2 Connect one end of the provided computer cable to the Computer connector on the projector and the other to the VESA connector on your computer. If you are using a desktop computer, you will need to disconnect the monitor cable from the computer’s video port first.

  • Page 8: Displaying An Image

    Displaying an image press Power button Touch the Power button. The Power indicator blinks green and the fans start to run. When the lamp comes on, the start up screen displays and the Power indicator is steady green. It can take a minute for the image to achieve full brightness.

  • Page 9: Adjusting The Image

    Adjusting the image release button adjust height If necessary, adjust the height of the projector by pressing the elevator foot release button to extend the foot. If necessary, rotate the leveling foot located at the rear of the projector. Avoid placing your hands near the hot exhaust vent at the side of the projector. elevator foot Position the projector the desired distance from the screen at a 90 degree angle to the screen.

  • Page 10: Video Device Connections

    No video cables are provided with the projector. You can order cables from computer cable into the VGA connector on your video source. This connector may InFocus or provide your own. be labeled “To Monitor” on the video source. Plug the computer cable into the Computer connector on the projector.

  • Page 11: Shutting Down The Projector

    (see page 16). Turn off troubleshoot the setup. the projector and wait one minute, then turn the projector on again. Visit www.infocus.com/support to contact service. Lamp Turn off the projector and wait one minute, then turn the projector on again. If the lamp light turns on again, replace the lamp and reset the lamp timer.
  • Page 12 Problem Solution Result No start up screen Plug power cord into the projector and press the Correct image power button computer in HDMI audio out audio in video 1 video 2 audio in audio out HDMI video 2 computer in video 1 audio in audio out...
  • Page 13 Problem Solution Result No computer image, just the words “Signal out Press the Auto Image button on the keypad. Adjust the Computer image projected of range” computer refresh rate in Control Panel > Display > Settings > Advanced > Adapter (location varies by operating system) Sig na l ou t of th e ra ng e audio in...
  • Page 14 Problem Solution Result Image fuzzy or cropped Set your computer’s display resolution to the native resolution Image clear and not cropped of the projector (Start > Settings > Control Panel > Display > Settings tab) For a laptop, disable laptop monitor or turn- on dual-display mode...
  • Page 15 Problem Solution Result Image not square Adjust Keystone on keypad Square image audio out audio in HDMI video 2 computer in video 1 Image not sharp Adjust Sharpness in the Basic menu Correct image Image does not fit 4:3 or 16:9 screen Change aspect ratio to 4:3 or 16:9 in the Basic menu Correct image...
  • Page 16 Problem Solution Result Image reversed left to right Turn off Rear Project in Advanced > Setup > Image Setup Correct image menu Projected colors don’t match source Adjust color, tint, brightness, contrast in the Basic menu Correct image COLOR COLOR The video embedded in my PowerPoint Turn off the internal LCD display on your laptop Embedded video plays correctly...
  • Page 17 Problem Solution Result Lamp won’t turn on, Temperature light is on Make sure vents aren’t blocked, turn off the projector and Lamp turns on allow it to cool for one minute Temperature light audio in audio out HDMI audio in audio in audio out video 1...
  • Page 18 Still need assistance? If you need assistance, visit our website at www.infocus.com/service or call us. Check out our HOW TO section there for additional information. See the Quick Start Booklet for support contact information. This product is backed by a limited warranty. An extended warranty plan may be purchased from your dealer.

  • Page 19: Using The Remote Control

    Using the remote control Troubleshooting the remote • Make sure the batteries are installed in the proper orientation and are not dead. The remote uses two (2) AA batteries. They are easily installed by removing the • Make sure you’re pointing the remote at the projector or the screen, not the cover from the remote’s back, aligning the + and - ends of the batteries, sliding them computer, and are within the remote range of 30 feet (9 m).

  • Page 20: Using The Audio

    Using the audio connect audio cable Using the projector’s speaker To use the projector's speaker, connect the audio source to the projector's Audio In connector. HDMI computer in audio out audio in video 1 video 2 To adjust the volume, press the Volume buttons on the keypad or remote. Troubleshooting Audio If you aren’t hearing the audio, check the following: •...

  • Page 21: Using The Keypad Buttons

    Using the keypad buttons Most buttons are described in detail in other sections, but here is an overview of their functions: Power–turns the projector on and off (page 7). Auto Image–resynchronizes the projector to the source (page 25). Presets–cycles through the available preset settings (page 29). Keystone–adjusts squareness of the image (page 8).

  • Page 22: Optimizing Computer Images

    Optimizing computer images Presentation features Several features are provided to make giving presentations easier. Here is an After your computer is connected properly and the computer’s image is on the overview, details are found in the menu section. screen, you can optimize the image using the onscreen menus. For general information on using the menus, see page 23.

  • Page 23: Optimizing Video Images

    Optimizing video images Customizing the projector After your video device is connected properly and the image is on the screen, you You can customize the projector for your specific setup and needs. See page 26 to can optimize the image using the onscreen menus. For general information on using page 27 for details on these features.

  • Page 24: Using The Menus

    Using the menus menu navigation buttons To open the menus, press the Menu button on the keypad or remote. (The menu automatically closes after 60 seconds if no buttons are pressed.) Use the up and down arrow buttons to highlight the desired menu option and then press the Select or right arrow button.

  • Page 25: Basic Menu

    Basic menu To change the following menu settings (or enter the Advanced menu), highlight the desired menu option and press the Select or right arrow button. Use the left and right arrow buttons to scroll through the options and make adjustments. To save your adjustments, press Select.

  • Page 26: Advanced > Image Menu

    Advanced > Image menu Video: 3D Control: • Closed Captions: controls closed caption display while audio is not muted. • Overscan: removes noise around the video image. • 3D: toggles between on and off. Turn it on to display the image in 3D. •...

  • Page 27: Advanced > Setup Menu

    Advanced > Setup menu Audio Setup: • Internal Speaker: allows the user to turn on and off the internal speaker. • Power Sound: controls whether the projector makes a sound when powered on and off. • Volume: adjusts the volume level. •...
  • Page 28 Keypad/Remote: • Blank Key: selects what to display when the Blank Key on the remote is pressed: your custom snapshot, a solid color screen (blue, black or white), the factory logo screen, a timer, or test patterns. The timer option is useful for classroom tests or break times during meetings.
  • Page 29 If you lose or forget your custom PIN: Advanced > Setup > Pin Settings menu Advanced > Setup > Power menu Contact InFocus support. Go to www.infocus.com/support • PIN Protect: the PIN (personal identification number) feature allows you to password protect your projector. Once you enable the PIN feature, you must enter the PIN before you can project an image.
  • Page 30 Source: • Power-up Source: determines which source the projector checks first for active video during power-up. • Search Screen: allows you to display a blank screen instead of the default screen at startup when no source is detected. Options include the factory logo screen, a custom Snapshot, or a blue, black or white screen.

  • Page 31: Advanced > Status/Service Menu

    Advanced > Status/Service menu Factory Reset: restores all settings to their default. Projector Info: a read-only display of current projector settings. Reset Lamp Hours: resets the lamp hours used counter in the Projector Info menu to zero. Do this only after changing the lamp. Source Info: a read-only display of current source settings.

  • Page 32: Maintenance

    Maintenance Cleaning the lens Apply a non-abrasive camera lens cleaner to a soft, dry cloth. • Avoid using an excessive amount of cleaner, and don’t apply the cleaner directly to the lens. Abrasive cleaners, solvents or other harsh chemicals might scratch the lens. Lightly wipe the cleaning cloth over the lens in a circular motion.

  • Page 33: Replacing The Projection Lamp

    • NOTE: You can order new lamps from www.infocus.com (in select areas), your retailer or your dealer. Only genuine InFocus lamps are tested for use in Lamp hours this projector. InFocus is not liable for the performance, safety or certification of any other lamps.
  • Page 34 Turn off the projector and unplug the power cord. Wait 60 minutes to allow the projector to cool thoroughly. Turn the projector upside down on a soft cloth so that the lamp door is facing you. loosen screw Loosen the two captive screws on the lamp door and lift the door off. Loosen the two captive screws that attach the lamp housing to the projector.
  • Page 35 INDEX MINI USB Type B connector 4 S-video 4 VESA computer 4 Numerics contacting InFocus 17 3D Control Custom key 21 3D 25 customer service contact information 17 3D Sync Invert 25 customizing the projector 22 Advanced > Image > 3D Control Menu 25...
  • Page 36 Blank 18 optimizing images 21 Custom 18 optimizing video 22 Mute 18 Overscan 25, 26, 27, 28, 29 Presets 18 Resize 18 PC 25 Source 18 Force Wide 25 Volume 18 PC Screen Saver 25 resetting the projector 30 Phase 25 Tracking 25 security lock 31 positioning the projector 5...

This manual is also suitable for:

In1112
