IPPBX IP08 User Manual
Product Model
Show the model of this IPPBX
Firmware Version
Show the firmware version
System Uptime
Show the time how long the system has been running
System Current Time
Show the current time
1) Network
Show the network setting of IPPBX
2) Peripheral
Show what kinds of / how many modules are detected.

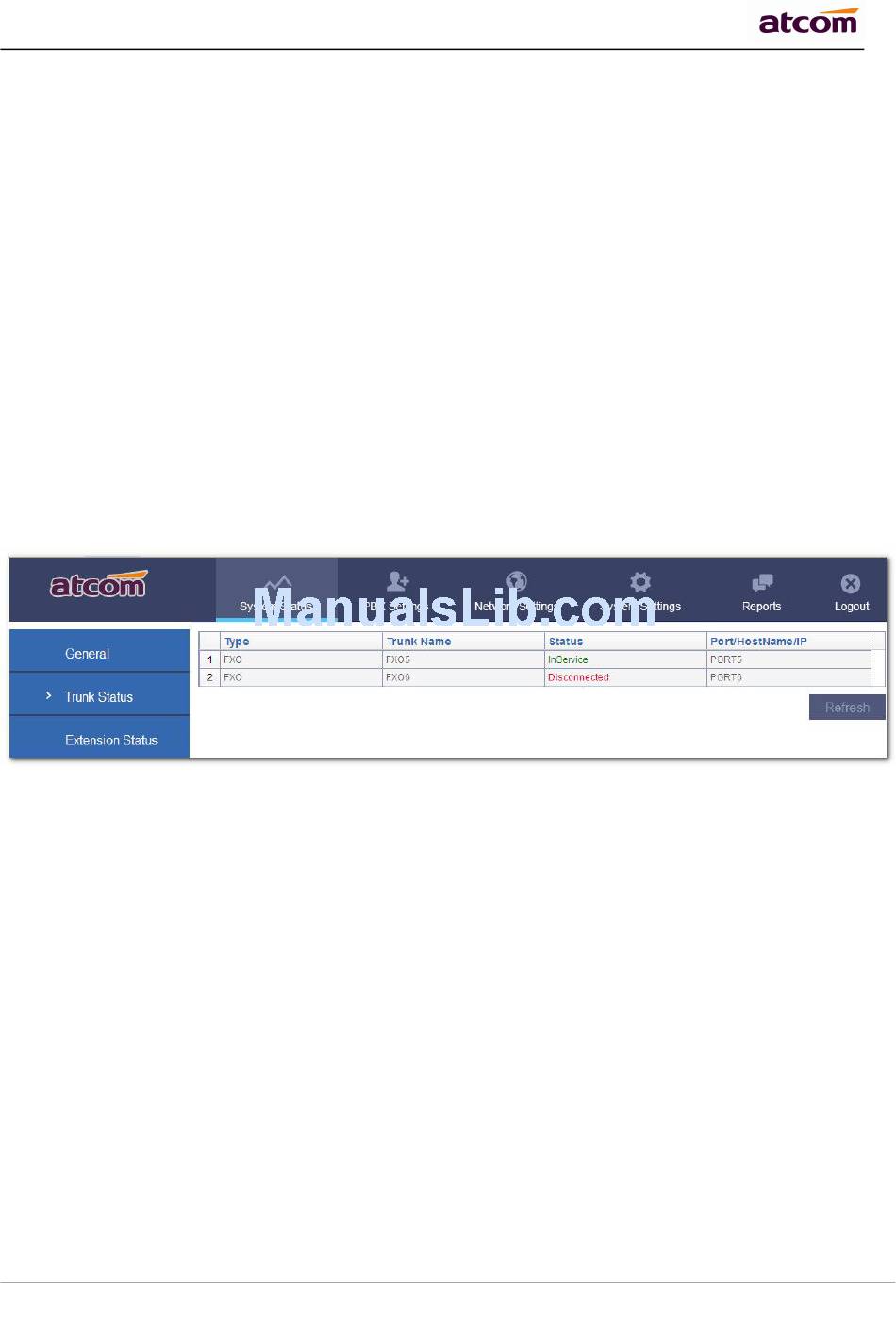

3.2 Trunk Status

Type
It could show FXO,SIP,IAX,all the types of Trunks
Trunk Name
Show the name for all the trunks
Status
Show that trunk if it connects successfully.
When FXO port connects to the PSTN line or SIP/IAX Trunk connects to the server successfully ,the Status will
show 'InService'.
When FXO connects failed, it will show 'Disconnected'
Also if the SIP/IAX Trunk connects failed, it will show 'Failed'
Ports/HostName/IP
Show which port does FXO connects
Show the HostName or IP address for SIP/IAX Trunk

3.3 Extension Status

This page is used to check the extensions status.
