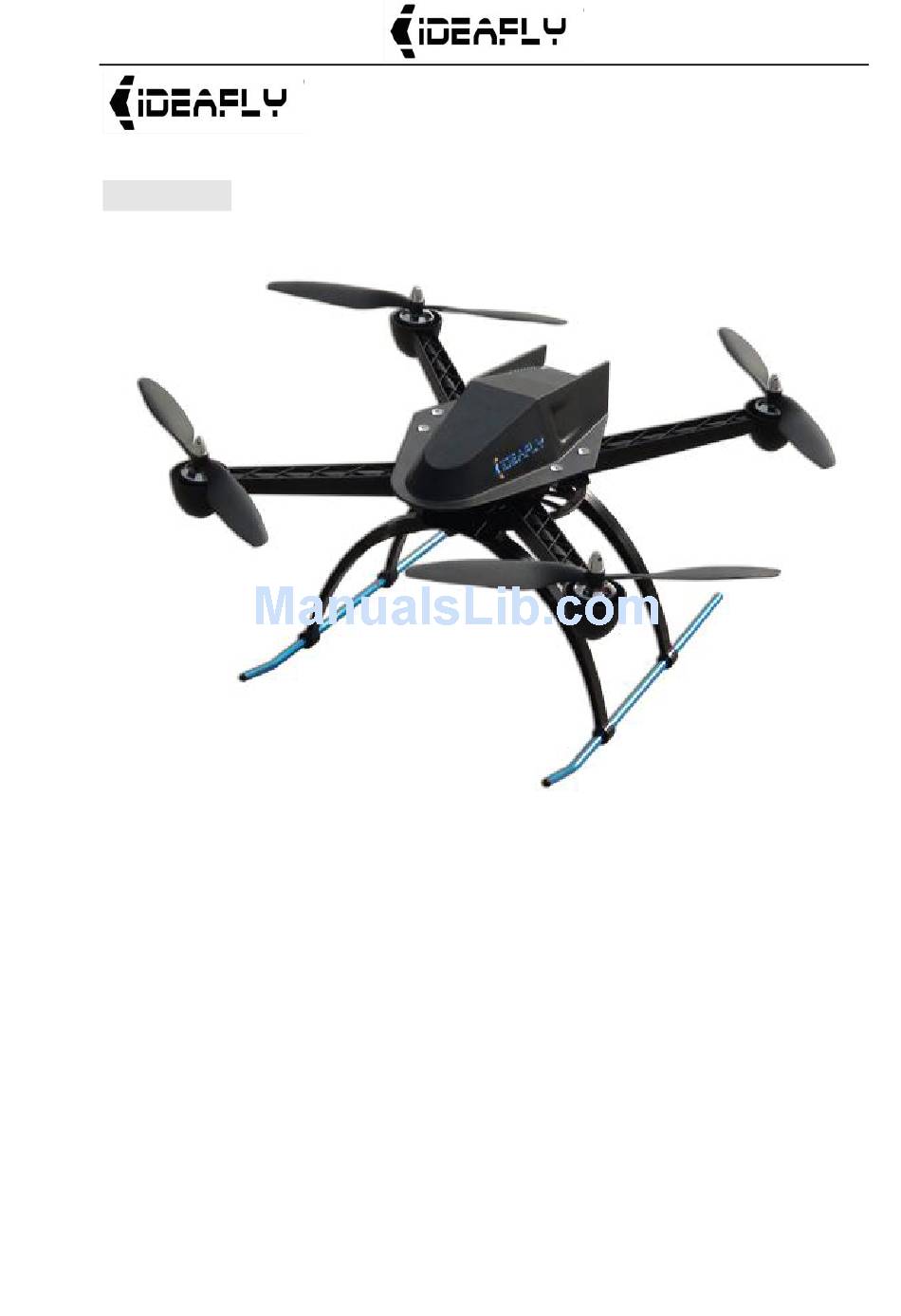

IFLY4 Multi-Copter
User Manual
ShenZhen Idea-fly Technology Co., Ltd.
http://idea-fiy.com
1

Advertisement

Table of Contents
loading

Related Manuals for Idea-fly IFLY4

Summary of Contents for Idea-fly IFLY4

  • Page 1 IFLY4 Multi-Copter User Manual ShenZhen Idea-fly Technology Co., Ltd. http://idea-fiy.com...

  • Page 2: Table Of Contents

    Statements ....................3 Preface ......................4 Introduction ....................5 Specification ....................6 Radio transmitter ..................7 Connecting radio receiver ................7 Calibrate the radio transmitter ............8 Tuning angles of camera mount ............8 Power supply ....................9 Turn on the flight ..................10 Turn off .......................

  • Page 3: Statements

    Statements  THIS PRODUCT IS NOT A TOY!  It is a sophisticated product for sports and leisure, and a combination of mechanics, electronics, aerodynamics and high-frequency radio technologies. The operator should follow instructions and security rules. Proper Installation and test are compulsory to avoid accidents.

  • Page 4: Preface

    Preface Dear Customer: Thanks for choosing idea-fly R/C hobby product! To handle it as fast as possible, please read all instructions carefully. In addition, please keep this manual for further reference in the future. The flight is equipped with high-performance electronic flight controller, foldable fuselage, highly-efficient brushless motors and high-speed, silent motor governor.

  • Page 5: Introduction

    Introduction Cool appearance and foldable design Four low-noise brushless motors High-performance flight control system(flight controller + motor governor + power connector ) Net weight: 620g（exclude radio receiver and battery） Payload：450g(exclude radio receiver and battery) Single axis camera mount(additional)

  • Page 6: Specification

    Specification size Weight & payload   size: 57cm X 57cm Flight body weight: 640g   Distance between motors: Payload: 500g  45cm Maximum Takeoff Weight: 1,150g  Height : 25.4cm Propeller Motor   Material: Plastic Brushless Motor: (IFly2212)11.1v ...

  • Page 7: Radio Transmitter

    Before using transmitter(radio controller). IFLY4 support ordinary PWM radio transmitter like futaba\jr. IFLY4 may need at most 7 channels to achieve flying forward/backward, tilting left/right, rotating around z axis, controlling throttle , switching flight modes, tuning camera mount. To fly it, you need at least 5 channels.

  • Page 8: Calibrate The Radio Transmitter

    P2：Connecting to servomotor which controls roll angle of camera mount Calibrate the radio transmitter IFLY4 support ordinary PWM radio transmitters. You should calibrate range of joysticks, otherwise you can not start the flight or may cause accident. Please refer to "Transmitter Calibration" part.

  • Page 9: Power Supply

    Li-battery to power it. Low power alert IFLY4 has low power alert function. When voltage of battery goes less then 10.8v, the speaker will beep and led will turn on. You should turn off the flight and exchange your battery.

  • Page 10: Turn On The Flight

    3: motors start running at low speed. If this does not work, please check transmitter channel settings or recalibrate the transmitter. Mode1 throttle on right Mode2 throttle on left hand side hand side Caution： Do place the flight stationarily when you start it, otherwise IFLY4 can not work well.

  • Page 11: Turn Off

    Turn off There are 2 ways to shut the flight down 1: put the throttle joystick down to the lowest position and hold it on for more than 5 seconds, the flight will shutdown; 2: The following steps will shutdown power immediately: 1: put th throttle joystick down the lowest postion;...

  • Page 12: Fixing Propellers

    Fixing propellers IFLY4 need 10" clockwise/counter-clockwise propellers. Please fix them under guidance of following steps, otherwise the flight will not work.
  • Page 13  1st step：fasten propeller on motors  2nd step：put motor shaft through the hole of propeller clamp  3rd step：screw up propeller clamp with screw driver. ：  Caution Pls check whether propeller is fasten firmly before every 。 flight...

  • Page 14: Control Modes

    Manual mode IFLY4 can not auto level itself at this mode, you should adjust transmitter all the time to keep the flight under control. Balance mode IFLY4 will auto level itself, and you can change tilt angles of the flight by...

  • Page 15: Firmware

    Height locked mode At this mode, IFLY4 will auto level and keep its height locked. Once the throttle joystick is within the hover range, the flight will keep its height.( hover range can be adjust by computer software.) Firmware You can update IFLY4 with latest firmware to achieve best performance.

  • Page 16: Working State Checking

    Working state checking After propellers are correctly installed, power on flight and check joystick movement. level flight on the ground, and put transmitter besides it. power on the flight, hold the flight by the left hand《 Do not touch propellers》pull throttle stick up to 20%. roll aileron, elevate, rudder joystick slightly to check whether the flight performs correctly if the flight does not performs correctly, please check rotating...

  • Page 17: Operation

    Operation Mode1 《throttle on right-hand-side》 just for reference push up right stick down pull down right stick turn left turn left- stick to left turn right turn left- stick to right head push down/go left forward stick up...
  • Page 18 head up/go pull backward left- stick down tilt left turn right- stick to left tilt right turn right- stick to right...

  • Page 19: Fuselage Folding

    Fuselage folding unfold fold backward fold along head and tail fold along left and right simply folding fuselage without folding in any direction, convenient tools to carry...

  • Page 20: Warning And Caution

    Warning and Caution Far away from human or building Rotating propeller is dangerous to human; make sure fly it far away from crowds. Improper installation, broken components or abnormally working controller, even slight mistake of operation may cause serious accident. Pilot should keep it safe, and be ware of safety responsibility. Flying field should be large enough, we recommend no less than 100m*100 m, far away from crowds, high building, high-voltage towers, woods or any other things, which may cause accidents or damages.
  • Page 21 Do not fly it alone Novices should be guided and supervised by experts. Do not fly it all by yourself alone. Practice on simulator software may be helpful. Far away of running components Do be away from any operating components, especially rotating propellers.
  • Page 22 Maintenance  IFLY 4 quad-copter is composed of sophisticated components. Do please make sure everyone works well to achieve best performance. Improper maintenance may cause accidents or damages. We strongly recommend that maintain this suite regularly.  If motors do not work well, serious vibration may emerge. Please check propellers work well or fixed firmly, replace them if necessary ...
  • Page 23 Manufacturer: Shenzhen idea-fly Technology Co., Ltd. Address: Room 215, Shangtang Building, Longhua town, Bao'an District, Shenzhen City, Tel: +86-0755-23110006 Web: www.idea-fly.com Email: idea-fly@hotmail.com...
