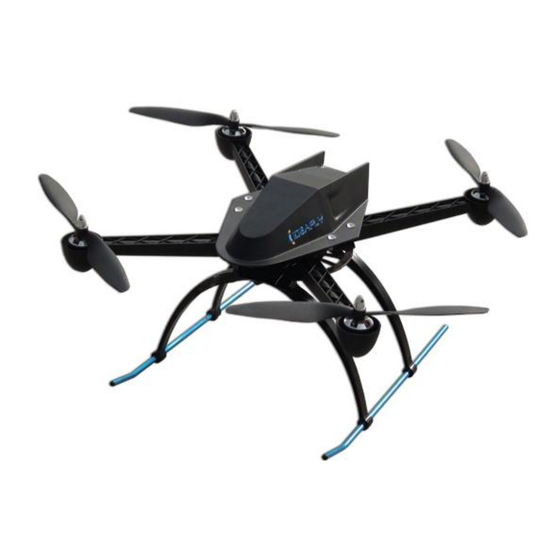

IFLY4 Multi-Copter
User Manual
Statements
Specification
Turn On/Off
Maintenance
ShenZhen Idea-fly Technology Co., Ltd.
http://idea-fiy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IFLY4 Multi-Copter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Idea-fly IFLY4 Multi-Copter

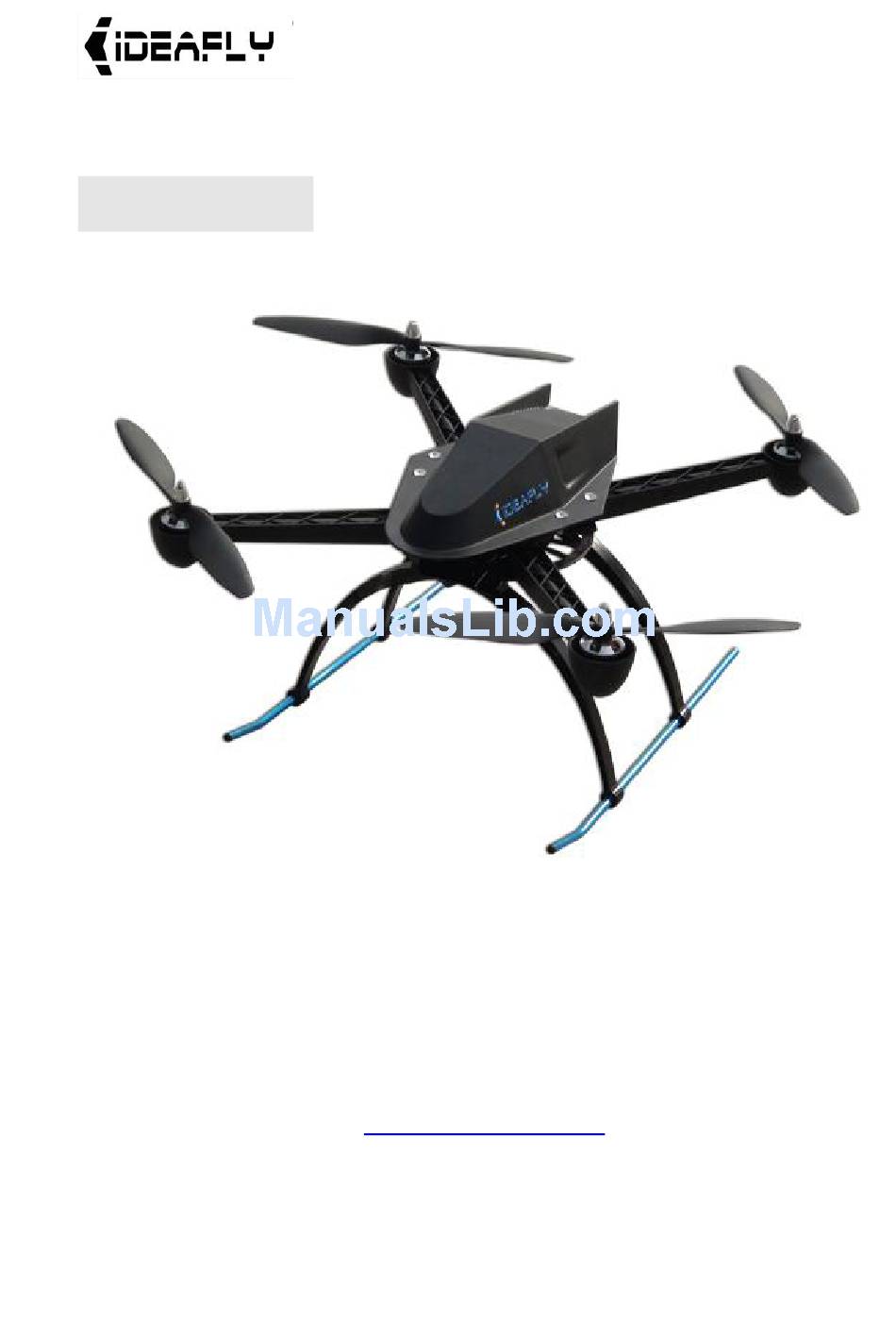

  • Page 1 IFLY4 Multi-Copter User Manual Statements Specification Turn On/Off Maintenance ShenZhen Idea-fly Technology Co., Ltd. http://idea-fiy.com...
  • Page 4 Statements  THIS PRODUCT IS NOT A TOY!  It's a sophisticated product for sports and leisure, combination of mechanics, electronics, aerodynamics and high-frequency radio technologies. The operator should follow operation instructions and security rules. Proper installation and test are compulsory to avoid accidents.
  • Page 5 operation or illegal use.  Any questions about use, operation, maintenance or other issues, please contact local distributors.
  • Page 6: Table Of Contents

    Index Index ......................6 Preface ......................2 Specification & Configuration ............... 3 Configuration ..................4 Warning and Caution ................5 Far away from human or building..........5 Do not fly it alone ..............6 Far away of running components ..........6 Avoid moist environment ............
  • Page 7: Preface

    Preface Dear Customer: Hello! Thanks for using idea-fly R/C hobby product! To handle it as fast as possible, please read instructions carefully. And pls keep this manual for further reference in the future. With sophisticated flight controller and foldable fuselage, this flight is suitable for outdoor sports and entertainment.
  • Page 8: Specification & Configuration

    1. Specification & Configuration Pictures are only for reference, we keep the right to modify these materials without any prior notices. size Weight & payload   width: 57cm Body weight: 620g   length: 57cm Payload:450g   Distance of motors: 45cm Maximum Takeoff Weight: 1,100g ...
  • Page 9: Configuration

     each axis Anti-rotating Propeller : 10inch * 2  Governor: 15A digital governor Camera Mount Working environment   Camera Mount with vibration Ambient Humidity: <%80  isolation Ambient temperature: 0-60 (Celsius  Material: carbon fiber degrees )  ...
  • Page 10: Warning And Caution

    3. Warning and Caution 3.1 Far away from human or building Rotating propeller is dangerous to human, make sure fly it far away from crowd. Improper installation, broken components abnormally-working controller, even slight mistake of operation may cause serious accident. Pilot should keep security, and be ware of safety responsibility.
  • Page 11: Index

    3.2 Do not fly it alone Novices should be guided and supervised by expert. Do not fly it all by yourself alone. Practice on simulator software may be helpful. 3.3 Far away of running components Do be away from any operating components, especially rotating propellers.
  • Page 12: Checks Before Flight

    4. Checks before flight 1. propellers should be installed and fasten correctly and firmly 2. receiver wire connection should be in correct order 3. receiver and antenna should be well fasten 4. battery is fully charged, and fasten 5. motors should be connected to motor drivers correctly and firmly 6.
  • Page 13: Connections

    5. Connections Flight controller interface description A:AILE E:ELEV T:THRO R:RUDD M: MODE MODE SWITCH INPUT S1:S2: (Picth,Roll)camera tilt control input P1:P2: (Picth,Roll)camera tilt output...
  • Page 14: Turn On And Calibration

    6. Turn on and Calibration  level calibration: if the flight tilting during flight or taking-off, please calibrate sensors. Put the flight level on the ground, operate transmitter just as following picture. There is one beep after the calibration finish Mode 1 throttle on the Mode throttle...
  • Page 15: Turn On Motors Without Propeller

     upside instructions should be strictly followed step by step. Incorrect operation order may make the flight out of control and cause accident. 6.1 Turn on motors without propeller 1. After we connect all electronic devices, power up flight controller before we fasten propellers Put throttle stick down to lowest position.
  • Page 16: Propeller Installation

    7. Propeller installation Fasten clockwise-rotating-propellers to #1 and #3 motors; fasten anti-clockwise-rotating-propellers to #2 and #4 motors. Please strictly follow instruction of this picture. : 《 Caution flight can not fly with improper installation of propellers...
  • Page 17  1st step:fasten propeller on motors  2nd step:put motor shaft through the hole of propeller clamp  3rd step:screw up propeller clamp with screw driver.  Caution : Pls check whether propeller is fasten firmly before 。 every flight...
  • Page 18: Working State Checking

    8. Working state checking 1. After propellers are correctly installed, power on flight and check joystick movement 2. level flight on the ground, and put transmitter besides it 3. power on the flight, hold the flight by the left hand《 Do not touch propellers》pull throttle stick up to 20%.
  • Page 19: Operation

    9. Operation Mode1 《throttle on right-hand-side》 just for reference push up right stick down pull down right stick turn left turn left stick left turn right turn left stick right head push down/go left forward stick up...
  • Page 20 head up/go pull left backward stick down tilt left turn right stick left tilt right turn right stick right...
  • Page 21: Fuselage Folding

    10. Fuselage folding unfold fold backward fold along head and tail fold along left and right simply folding fuselage without folding in any direction, convenient tools to carry...
  • Page 22: Maintenance

    11. Maintenance  IFLY 4 quad-copter is composed of sophisticated components. Do please make sure everyone works well to achieve best performance. Improper maintenance may cause accidents or damages. We strongly recommend that maintain this suite regularly.  If motors do not work well, serious vibration may emerge. Please check propellers work well or fixed firmly, replace them if necessary ...
  • Page 24 Manufacturer: Shenzhen idea-fly Technology Co., Ltd. Address: Room 215, Shangtang Building, Longhua town, Bao'an District, Shenzhen City, Tel: +86-0755-23110006 Web: www.idea-fly.com Email: idea-fly@hotmail.com...
