Summary of Contents for Idea-fly Poseidon Pro V2

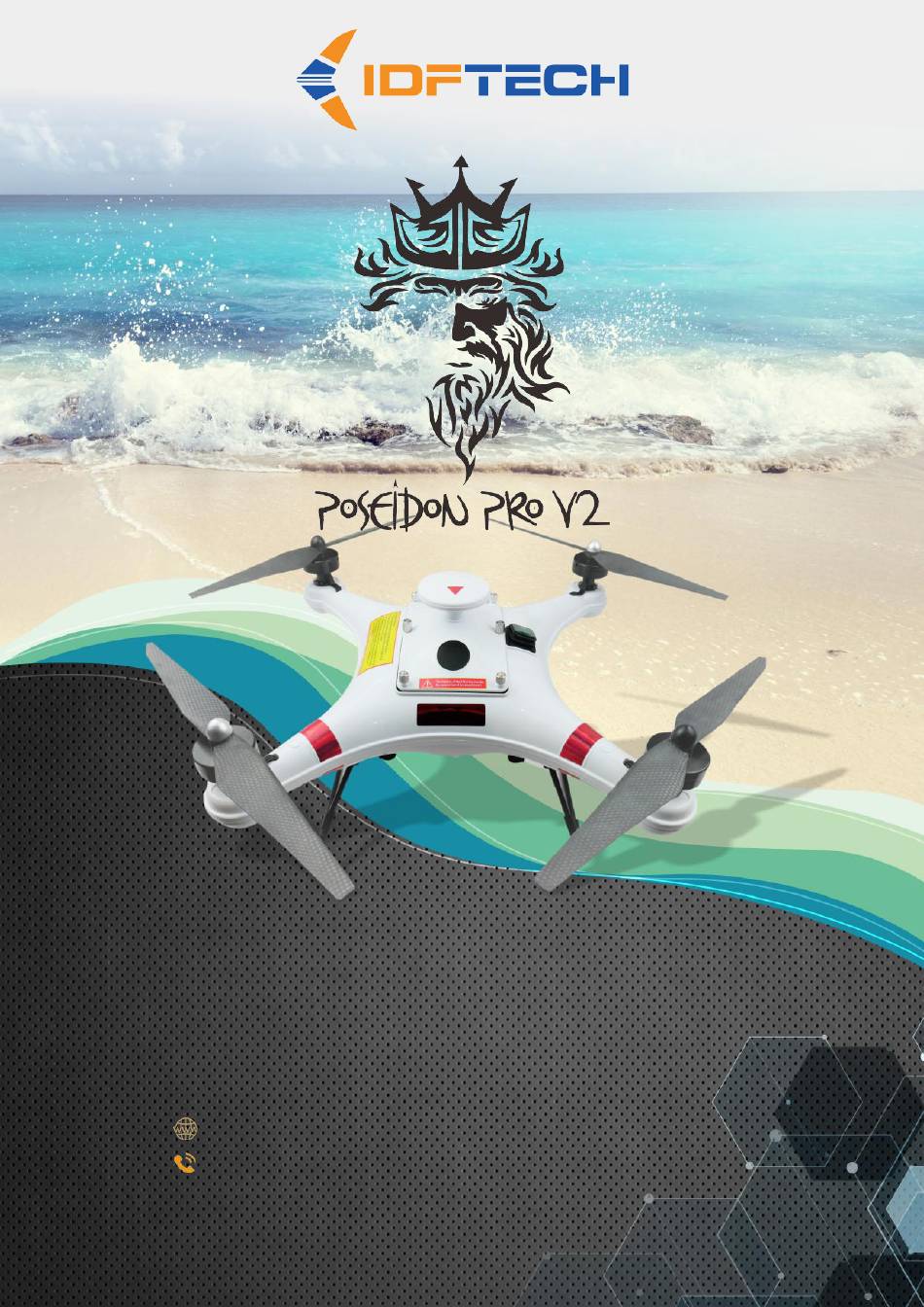

- Page 1 User Manual V2 Shenzhen Idea-Fly Technology Co., Ltd www.idea-fly.com/en/ +86 0755 23110006 Room 201, Building 1, Jianhui Road I Industrial Park, Longuha Street, Longhua District, Shenzhen @2020 iDFTECH...
-
Page 2: Table Of Contents
Thank you very much for choosing this quality product and we hope you have many hours of enjoyment. If you would like more information than what is contained in this manual, please visit our official website www.idea-fly. com/en/ or call our customer service staff. -
Page 3: Disclaimer
Once you have used this product, it is deemed that you have fully understand and accepted the contents of this manual. In the event of improper setup and/or use of the product, Shenzhen Idea-Fly Technology Co., Ltd will not accept any liability for damages or compensation. - Page 4 Personal Responsibility To Drone Maintenance As a drone owner it is your personal responsibility to maintain the drone for safe operation and ensure you calibrate the compass whenever you have moved to a new location. Failure to check your drone could result in erratic flying and a crash.
-
Page 5: Safety Precautions
Safety Precautions This quadcopter can be extremely dangerous and could cause personal injury. Be careful when flying and operating it. Please follow the contents of this manual and comply with your relevant local laws and regulations when flying. Before each flight, please ensure that all parts of the aircraft are properly installed and that the order of rotation of the four motors are in accordance with the rotation sequence in this manual. -
Page 6: Features
Poseidon Pro APP supports both IOS and Android operating systems.You can also take video and photos directly to your phone or tablet via the App. Poseidon Pro V2 comes with a Polarised Lens CAP making it easier to see into the water. -
Page 7: Components List
Components List What’s in the box Poseidon-PRO Waterproof Aircraft (including bait clasp and camera) x 1 10-Channel 2.4GHz Digital Remote Controller 100W Smart Balance Charger 1355 Quick Release Self-Locking Propeller x 4 6S 7300mAh 22V lithium polymer battery x1 Instructional USB Paper manual x1 Carry Case BX100 and Spares... -
Page 8: Remote Controller
Remote Controller The remote controller has been pre-set by the factory and has been specifically coded to your drone. Please do not adjust or modify the settings on the remote control, including the fine-tuning buttons as this may result in the drone and remote not being paired, causing the drone/remote to not work. -
Page 9: Quadcopter
Quadcopter It is recommended that you read this chapter carefully and follow the steps in this section for the correct installation of components and to prepare for the Poseidon-PRO before flight. Improper installation may cause the Poseidon-PRO to malfunction and cause damage to the aircraft or injury. Clockwise rotation Anticlockwise rotation FRONT... - Page 10 LCD Screen Cooling Fan DC Output 5V 2.1A PC Link Temp. Sensor Balance Sockets Battery Sockets 3. Once all of the parameters are input, Press and HOLD the ENTER Button down until the Charger makes a confirmation sound and displays ‘CONFIRM’ – Please ENTER again to confirm and the battery will commence charging.
-
Page 11: Starting And Stopping Motors
LiPo Voltage Chart 1 Cell 2 Cell 3 Cell 4 Cell 5 Cell 6 Cell 20.00% 3.72 7.44 11.36 14.88 18.60 22.32 30.00% 3.78 7.56 11.34 22.68 15.12 18.90 40.00% 3.84 7.68 11.52 15.36 19.20 23.04 50.00% 3.90 7.80 11.70 15.60 19.50 23.40... - Page 12 2. Attitude mode (SWB switch in the middle position) When the remote-control switch mode (SWB) switch is set to the attitude stabilization mode position, the stick is unlocked, and the throttle midpoint is taken up. due to the advanced algorithm of DJI NAZA-M-V2 flight control.
-
Page 13: Assembly
Assembly Propeller Installation Make sure the remote controller and aircraft is turned off Install the correct propeller onto the Poseidon-Pro aircraft as shown below; FRONT Propeller with silver cap installed in position of 1 & 3 Propeller with black cap installed in position of 2 &... -
Page 14: Led Indicators
LED Indicators Always turn the remote controller on first, then turn on the Poseidon-Pro power. Do not shake the Poseidon Pro when the system is initializing, once initialized the LED indicator will display the following light sequence. @2020 iDFTECH... -
Page 15: Compass Calibration
Compass Calibration Be sure to calibrate the compass when you fly for the first time or if you are changing to a new flight area. When calibrating, please make sure that the surrounding area is relatively empty, away from strong magnetic environments like high-voltage lines, parking lots with underground concrete steel bars and building areas. - Page 16 4. Vertical calibration Make sure the front of the aircraft is pointed downwards and rotate the aircraft 360° anti-clockwise until the green LED indicator light turns off, the calibration is completed. Vertical Calibration If the calibration is successful, the calibration mode will automatically exit, and the LED indicator light will flash normally, however if the calibration fails a red light will flash.
-
Page 17: Quadcopter Control Operation
Quadcopter Control Operation Quadcopter action Remote controller instruction Mark the front throttle Control quadcopter Rise and fall mode 1 mode 2 left hand is throttle Right hand is throttle Control aircraft forward and backward mode 1 mode 2 left hand is throttle Right hand is throttle Remote controller instruction The aileron control the... -
Page 18: First Flight Checklist
This Training Manual will assist you with your first flight only and does not take the place of your manual or the instructional videos. Ensure you have read and understood the videos and manual. Ensure you always have the manual with you for reference. First Flight Checklist Before You Attempt to Fly •... - Page 19 Taking Your First Flight Always use a Drone Landing Pad or Mat – the bigger the better like the OANNES 130cm Landing Pad or OANNES 1.8m X 1.8M Beach Landing Mat. Powerup Procedure Always turn the remote controller on first and then the craft. Connect APP Keep the craft totally still on power up –...
- Page 20 Always fly in GPS mode - SWB switch in the top position Never Dis-Arm the craft whilst in the air – Unless a collision is un-avoidable. By disarming the propellers before a collision may save the Motors from damage. Landing The Craft The craft will descend when the left throttle stick is below halfway •...
-
Page 21: Learning To Drop Baits
Do not attempt to carry more than half a kilo while you are learning. The Poseidon Pro V2 can carry 700gms baits out to 200metres four - five times on average and dependent upon wind conditions. - Page 22 DRONE FISHING RIG BASIC SNAPPER RIG NOTE: The overall length of the rig should be no less than 4 metres and is dependent on the water depth you are dropping into - ideally 6 metres to drone reduces the pendulum effect. NOTE: Using lower than 0.7mm line to the drone will cause tangles.
- Page 23 2. Ensure the reel bail is open for spinning reels. If you are using an overhead reel, bring the drag setting down to a light level but be careful not to go too far as you can over spool the reel. With overhead reels set the ratchet as this is a great Auditory warning should you have a line snag or reel bind.
-
Page 24: Care And Maintenance
Care and Maintenance Drones require responsible operators that keep safety as top priority, and to keep your drone safe you will need to maintain it properly. Drones require regular maintenance and frame and motor care. 1. Clean everything regularly and use a high-quality anti-corrosion fluid such as Corrosion X and apply Silcone Grease to the GPS lid seals to maintain the waterproof integrity. -
Page 25: Poseidon-Pro Technical Specifications
Poseidon-Pro Technical Spesifications AIRCRAFT Dust/Waterproof Rating IP67 – Surface Buoyant Dimensions Axis Diameter 480mm Drone Weight Including Battery 2.3 kg Max Flight Weight 3.8 kg Max Payload Capacity 1.5 kg Wind Rating - Typical Beaufort Force Level F5 - Typical Max - 17 -21 knots Wind Rating - Peak Beaufort Force Level F6 - Wind Gusts to 22-27 knots Working Temperature Range:... - Page 26 FLIGHT CONTROL SYSTEM Make/Model DJI-NAZA-M-v2 (Operating system requirements) Windows XP sp3 / Windows 7 / Windows 8 Support iPhone Bluetooth DJI NAZA-M-v2 Software DJI NAZA-M-v2 PC Positioning Satellite Dual Satellites - GPS/GLONSS REMOTE CONTROLLER Model Flysky I6S – 10 Channels Channels Battery requirements 4 X (AA)
- Page 27 +86 0755 23110006 sales-03@idea-fly.com AUSTRALIAN & NEW ZEALAND DISTRIBUTOR UDF DISTRIBUTION PTY LTD sales@udfdistribution.com.au www.udfdistribution.com.au This manual is subject to update or change without notice...
- Page 28 Shenzhen Idea-Fly Technology Co., Ltd www.idea-fly.com/en/ +86 0755 23110006 Room 201, Building 1, Jianhui Road I Industrial Park, Longuha Street, Longhua District, Shenzhen...
