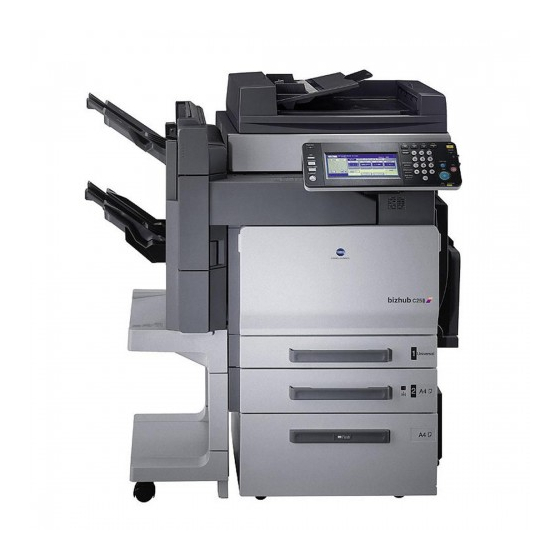

SERVICE MANUAL
THEORY OF OPERATION
This Service Manual is designed for machine
This Service Manual is designed for machine
with Firmware Card Ver. G4 and onward.
with Firmware Card Ver. G4 and onward.
2006.08
Ver. 3.0
