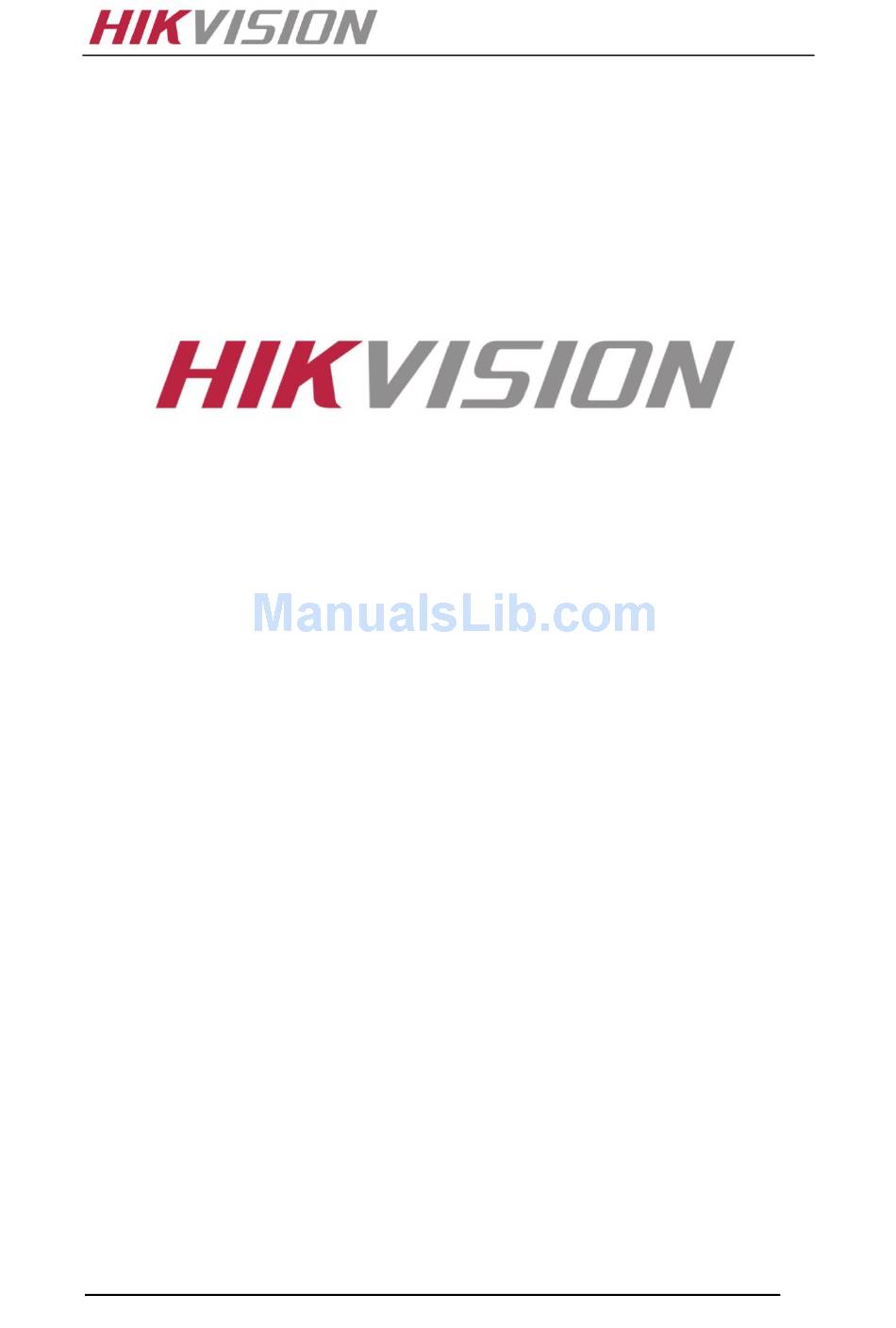

- Page 1 Hikvision Technical Manual DS-8000HCI-S Series Net DVR Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.
- Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
- Page 3 Hikvision Technical Manual Contents 1. Overview 2. Model Description 3. Features 4. Specifications ©2006 – 2010 by HIKVISION. All rights reserved.
-
Page 4: Front Panel
DS-8000HCI-S series combines the advantages of Digital Video Recorder (DVR) and Digital Video Server (DVS). It is widely applied as a stand-alone unit or a part of a powerful surveillance system. Front Panel DS-8004HCI-S Rear Panel DS-8008HCI-S Rear Panel ©2006 – 2010 by HIKVISION. All rights reserved. - Page 5 Hikvision Technical Manual DS-8016HCI-S Rear Panel ©2006 – 2010 by HIKVISION. All rights reserved.
-
Page 6: Model Description
Hikvision Technical Manual 2. Model Description DS-8004HCI-S: 4-ch video input and 4-ch audio input. Each channel can max support CIF encoding resolution real time. It supports 4 SATA interfaces, no aux video/audio output DS-8008HCI-S: 8-ch video input and 8-ch audio input. Each channel can max support CIF encoding resolution real time. -
Page 7: Preview And Playback
Support video signal loss alert. Support 2-ch synchronous playback. Support play forward, backward, pause, frame-by-frame, etc Support play back by files or by time/date Displays local record status ©2006 – 2010 by HIKVISION. All rights reserved. - Page 8 Support bi-directional audio or one-way audio broadcast Support IE preview and configuration Support SADP protocol Support remote log query 3.5 Development support: Provide network SDK (Software Development Kit) Provide client demo source code ©2006 – 2010 by HIKVISION. All rights reserved.
-
Page 9: Specifications
1 channel, BNC (2.0Vp-p, 1KΩ) Communication 1 RJ45 10M/100M Adaptive Ethernet Interface interface 1 RJ45 RS-232 Port RS-485 Port 1 Port (T+, T-, R+, R-) Keyboard 2 RJ45 1 Port (D+, D-) ©2006 – 2010 by HIKVISION. All rights reserved. - Page 10 Working -10℃ ~ +55℃ temperature Working 10% ~ 90% humidity Size 470mm(D)*441mm(W)*90mm(H) Weight ≤ 8Kg (without HDD or DVD-R/W) PAL: 176×144(QCIF), 352×288(CIF), 704×288(2CIF), 528×384(DCIF), 704×576(4CIF); NTSC: 176×120(QCIF), 352×240(CIF), 704×240(2CIF), 528×320(DCIF), 704×480(4CIF). ©2006 – 2010 by HIKVISION. All rights reserved.
