Congratulations on purchasing your new
Casablanca® ceiling fan! It will provide
comfort and performance in your home
or ofice for many years. This installation
and operation manual contains complete
instructions for installing and operating
your fan.
We are proud of our work and appreciate
the opportunity to supply you with the
best ceiling fan available anywhere in the
world.
To register your fan, please visit:
www.CasablancaFanCo.com/register
Save your receipt for proof of purchase.

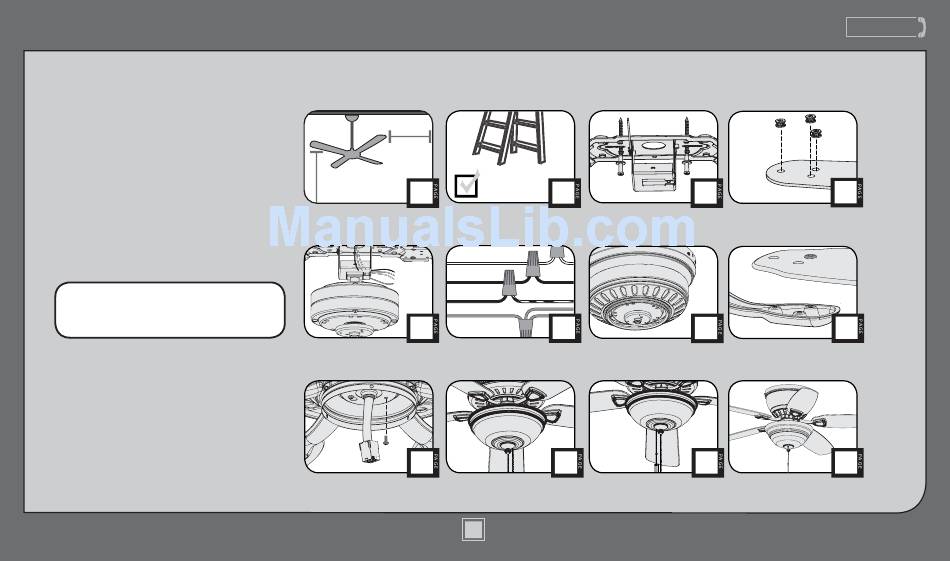

What to Expect with
Your Installation
Tools Needed
30 inches
7 feet
2
Hanging the Fan
6
Switch Housing
Light Kit
10
1
M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company
www.CasablancaFanCo.com
Ceiling Bracket
Ladder
3
Wiring
Motor Housing
7
Maintenance
& Cleaning
11
1.888.227.2178
Preparation
5
4
Blades
8
9
Troubleshooting
?
?
?
13
14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hunter M6017-01
Summary of Contents for Hunter M6017-01
- Page 1 Hanging the Fan Wiring Motor Housing Blades world. To register your fan, please visit: www.CasablancaFanCo.com/register Save your receipt for proof of purchase. Maintenance Switch Housing Light Kit & Cleaning Troubleshooting M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company...
-
Page 2: What To Expect With Your Installation
- All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualiied electrician. c.2 - Use only Casablanca replacement parts. Check box to see fan weight M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company... -
Page 3: Tools Needed
Tools Needed 1.888.227.2178 Power Drill 9/64” Drill Bit Ladder (optional) Screwdrivers (optional) If mounting to a support structure, you will also need these tools. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company... -
Page 4: Ceiling Bracket
To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the Refer to warning w.1 on pg. 2 outlet box associated with the wall switch location. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company... - Page 5 Ceiling Bracket (continued) Preparation 1.888.227.2178 1.888.227.2178 Time Saver Tip: Get a helper to insert grommets, found in hardware bag, into the blades while you’re doing the next couple of steps. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company...
-
Page 6: Hanging The Fan
Be sure the ground wire attached the motor to the ceiling bracket. to the hanger faces out of the large opening in the ceiling bracket. Note: Fan style may vary. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company... - Page 7 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company...
-
Page 8: Motor Housing
The motor housing is not secured until the next step is complete. Do not leave unattended. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company... - Page 9 M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company...
-
Page 10: Switch Housing
Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing ixture falling. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company... -
Page 11: Light Kit
Go to www.CasablancaFanCo.com/FAQs and click the upper switch housing. Failure to properly secure all three “How do I install my fan without the light kit?” assembly screws could result in the light ixture falling. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company... - Page 12 Note: Glass shade style and number of lights may vary. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company...
- Page 13 Carefully remove the globe. Unscrew bulbs and replace with bulbs of same type and wattage. Reinstall the globe assembly. For questions regarding removing a light kit, call 1-888-227-2178. customer service M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company...
-
Page 14: Troubleshooting
• Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on page 7. • Check the plug connection in the switch housing. M6017-01 • 06/25/15 • © 2013–2015 Casablanca Fan Company...
