Outdoor unit

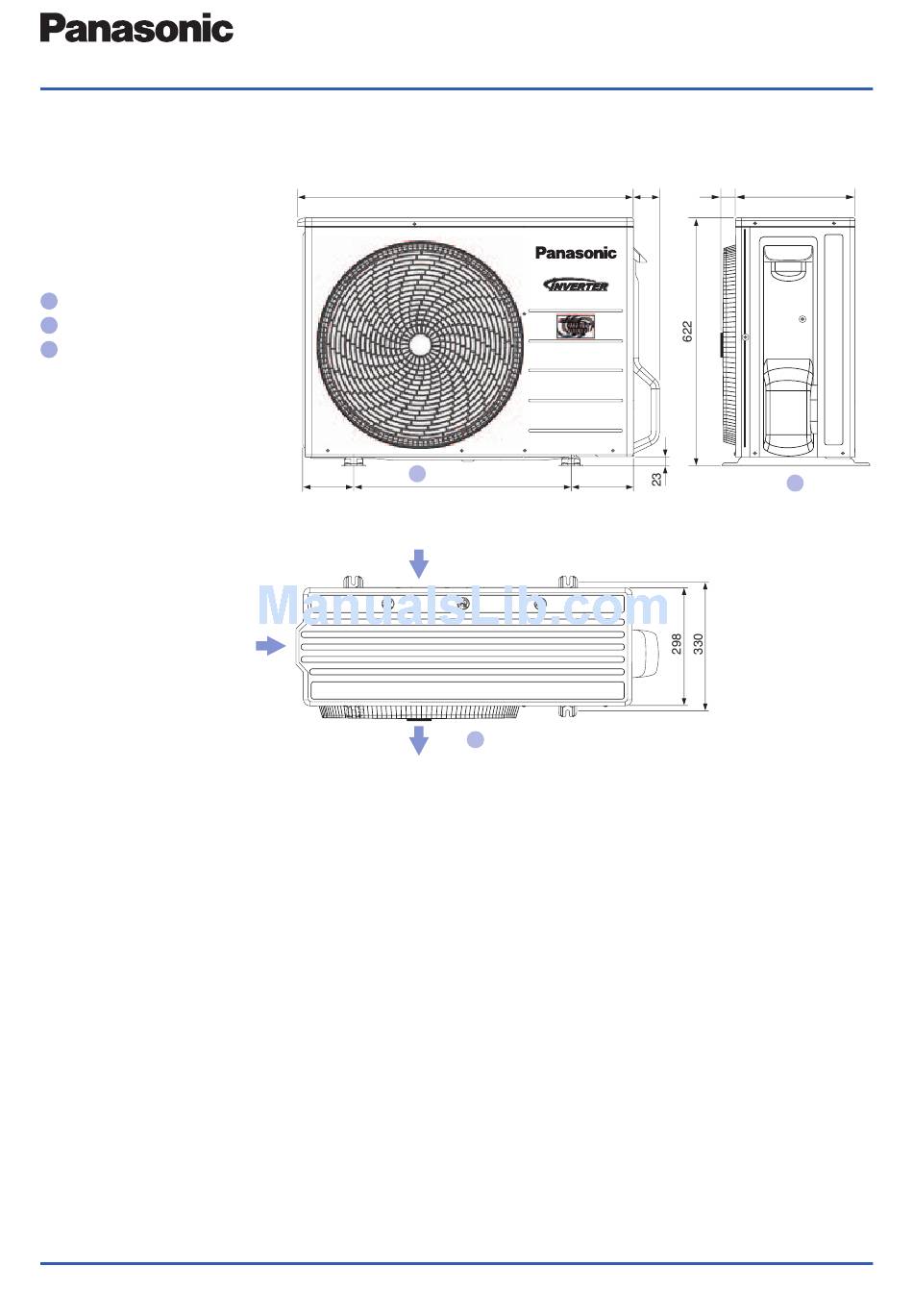

Dimensional drawing
for outdoor unit with
one fan (3 and 5 kW)
Front view
1
Side view
2
Bottom view
3
Aquarea air / water heat pump – design handbook 07 / 2014
846
1
124 540
Dimensions of outdoor unit with one fan (3 and 5 kW) in mm.
The air flow is depicted by arrows.
Products, functions and technical data
69
160
3
Bi-Bloc system
Outdoor unit
37 298
2
