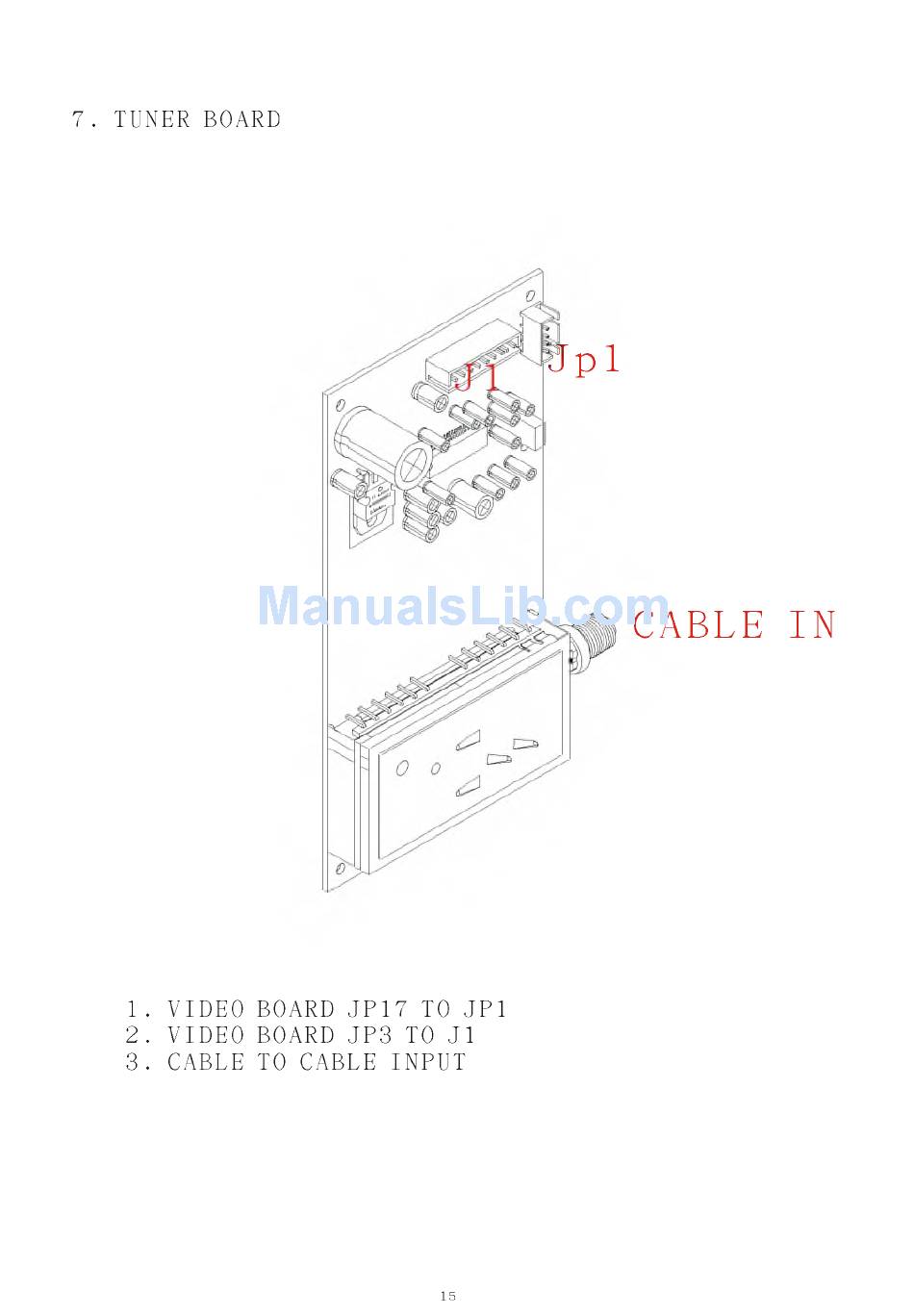

7 . T U N E R B O A R D

J p 1

C A B L E I N

1. V ID E O BOARD J P 1 7 TO J P 1

2 . V ID E O BOARD J P 3 TO J1

3 . CABLE TO CABLE IN P U T

15
