Akai PDP4247 Manual

Akai PDP4247 Manual

42-inch plasma monitor
Hide thumbs

Advertisement

Quick Links

Download this manual
Contents
Important
Information
........................................
1
General
Information
......................................
2
Safety Precautions
........................................
3
Specification
..............................................
4
OSD & Function
........................................
5-10
Peripheral
Equipment
Connecting ............................
11
Wall/Ceiling
Mounting
Kit ...................................
12
Accessories
..............................................
13
Remote
Controller
........................................
14
Cleaning
And Maintenance
Handy Tips ........................
15
Plasma
Monitor
PDP4247
F
PIC_O01 .TIF

Advertisement

loading
Need help?

Need help?

Do you have a question about the PDP4247 and is the answer not in the manual?

Questions and answers

Related Manuals for Akai PDP4247

Summary of Contents for Akai PDP4247

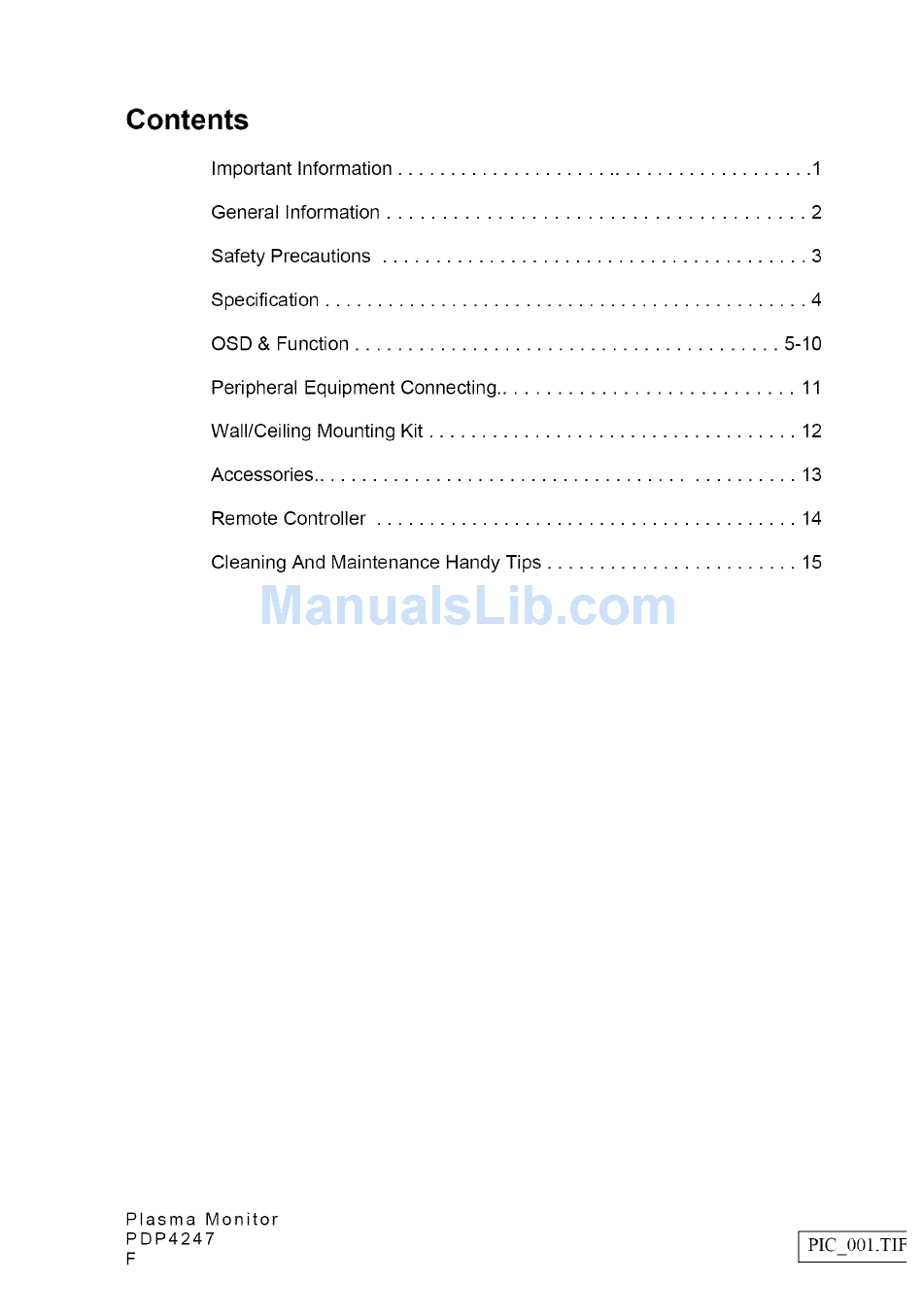

  • Page 1: Table Of Contents

    Contents Important Information ........General Information ........Safety Precautions ........Specification ..........OSD & Function ........5-10 Peripheral Equipment Connecting ......Wall/Ceiling Mounting Kit ........Accessories ..........Remote Controller ........Cleaning And Maintenance Handy Tips ......Plasma Monitor PDP4247 PIC_O01 .TIF...

  • Page 2: Important Information

    Important Information WARNING: 1. This is a Class A and Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 2. TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, NOT EXPOSE THIS PRODUCT...

  • Page 3: General Information

    General Information IMPORTANT: When the set is switched on, do not shift or move the set around. Sometimes may develop unevenness in color in some parts of the screen. This can be eliminated by switching off the set with the main power button (real site) and wait for 10 minutes before switching on again.

  • Page 4: Safety Precautions

    Safety Precautions Please read the following directions carefully before using the machine. PIC_O23.TIF Read each direction carefully, and retain for future reference. Please keep the manual well. Please follow the information to operate this machine. Clean the machine with a slightly damp soft cloth.

  • Page 5: Specification

    Specification Product name 42-inch Plasma Monitor (HDTV READY) 032.TIF Model PDP4247 General 100V-240V Power Supply 50Hz-60Hz Frequency Power < 280 W Consumption 1018.5mm x 618.5mmx 81 mm Dimension(WxHxD) Weight 35kg/77,8tbs Screen Size 1062mm/42' inches Display Characteristics 16:9 Aspect Ratio Native Display 852(H) x 480(V) Pixel Pixels...
  • Page 6 categorized as DTV. This specific model support up to 1080i resolution capability and is categorized as HDTV. • Functions To start the OSD function on your screen, please press the "Menu" key. Use the "Up" and "Down" key to switch the column, "Enter"...
  • Page 7 2. Use "+" and "-" key to adjust the Sharpness. Color: 1. Under the function of"Picture", please select "Color". 2. Use "+" and "-" key to adjust the Color. Tint: 1. Under the function of"Picture", please select "Tint". 2. Use "+" and "-" key to adjust the Tint. "Picture"...
  • Page 8 Phase: 1. Under the function of"Picture", please select "Phase". 2. Use "+" and "-" key to adjust the Phase. Note: It is strongly advised to set the Frequency level as it is when coming out of the factory. Inappropriate setting of Frequency may cause the pictures to have uneven...
  • Page 9 • "Source" Function: To access the function of Source, press "Menu" and select "Source". 1. Under the function of"Source", use "Up" and "Down" Key to change Input Source. Note: Please make sure that the input source connected on the back of the PDP is the same as selected here in the "Source".
  • Page 10 Note: This function is design to fix the burn-in image caused by displaying one still picture for too long. Simply switch the "White Pattern" ON for a few minutes. [PIP] Source: 1. Under the function of"Function", please select "[PIP] Source". 2.
  • Page 11 [OSD] Size: 1. Under the function of"Utility", please select "[OSD] Size". 2. Use "+" and "-" key to adjust the [OSD] Size. [OSD] H-Position: 1. Under the function of"Utility", please select "[OSD] H-Position". 2 Use "+" and "-" key to adjust the [OSD] Horizontal Position.

  • Page 12: Peripheral Equipment Connecting

    Peripheral Equipment Connecting Plasma Monitor PDP4247...
  • Page 13 Audio Input S Video Audio Power S,_4tch AQ 100 240 S Video Analog hlput hlput Fnput Input Input Output Component >_*i! AMPLIFIER Plasma Monitor PDP4247 PIC_O06.TIF...

  • Page 14: Wall/Ceiling Mounting Kit

    WALL/CEILING MOUNTING KIT: PLW adjusted angle PLW fixed position wall models PLC ceiling models Wall models (include ceiling plate) NOTICE: 1. The wall mounting kit should mount on concrete wall or on block wall. 2. The torque force of expansion bolts cannot be less than 20 kg-cm...

  • Page 15: Accessories

    Accessories REMOTE CONTROLLER • • Um-4 Batteryx2 • USER MANUAL • POWER CORD • TABLE STAND • PC D-SUB SIGNAL CORD (15Pin) • S-VIDEO CORD Plasma Monitor PDP4247 PIC_O08.TIF...

  • Page 16: Remote Controller

    REMOTE CONTROLLER ENGLISH (KEY) POWER ON/OFF BRIGHTNESS (BAt) CONTRAST (CON) COLOR (COL) TINT (TINT) SHARPNESS (SHR) S-VIDEO (S-V) COMPONENT (COM) FREEZE (FRE) ZOOM MENU CHANNEL ENTER DOWN VOLUME ZOOM POSITION (Z-P) *Please see notes below. MUTE SCAL PIP POSITION (P-P) *Please see notes below PIP OR enlarge/narrow display area At the top of left-hand side At the top of the middle...
  • Page 17 Cleanin,q And Maintenance Handy Tips In the event of problems with the display, check the following explanations before contacting your dealer for servicing. Problem Action Power does not turn ON. Check whether the power plug is securely inserted into the receptacle. Check cables for disconnection.
