Model
Digital-TV, RF, 4-HDMI, 1-Component, 1-A/V, 2-USB2.0(Media Play), D-SUB , LAN
ሪ
Brightness : 500cd/m
2
ሪ
Contrast Ratio : 4000:1
ሪ
Respons time : 6ms
ሪ
Dynamic contrast , Super-PVA
ሪ
PIP(in HDMI 1, 2, 3, 4, Component 1, PC Mode and Sub picture is available only in TV mode(DTV/ATV))
ሪ
Dolby Digital +, SRS theater
ሪ
Item
LCD Panel
Scanning Frequency
Display Colors
Maximum resolution
Input Signal
Input Sync Signal
Maximum Pixel Clock rate
Active Display
Horizontal/Vertical
AC power voltage & Frequency AC 110V ~ 220V, 60 Hz
Power Consumption
TV System
Environmental Considerations
Audio Spec.
Feature
Specifications
T400HW03 V3,AU40H33,8bit,40.0inch,16.7M,16:9,0 to +50,12V,AMVA3,CCFL,
120Hz,Super Clear
Horizontal : 120 kHz ~ 139.2 kHz (Automatic)
Vertical : 94 Hz ~ 122 Hz (Automatic)
1.07B
Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Analog 0.7 Vp-p ± 5% positive at 75Ω , internally terminated
H/V Separate, TTL, P. or N.
310MHz
885.6(H) X 498.15(V) (mm)
< 140 W (< 0.05W, stand by)
Tuning Frequency Synthesize
System NTSC
Sound NTSC-M
Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%, non-condensing
Storage temperature : -13˚F ~ 113˚F (-25˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%, non-condensing
MAX Internal Audio Output Power : Each 10W(Left/Right)
Equalizer : 5band
Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
UN40C6500VR(HD-Ready)
Description

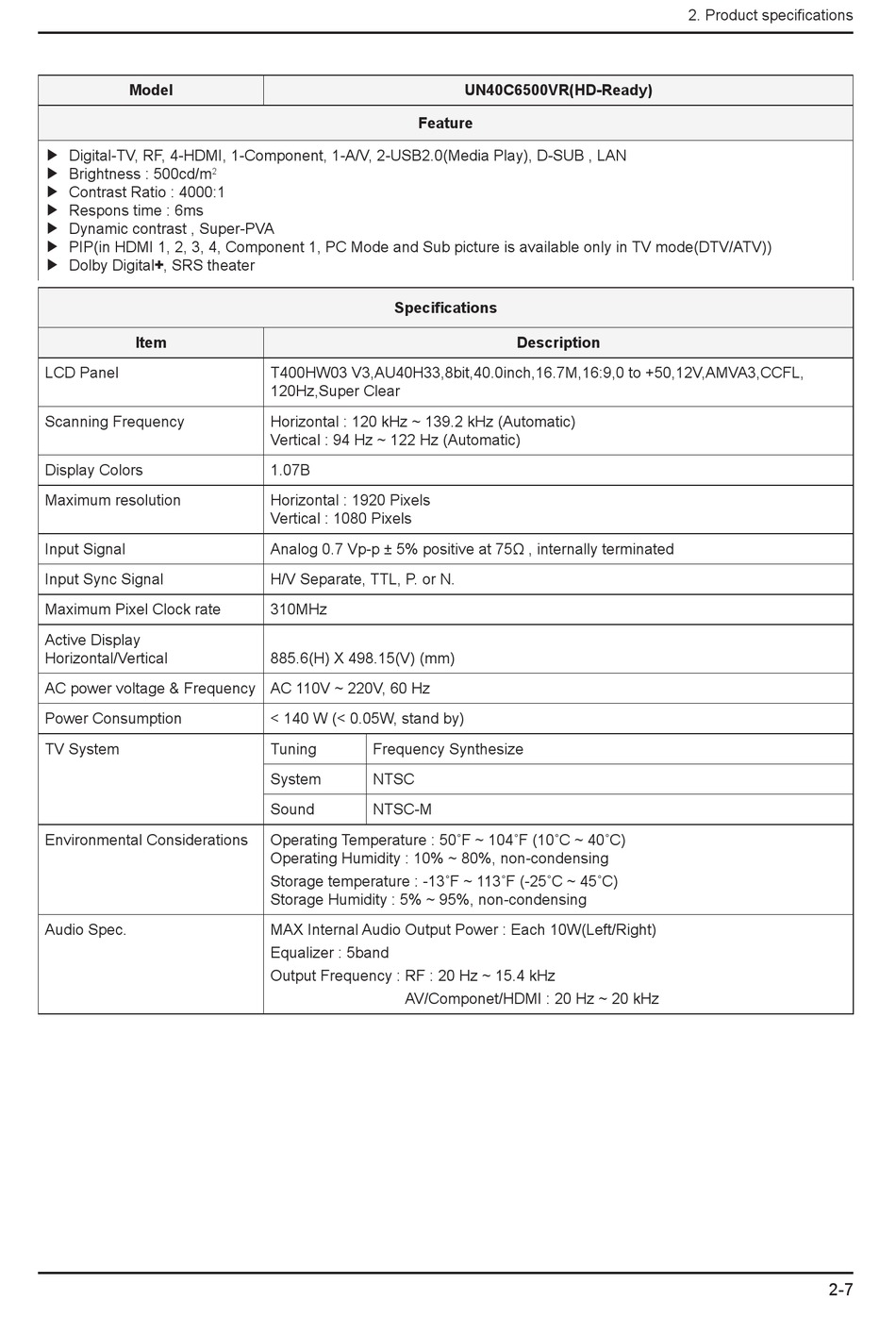

2. Product specifications
2-7
